- General Information
- Manufacturer
- Smart Audio Video Innovation
- Manufacturer Website Address
- http://www.smartavi.com
- Brand Name
- SmartAVI
- Product Type
- KVM Switchbox

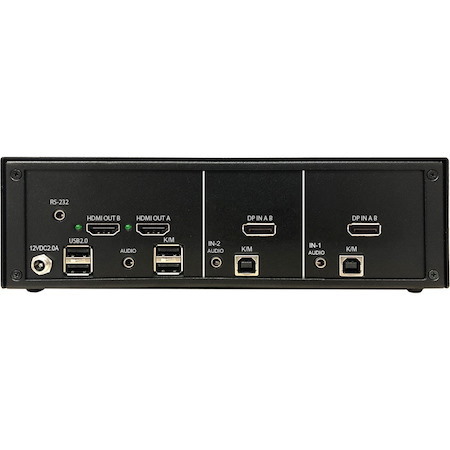

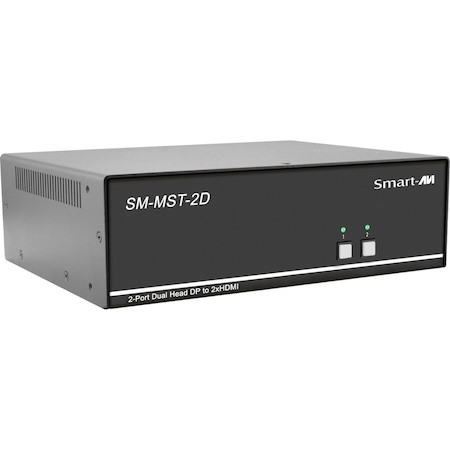

The SM-MST-2D converts a single DisplayPort 1.2 input signal to two separate HDMI Output connections through advanced MultiStream Transport technology. This allows a user to extend their display and achieve resolutions of up to 4K (3840 x 2160 @ 30 Hz) on each connected monitor from a single DP port.
The SM-MST-2D is a DisplayPort Standard Version 1.2a compliant device. The SM-MST-2D can control up to 2 computers with a single DP input connection each, and allows the support of two HDMI outputs in any combination.
- Technical Information
- Number of Computers Supported
- 2
- Number of Local Users Supported
- 2
- Video
- Maximum Video Resolution
- 3840 x 2160
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- DisplayPort
- Yes
- Number of USB Ports
- 6
- Number of HDMI Ports
- 2
- Number of DisplayPorts
- 2
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100V AC to 240V AC
- Physical Characteristics
- Height
- 2.6"
- Width
- 8.8"
- Depth
- 6.7"
- Weight (Approximate)
- 3.85 lb
- Miscellaneous
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- United States
