- General Information
- Manufacturer
- ATEN Technology, Inc
- Manufacturer Website Address
- http://www.aten.com/us/en/
- Brand Name
- ATEN
- Packaged Quantity
- 1
- Product Type
- KVM Switchbox

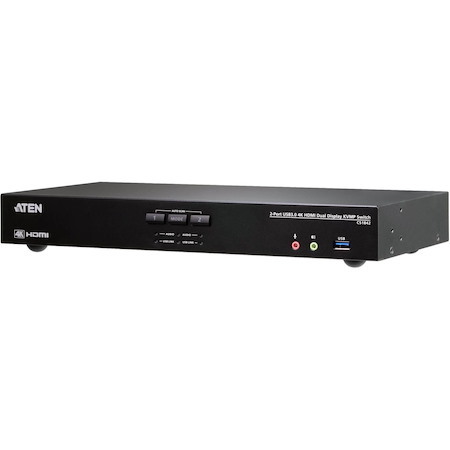

The ATEN CS1842 Dual Display KVMP™ Switch presents a valuable solution for desktop workstation with instant and effortless access to two HDMI interface computers from a single USB keyboard, mouse and two HDMI monitors; to meet users' needs, the CS1842 is compliant with HDMI 2.0 standard and supports superior video quality up to 4K DCI (4096 x 2160 @ 60Hz), offering the most stunning and vivid visuals.
In addition, with patented ATEN technology - Video DynaSync™, the CS1842 provides optimized display resolution and accelerates switching between systems. Considering immediate data sharing, a built-in USB 3.1 Gen 1 hub delivers data transfer rates up to 5 Gbps, allowing you to speed up operations and share USB peripherals efficiently.
For requirements of more displays to monitor, users can daisy-chain two CS1842 for up to four displays to multitask easily and process tremendous information. Besides, a remote port selector is available for quick and streamlined port selection apart from pushbuttons, hotkeys and mouse port switching.
As a feature-rich KVM switch, the CS1842 is especially suitable for users who need to perform multiple tasks smoothly at CGI work, graphic design, video post production, and CAD engineering.
- Technical Information
- Number of Computers Supported
- 2
- Number of Local Users Supported
- 2
- Video
- Maximum Video Resolution
- 4096 x 2160

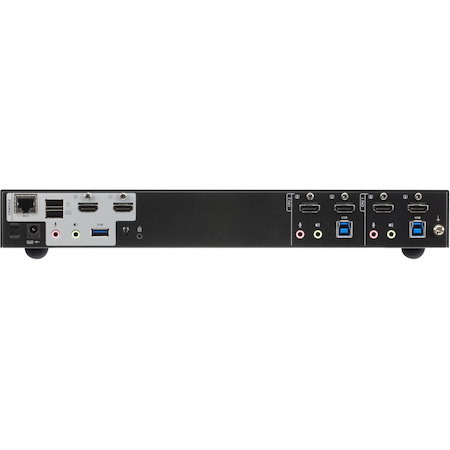

- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- HDMI
- Yes
- Number of Network (RJ-45) Ports
- 1
- Number of USB Ports
- 6
- Number of HDMI Ports
- 6
- Physical Characteristics
- Height
- 1.7"
- Width
- 13.2"
- Depth
- 6.3"
- Weight (Approximate)
- 3.53 lb
- Miscellaneous
- Package Contents
- 2-Port USB 3.0 4K HDMI Dual Display KVMP Switch
- 4 x HDMI 2.0 Cables
- 2 x USB 3.0 Cables
- 2 x Speaker Cables
- 2 x Microphone Cables
- 1 x Power Adapter
- 1 x Remote Port Selector
- 1 x User Instructions
- Country of Origin
- Taiwan
