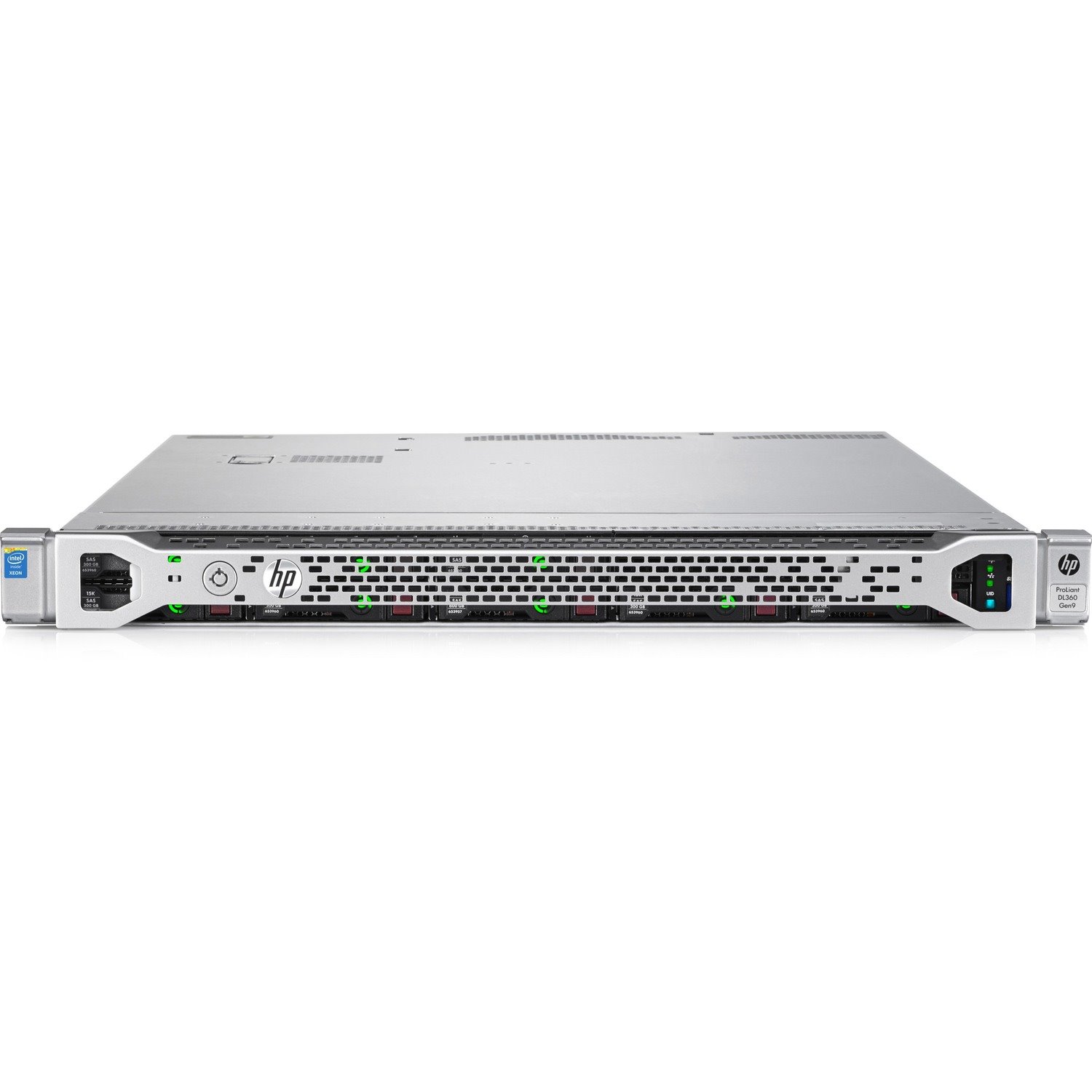

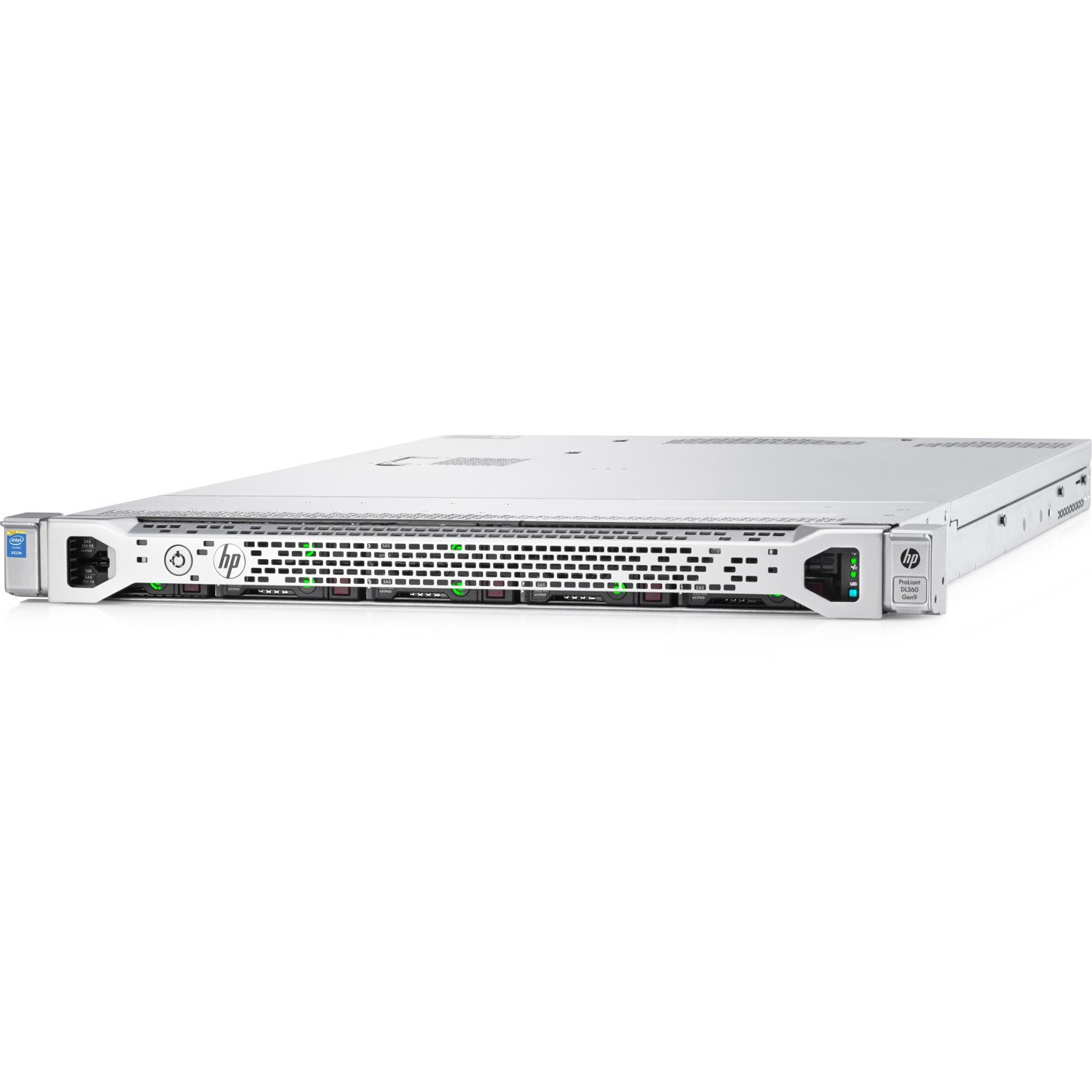

- General Information
- Manufacturer
- HPE-IMSourcing
- Manufacturer Website Address
- http://www.imsourcing.com
- Brand Name
- HPE-IMSourcing
- Product Line
- ProLiant
- Product Series
- DL360 G9
- Product Type
- Server
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Type
- Xeon
- Processor Model
- E5-2690 v3
- Processor Core
- Dodeca-core (12 Core)
- Processor Speed
- 2.60 GHz
- Maximum Turbo Speed
- 3.50 GHz
- Cache
- 30 MB
- QuickPath Interconnect
- 9.60 GT/s
- 64-bit Processing
- Yes
- Hyper-Threading
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C610
- Memory
- Standard Memory
- 32 GB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-2133/PC4-17000
- Total Number of Memory Slots
- 24
- Memory Card Reader
- Yes
- Memory Card Supported
- microSD
- Storage
- Total Hard Drive Capacity
- No
- Controllers
- Controller Type
- 12Gb/s SAS
- RAID Supported
- Yes
- RAID Levels
- 0, 1, 5
- I/O Expansions
- Number of Internal 2.5" Bays
- 8
- Number of PCI Express x8 Slots
- 1
- Number of PCI Express x16 Slots
- 1
- Display & Graphics
- Graphics Controller Model
- G200
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Input Devices
- Keyboard
- Yes
- Pointing Device Type
- Mouse
- Interfaces/Ports
- Total Number of USB Ports
- 5
- Number of USB 3.0 Ports
- 5
- Network (RJ-45)
- Yes
- Remote Management
- Yes
- Operating System
- Operating System
- No
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 2
- Plug/Connector Type
- C13
- Maximum Power Supply Wattage
- 800 W
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.1"
- Depth
- 27.5"
- Weight (Approximate)
- 33.75 lb
- Miscellaneous
- Compatibility
- Microsoft Windows Server
- Canonical Ubuntu
- Red Hat Enterprise Linux (RHEL)
- SUSE Linux Enterprise Server (SLES)
- Oracle Solaris
- VMware
- Citrix XenServe
- Certifications & Standards
- ACPI 2.0b Compliant
- PCIe 3.0
- PXE Support
- WOL Support
- Microsoft Logo certifications
- FCC Rating Class A
- CISPR 22
- EN55022
- EN55024
- FCC CFR 47
- ICES-003
- CNS13438
- GB9254
- K22
- K24
- EN 61000-3-2
- EN 61000-3-3
- EN 60950-1
- IEC 60950-1
- ASHRAE A3
- ASHRAE A4
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
