- General Information
- Manufacturer
- HPI SOURCING - NEW
- Brand Name
- HPI SOURCING - NEW
- Product Line
- Elite Mini
- Product Series
- 600 G9
- Product Type
- Desktop Computer
- Processor
- Processor Manufacturer
- Intel
- Processor Type
- Core i7
- Processor Generation
- 13th Gen
- Processor Model
- i7-13700T
- Processor Core
- Hexadeca-core (16 Core)
- Processor Threads
- 24
- Maximum Turbo Speed
- 4.90 GHz
- L3 Cache
- 30 MB
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Q670
- Memory
- Standard Memory
- 16 GB
- Maximum Memory Supported
- 64 GB
- Memory Technology
- DDR5 SDRAM
- Memory Configuration
- 2 x 8GB
- Number of Occupied Memory Slots
- 2
- Storage
- Drive Type
- SSD
- Total Solid State Drive Capacity
- 256 GB
- Solid State Drive Interface
- PCI Express NVMe
- SSD Form Factor
- M.2
- Display & Graphics
- Graphics Controller Manufacturer
- Intel
- Graphics Controller Model
- UHD Graphics 770
- Graphics Memory Technology
- DDR5 SDRAM
- Graphics Memory Accessibility
- Shared
- Network & Communication
- LAN Manufacturer
- Intel
- LAN Model
- I219-LM
- Ethernet Technology
- Gigabit Ethernet
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11ax
- Bluetooth
- Yes

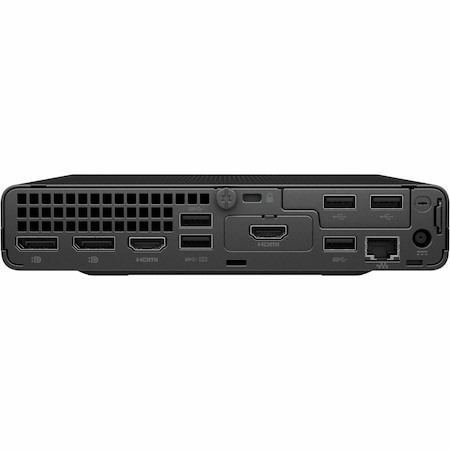

- Interfaces/Ports
- HDMI (Rear)
- Yes
- Total Number of USB Ports
- 6
- Number of USB 3.2 Gen 2 Ports
- 5
- Number of USB 3.2 Gen 2x2 Type-C Ports
- 1
- Number Of Ethernet Ports
- 1
- Number of DisplayPort Outputs (Rear)
- 2
- DisplayPort (Rear)
- Yes
- Optional Ports
Details regarding optional ports aggregated from the information available for this product's family/series
(1) Flex Port 1, choice of:
- HDMI 2.1
- VGA
- DisplayPort™ 1.4a with HBR3
- Fiber NIC 1Gbps
- Serial
- Thunderbolt 3.0 with USB 4.0
- Type-C™ SuperSpeed USB 10Gbps signaling rate port w/ DisplayPort™ Alt Mode and 100W Power Intake
- Intel® I225-LM 2.5 Gigabit Network Connection LOM (non-vPro®)
- Dual Type A SuperSpeed USB 5Gbps signaling rate port
(1) Flex Port 2 , choice of:
- Dual Type-A Hi-Speed USB 480Mbps signaling rate port
- Serial
- Second external antenna
- Operating System
- Operating System Platform
- Windows
- Operating System
- Windows 11 Pro
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Maximum Power Supply Wattage
- 90 W
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Mini PC
- Height
- 1.3"
- Width
- 7"
- Depth
- 6.9"
- Weight (Approximate)
- 3.13 lb
- Miscellaneous
- Package Contents
- Elite Mini 600 G9 Desktop PC
- Keyboard
- Mouse
- AC Adapter
- Features
- Tool-less Access
- Security Slot
- Dust Filter
- Low Halogen
- Energy Star
- Yes
- TCO Certified
- Yes
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool Climate+ (EPEAT Climate+)
- Energy Efficiency Certification
- China Energy Conservation Program (CECP)
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
