- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Series
- 3010
- Product Type
- Layer 3 Switch

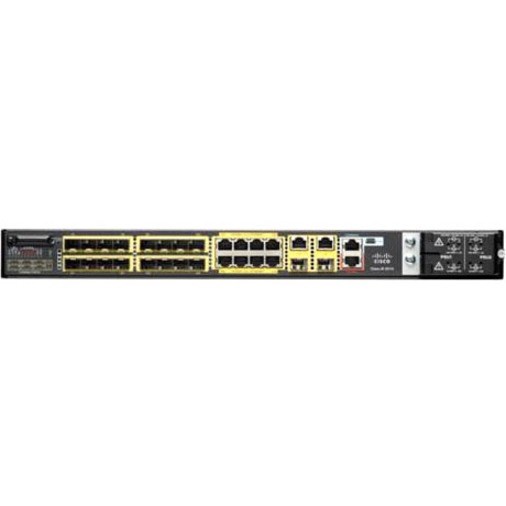

The Cisco® Industrial Ethernet 3010 Series (IE 3010) is a family of rack-mount L2/L3 switches provide fiber SFP layer 3 aggregation and Power over Ethernet (PoE) configurations in the harsh industrial environment. It brings Cisco's leadership in switching to industrial Ethernet application with innovative features, robust security, and end-to-end Ethernet in the industrial network.
The Cisco IE 3010 Series features:
- Industrial design and compliance
- Tools for easy deployment, management, and replacement
- Market leading resiliency and availability features
- Network performance for the most demanding applications
- Network security based on open standards
- Integration of IT and industrial networks
- Warranty
- Limited Warranty
- 5 Year
- Interfaces/Ports
- Total Number of Network Ports
- 10
- Token Ring Port
- No
- LRE Port
- No
- Uplink Port
- Yes
- Management Port
- Yes
- USB
- Yes
- Number of PoE (RJ-45) Ports
- 8
- Stack Port
- No
- Number of Network (RJ-45) Ports
- 2
- Port/Expansion Slot Details
- 8 x Fast Ethernet Network
- 2 x Gigabit Ethernet Uplink
- 16 x Fast Ethernet Expansion Slot
- 2 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 10/100/1000Base-T
- 10/100Base-TX
- 100Base-FX
- 1000Base-X
- I/O Expansions
- Total Number of Expansion Slots
- 18.0
- Expansion Slot Type
- SFP
- Shared SFP Slot
- Yes
- Number of SFP Slots
- 18
- Network & Communication
- Layer Supported
- 3
- Management & Protocols
- Manageable
- Yes
- Management
- DHCP
- QoS
- SNMP versions 1, 2, and 3
- HTTPS
- VLAN
- Web Based Management
- Memory
- Standard Memory
- 256 MB
- Memory Technology
- DDR2 SDRAM
- Flash Memory
- 1 GB
- Reliability
- MTBF
- 230112 Hour
- Power Description
- PoE (RJ-45) Port
- No
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Desktop
- Height
- 1.8"
- Width
- 17.5"
- Depth
- 14"
- Weight (Approximate)
- 10 lb
- Miscellaneous
- Certifications & Standards
IEEE Standards:
- 802.1s
- 802.1w
- 802.1x
- 802.3ad
- 802.3ah
- 802.1ag
- 802.3x Full Duplex
- 802.1D Spanning Tree Protocol
- 802.1p CoS classification
- 802.1Q VLAN
- 802.3 10BASE-T
- 802.3u 100BASE-T
- 802.3ab 1000BASE-T
- 802.3z 1000BASE-X
- 802.3af (IE-3010-16S-8PC)
- 802.1AB
EMC:
- ?IEC61000-4-2 [Criteria A]
- ?IEC61000-4-3/ENV50204 [Criteria A]
- ?IEC61000-4-4 [Criteria A]
- ?IEC61000-4-5 [Criteria A]
- ?IEC61000-4-6 [Criteria A]
- ?FCC Part 15 Class A
- ?EN 55022: (CISPR22)
- ?EN 55024: (CISPR24)
- ?VCCI Class A
- ?AS/NZS 3548 Class A
- ?CE Mark
- ?CNS 13438 Class A
- ?KCC
- ?EN 300 386
- ?EN 61000-3-2
- ?EN 61000-3-3
- ?EN 61000-6-2
- ?EN 61000-6-4
- ?EN 61131-2
- ?EN 61326-1
- ?CISPR11
- Country of Origin
- China
