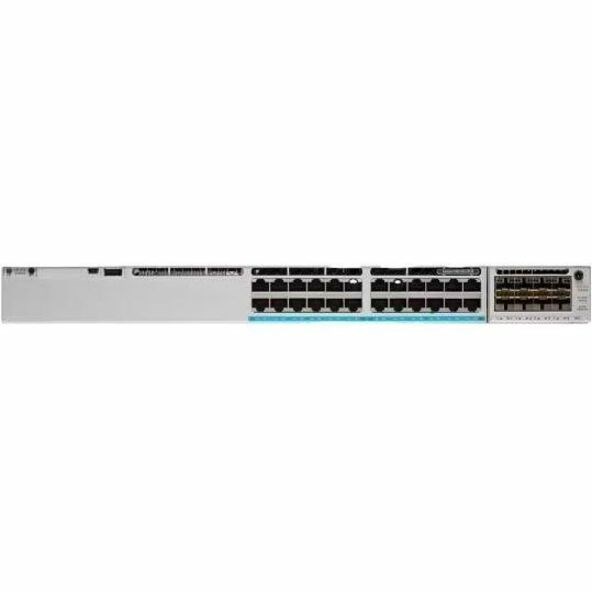

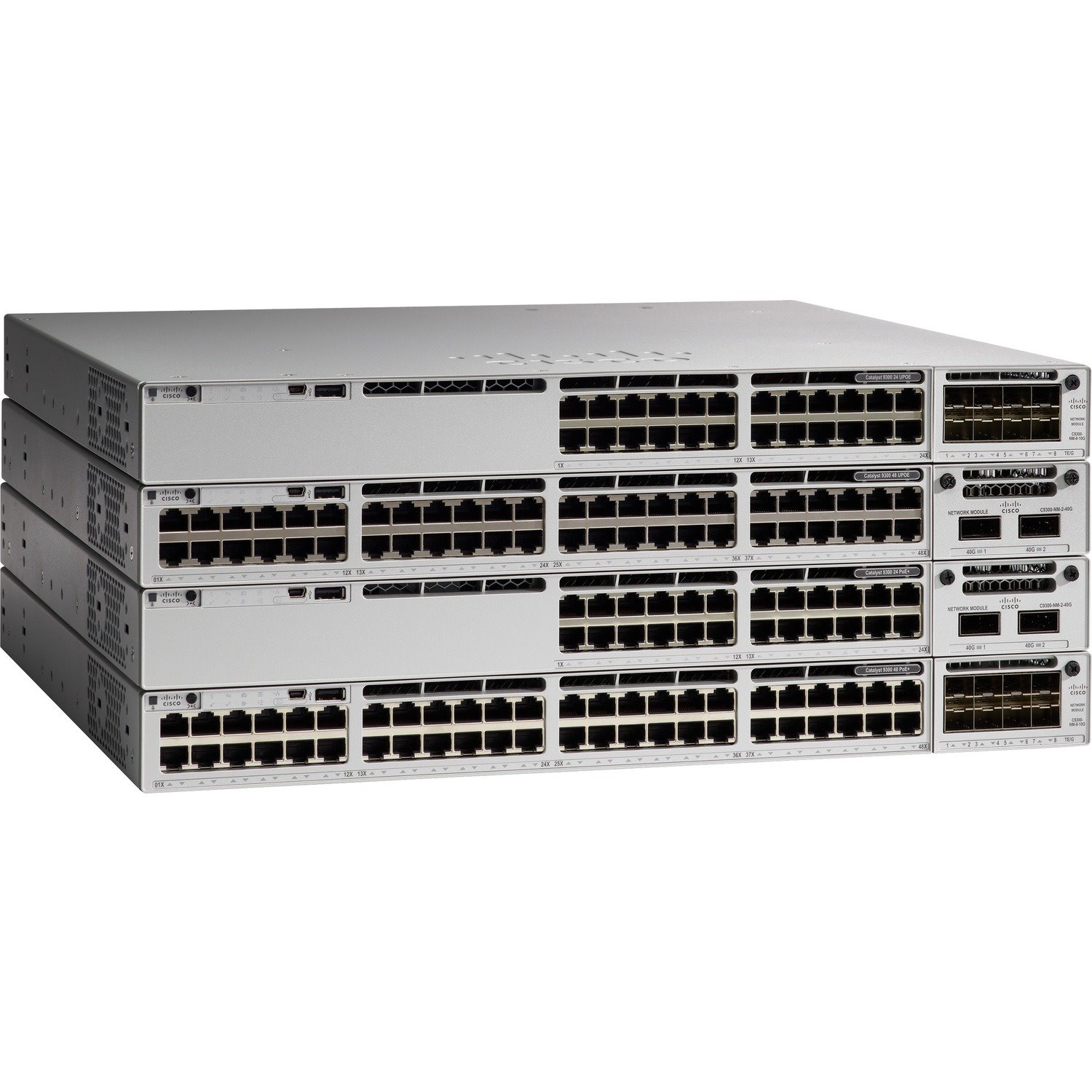

Cisco Catalyst 9300 Series switches are Cisco's lead stackable enterprise access switching platform and as part of the Catalyst 9000 family, are built to transform your network to handle a hybrid world where the workplace is anywhere, endpoints could be anything, and applications are hosted all over the place.
The Catalyst 9300 Series, including the new Catalyst 9300X models, continues to shape the future with continued innovation that helps you reimagine connections, reinforce security and redefine the experience for your hybrid workforce big and small. With Catalyst 9300 switches, you choose how you want to manage your network - on-premise, virtual or from the cloud.
- General Information
- Manufacturer
- Cisco Systems, Inc
- Manufacturer Website Address
- http://www.cisco.com
- Brand Name
- Cisco
- Product Line
- Catalyst
- Product Series
- 9300
- Product Type
- Layer 3 Switch
- Interfaces/Ports
- Total Number of Network Ports
- 24
- Uplink Port
- Yes
- Modular
- Yes
- Stack Port
- Yes
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 24 x 100/1000/2.5G/5G/10GBase-T RJ-45 UPOE Network Ports
- Media & Performance
- Media Type Supported
- Twisted Pair
- Ethernet Technology
- Fast Ethernet
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 100/1000Base-T
- 2.5GBase-T
- 5GBase-T
- 10GBase-T
- Maximum Data Transfer Rate
- 1.25 GB/s
- Network & Communication
- Layer Supported
- 3
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.1D
- IEEE 802.1Q
- IEEE 802.3ab
- IEEE 802.1p
- IEEE 802.3af
- IEEE 802.3x
- IEEE 802.3ad
- IEEE 802.1w
- IEEE 802.1x
- IEEE 802.1s
- IEEE 802.3at
- Management & Protocols
- Manageable
- Yes
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 560 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Height
- 1.7"
- Width
- 17.5"
- Depth
- 17.1"
- Weight (Approximate)
- 18.19 lb
- Miscellaneous
- Application/Usage
- Network
