- General Information
- Manufacturer
- The Bosch Group
- Manufacturer Website Address
- http://www.bosch.com
- Brand Name
- Bosch
- Product Series
- LBB
- Packaged Quantity
- 1
- Product Type
- Microphone

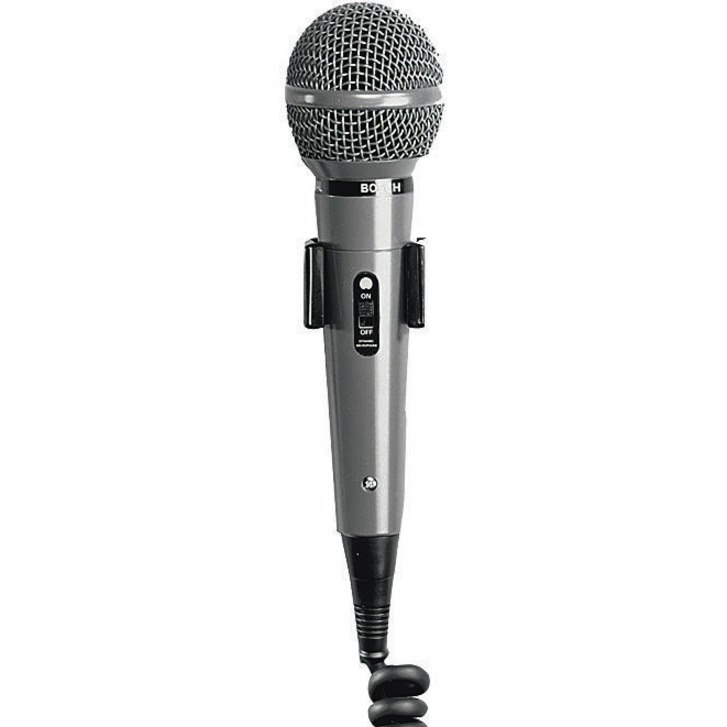

This unidirectional handheld microphone provides cost-effective, high-quality speech intelligibility and is fully compatible with other public address equipment.
It is based on a dynamic transducer element in a sturdy housing with shielding against wind and wind bursts (pops). The microphone has excellent cardioid directivity, greatly reducing acoustic feedback.
The microphone is intended for public address and sound reinforcement applications such as in leisure centers, assembly halls, and shops.
Functions
The LBB 9099/10 microphone features an on/off slide- switch with electrically isolated contacts for remote control switching, if required. This feature can switch off background music automatically, or sound announcement chimes when the microphone is activated.
- Technical Information
- Connectivity Technology
- Wired
- Cable Length
- 3.94 ft
- Minimum Frequency Response
- 100 Hz
- Maximum Frequency Response
- 13 kHz
- Impedance
- 600 Ohm
- Microphone
- Microphone Technology
- Dynamic
- Polar Pattern
- Uni-directional
- Microphone Type
- Hanging
- Microphone Sensitivity
- -4 dB
- Controls/Indicators
- Microphone Controls
- On/Off
- Interfaces/Ports
- Host Interface
- DIN
- Physical Characteristics
- Color Family
- Gray
- Product Color
- Dark Gray
- Rugged
- Yes
- Depth
- 2.1"
- Length
- 8.7"
- Weight (Approximate)
- 14.82 oz
- Miscellaneous
- Package Contents
- LBB 9099/10 Unidirectional Handheld Microphone
- 1 x Wall-mounting bracket
- Additional Information
- Sensitivity : 2 mV/Pa ±4 dB
- Switch : On/off with remote control contact
- Connector : 5-pin 180° DIN (lockable)
- Operating temperature : -10 °C to +55 °C (+14 °F to +131 °F)
- Storage and transport temperature : -40 °C to +70 °C (-40 °F to +158 °F)
- Relative humidity : <95%
- Certifications & Standards
- CE
