- General Information
- Manufacturer
- The Bosch Group
- Manufacturer Website Address
- http://www.bosch.com
- Brand Name
- Bosch
- Product Series
- LBB
- Packaged Quantity
- 1
- Product Type
- Microphone

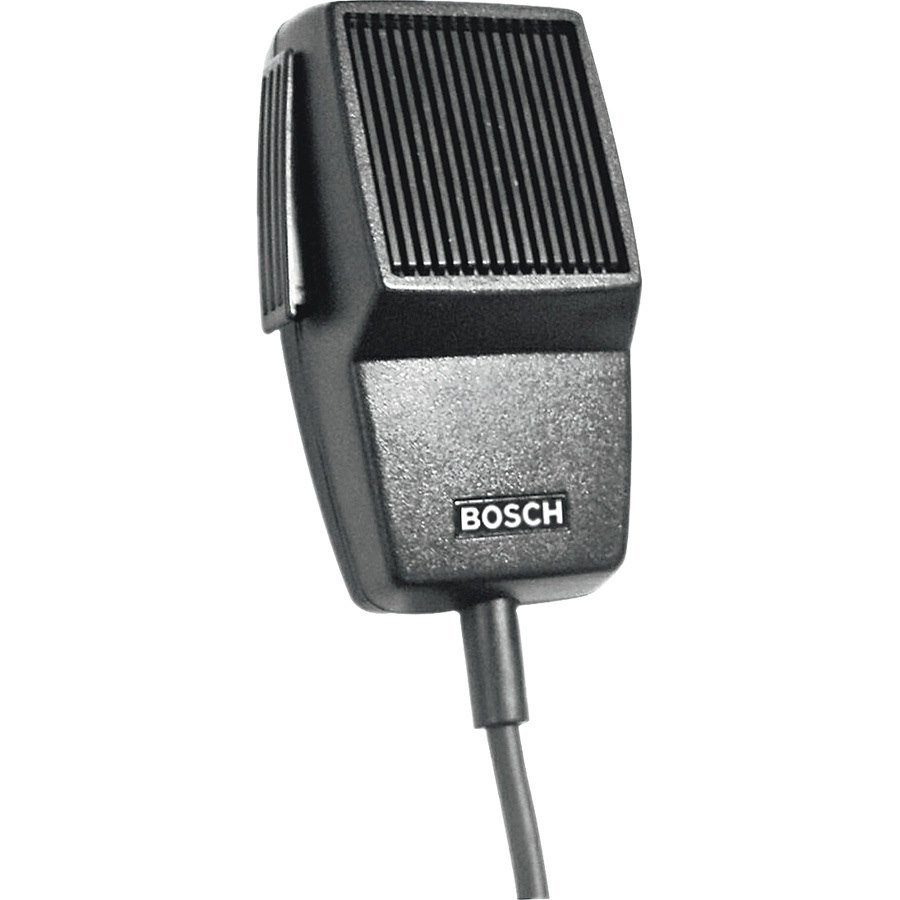

The LBB 9080/00 handheld microphone is designed for close talking applications, and is ideal for short announcements.
Functions
The microphone has a press to talk (PTT) switch on the side. The switch has additional contacts for remote control functions, if required.
- Technical Information
- Connectivity Technology
- Wired
- Cable Length
- 3.94 ft
- Minimum Frequency Response
- 280 Hz
- Maximum Frequency Response
- 14 kHz
- Impedance
- 500 Ohm
- Microphone
- Microphone Technology
- Dynamic
- Polar Pattern
- Omni-directional
- Microphone Type
- Handheld
- Controls/Indicators
- Microphone Controls
- Push-to-talk
- Interfaces/Ports
- Host Interface
- DIN
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Rugged
- Yes
- Height
- 4.1"
- Width
- 2.4"
- Depth
- 1.7"
- Weight (Approximate)
- 6.70 oz
- Miscellaneous
- Package Contents
- LBB 9080/00 Omnidirectional Dynamic Handheld Microphone
- 1 x Wall-Mounting Bracket
- Additional Information
- Sensitivity x 3.1 mV/Pa ±4 dB
- Switch x On/off with remote control contact
- Cable type x 2-core + 2-core screened (coiled)
- Connector x 5-pin 180° DIN (lockable)
- Operating temperature x -25 °C to +55 °C (-13 °F to +131 °F)
- Storage and transport temperature x -40 °C to +70 °C (-40 °F to +158 °F)
- Relative humidity x <95%
- Certifications & Standards
- CE
