- General Information
- Manufacturer
- Yamaha Corporation
- Manufacturer Website Address
- http://www.yamaha.com
- Brand Name
- Yamaha
- Product Series
- SWX
- Product Type
- Ethernet Switch
10-Gigabit/Multi-Gigabit switches for flexible deployment in high-capacity networks Enhancing backbone networks has become crucial for businesses, concert halls, and other installations due to the rising demand for high-quality video and audio with low latency. By introducing switches that support 10-Gigabit/Multi-Gigabit Ethernet, our new lineup creates an ideal environment for backbone networks requiring high speeds, capacities, and capabilities. These new L3 intelligent switches support systems handling increased media traffic across multiple segments, while our L2 switches are perfect for transmitting single-segment audio and video media. Like our other existing products, this expanded lineup is also supported by Yamaha LAN Monitor and includes a range of features optimized for Dante systems.
- Interfaces/Ports
- Total Number of Network Ports
- 12
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 12 x 1/2.5/5/10BASE-T Gigabit Ethernet PoE++ RJ-45 Network Port
- 4 x Gigabit Ethernet SFP+ Expansion Slot
- 1 x Mini-USB Console Port
- 1 x RJ-45 Console Port
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- 2.5 Gigabit Ethernet
- 5 Gigabit Ethernet
- 10 Gigabit Ethernet
- Network Technology
- 2.5GBase-T
- 5GBase-T
- 10GBase-T
- 1000Base-X
- 100Base-TX
- 1000Base-T
- 1000Base-SX/LX
- 10GBase-SR/LR
- Maximum Data Transfer Rate
- 1.25 GB/s
- I/O Expansions
- Total Number of Expansion Slots
- 4
- Expansion Slot Type
- SFP+
- Number of SFP+ Slots
- 4
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3bt
- IEEE 802.3
- IEEE 802.3z
- IEEE 802.3ae
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 250 W
- Input Voltage
- 120 V AC
- 230 V AC
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- Power Supply
- AC
- Power Consumption
- 385 W
- Physical Characteristics
- Compatible Rack Unit
- 1U
- Form Factor
- Rack-mountable
- Wall Mountable
- Height
- 1.7"
- Width
- 13"
- Depth
- 9.8"
- Weight (Approximate)
- 6.39 lb
- Miscellaneous
- Package Contents

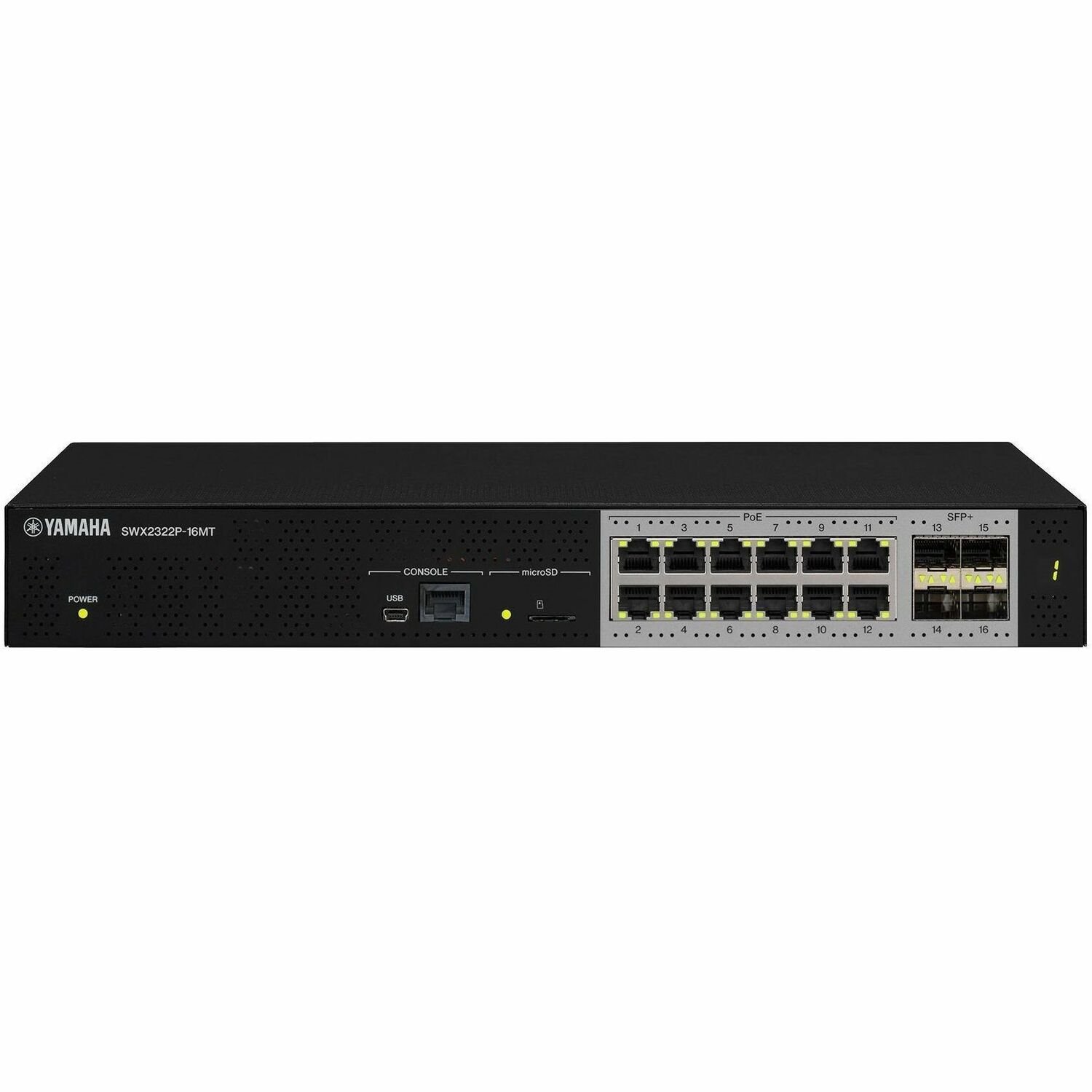

- SWX2322P-16MT Ethernet Switch
- Rack-mount Brackets
- Manual (Read This First)
- Power Cord
- Power Cord Clamp
- Dust Covers
- Legs
- 19-inch Rack Mount Hardware
- Wall Mount Hardware and Screws
- Application/Usage
- Network
- Business
- Traffic
- Server
