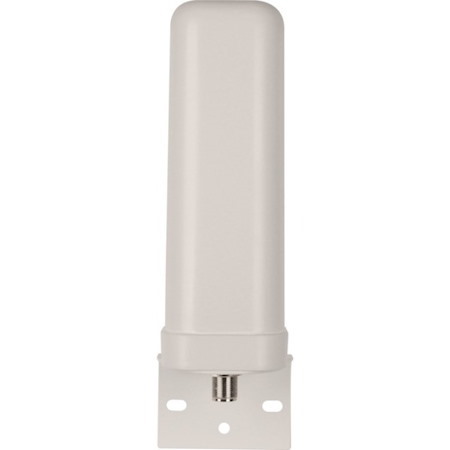

This 7.5" tall, white 4G Outdoor Building Cellular Antenna is wind-rated to 130MPH. It is a 50-Ohm Omni-Directional antenna with a 90 degree mounting plate for poles up to 1.5" diameter; wall hardware is also included. Antenna features up to +4.0dB gain on all cellular frequencies. Features an N-Female coax connector and works with all weBoost and WilsonPro 50-Ohm Residential and Commercial Cellular Boosters. Vertical polarized, this omni antenna is waterproof with operating temperature of -40 to +149 degrees F. Made from UV-resistant ABS. Backed by a two-year warranty.
- General Information
- Manufacturer
- Wilson Electronics
- Manufacturer Website Address
- http://www.weboost.com
- Brand Name
- Wilson
- Product Type
- Antenna
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Directivity
- Omni-directional
- Operating Frequency Range
- 700 MHz to 800 MHz
- 824 MHz to 894 MHz
- 880 MHz to 960 MHz
- 1710 MHz to 1880 MHz
- 1850 MHz to 1990 MHz
- 2110 MHz to 2170 MHz
- Antenna Gain
- 4 dB
- Interfaces/Ports
- Connector Type
- N-connector
- Physical Characteristics
- Height
- 7.48"
- Width
- 2.60"
- Depth
- 2.60"
- Form Factor
- Mast/Pole/Wall
- Weight (Approximate)
- 12.35 oz
- Miscellaneous
- Application/Usage
- Cellular Network
- Outdoor
- Package Contents
- 4G Omni-Directional Building Cellular Antenna (50 ohm)
- Multi-mount Bracket for mast or wall
