- General Information
- Manufacturer
- Vivotek, Inc
- Manufacturer Website Address
- http://www.vivotek.com
- Brand Name
- Vivotek
- Product Series
- V
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 36 Month
- Technical Information
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 98.43 ft
- Night Vision Type
- Infrared
- Number of IR LEDs
- 4
- Display & Graphics
- Image Sensor Type
- CMOS
- Maximum Illumination
- 0 lux
- Color Supported
- Color
- Field of View
- 95° ~ 41° (Horizontal), 69° ~ 31° (Vertical), 127° ~ 51° (Diagonal)
- Effective Camera Resolution
- 5 Megapixel
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- Maximum Video Resolution
- 2560 x 1920
- Maximum Frame Rate
- 60 fps
- Lens
- Lens Type
- Fixed
- Minimum Focal Length
- 2.80 mm
- Maximum Focal Length
- 10 mm
- Lens Included
- Yes
- Minimum Aperture
- f/1.8
- Maximum Aperture
- f/2.74
- Optical Zoom
- 3.6x
- Exposure
- Shortest Shutter Speed
- 1/32000 Second
- Longest Shutter Speed
- 1/5 Second
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Storage
- Storage Type
- Memory Card
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Mount Type
- Conduit Mount
- Bracket Mount
- Form Factor
- Dome
- Durability
- Vandal Proof
- Weather Proof
- Diameter
- 5.1"
- Weight (Approximate)
- 1.34 lb
- Environmental Conditions
- Minimum Operating Temperature
- -40°F (-40°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Maximum Operating Humidity
- 98%
- Miscellaneous
- Features
- Privacy Masking
- Built-in Microphone
- Audio Compression
- Password Protection
- Motion Detection
- Human Detection
- Cross Line Detection
- Face Detection
- Audio Detection
- Shock Detection
- Wide Dynamic Range
- Day/Night
- SD Card Local Storage
- White Balance
- Defog
- 3D Noise Reduction
- Electronic Image Stabilization
- Back Light Compensation (BLC)
- Highlight Compensation (HLC)
- Gain Control
- Indoor/Outdoor
- Outdoor
- Package Contents

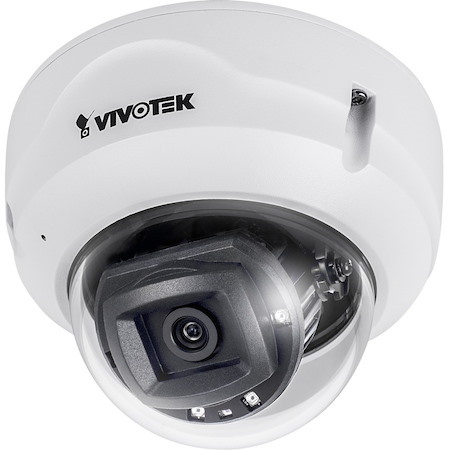

- FD9389-EHTV-v2 Fixed Dome Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
- Impact Protection Rating
- IK10
- Ingress Protection Rating
- IP66
- TAA Compliant
- Yes
