Key Features
- H.265 Compression Technology
- 20 fps @ 2560x1920 (WDR Pro on)
- SNV (Supreme Night Visibility) for Low Light Conditions
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart Stream III to Optimize Bandwidth Efficiency
- Built-in IR Illuminators, Effective up to 30 Meters
- Trend Micro IoT Security
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
Overview

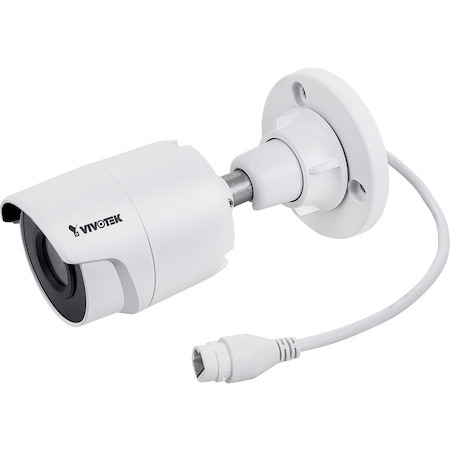

VIVOTEK's IB9380-H is a H.265 outdoor bullet network camera equipped with a 5-Megapixel sensor, enabling resolution of 2560x1920 at 20 fps. Featuring VIVOTEK SNV and WDR Pro technology, the IB9380-H is capable of capturing high-quality imagery in both high contrast and low light environments.
The IB9380-H deploys a 3.6mm lens and is equipped with IR illuminators with a 30-meter effective range for better night visibility. Further, to provide reliable coverage in harsh outdoor environments, the IB9380-H is encased in IP66 and IK10 housing.
By employing VIVOTEK's Smart Stream III technology and H.265 codec support, the IB9380-H is able to reduce bandwidth usage by up to 90% while maintaining supreme image quality. Additionally, the VADP (VIVOTEK Application Development Platform) allows users to customize applications for the ever-expanding number of user scenarios in a diversifying surveillance market.
- General Information
- Manufacturer
- Vivotek, Inc
- Manufacturer Website Address
- http://www.vivotek.com
- Brand Name
- Vivotek
- Product Series
- C
- Product Type
- Network Camera
- Warranty
- Limited Warranty
- 24 Month
- Technical Information
- Recording Formats
- HD
- HD Recording
- Yes
- Night Vision
- Yes
- Night Vision Distance
- 98.43 ft
- Number of IR LEDs
- 2
- Display & Graphics
- Image Sensor Type
- CMOS
- Color Supported
- Color
- Monochrome
- Effective Camera Resolution
- 5 Megapixel
- Video
- Video Formats
- H.265
- H.264
- MJPEG
- Maximum Video Resolution
- 2560 x 1920
- Maximum Frame Rate
- 20 fps
- Lens
- Lens Type
- Fixed
- Maximum Focal Length
- 3.60 mm
- Lens Included
- Yes
- Network & Communication
- Connectivity Technology
- Wired
- Remote Management
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Mount Type
- Pole Mount
- Corner Mount
- Junction Box Mount
- Form Factor
- Bullet
- Product Color
- White
- Height
- 6.9"
- Width
- 3.6"
- Length
- 7"
- Diameter
- 3.6"
- Weight (Approximate)
- 1.17 lb
- Environmental Conditions
- Maximum Operating Temperature
- 140°F (60°C)
- Miscellaneous
- Indoor/Outdoor
- Outdoor
- Package Contents
- Bullet Network Camera
- Quick Installation Guide
- Alignment Sticker
- Screw Pack
- Cable Gland
- TAA Compliant
- Yes
- NDAA Compliant
- Yes
