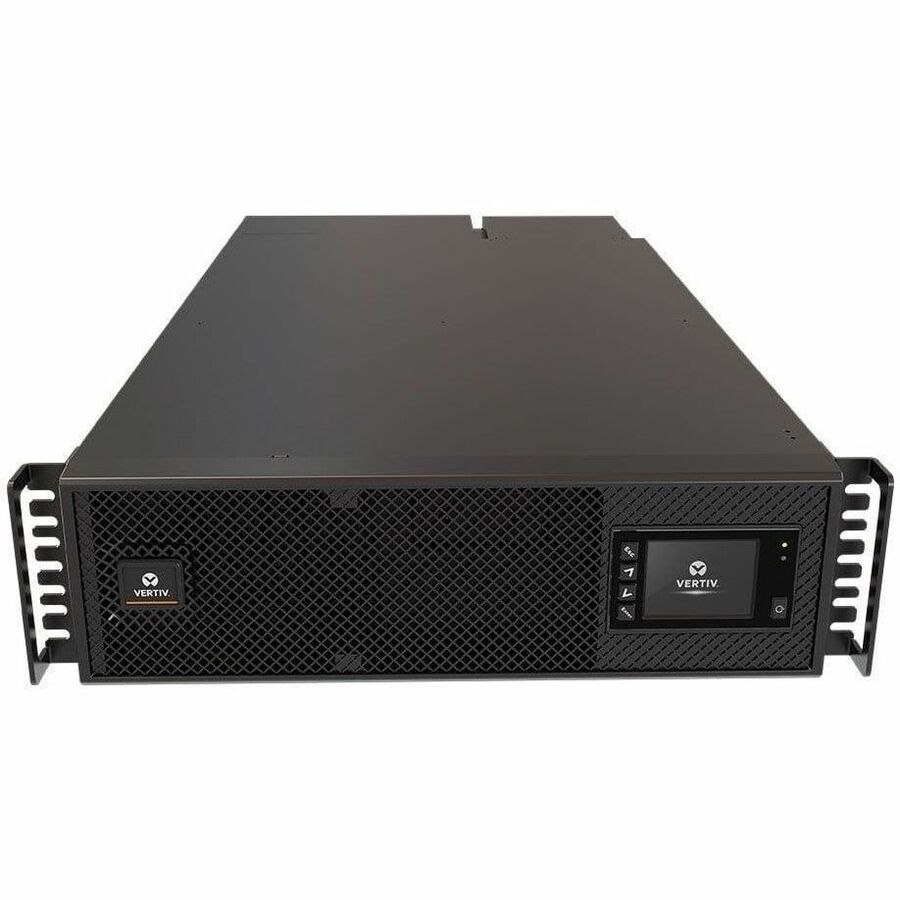

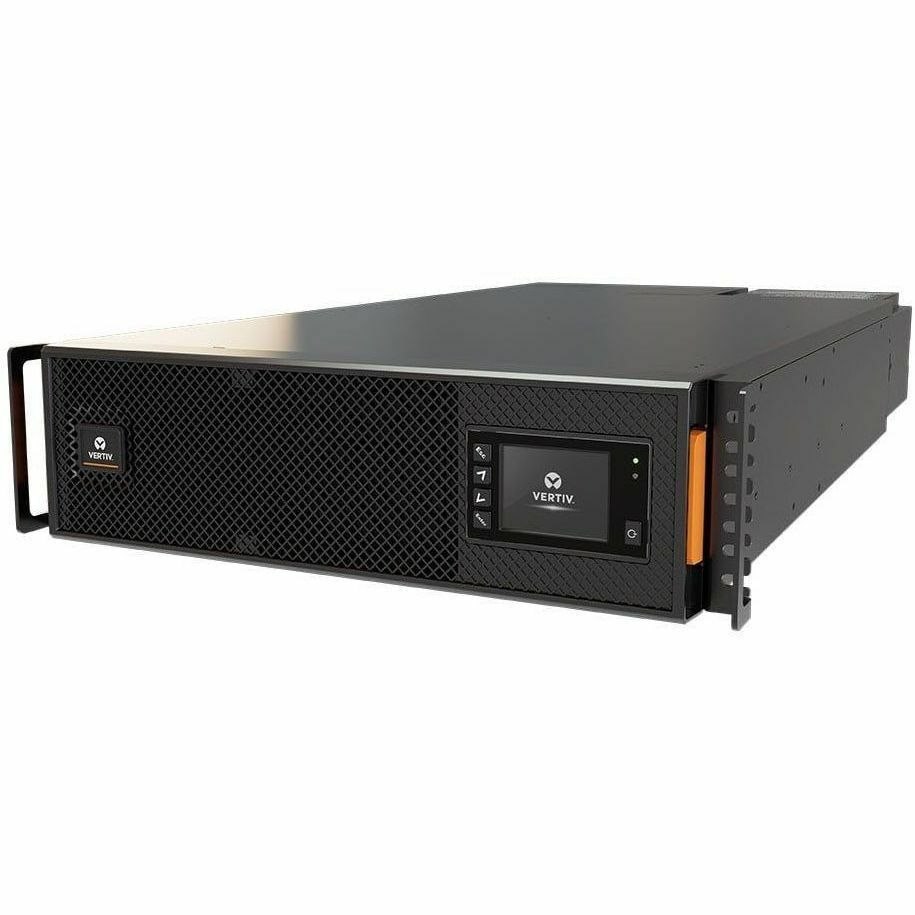

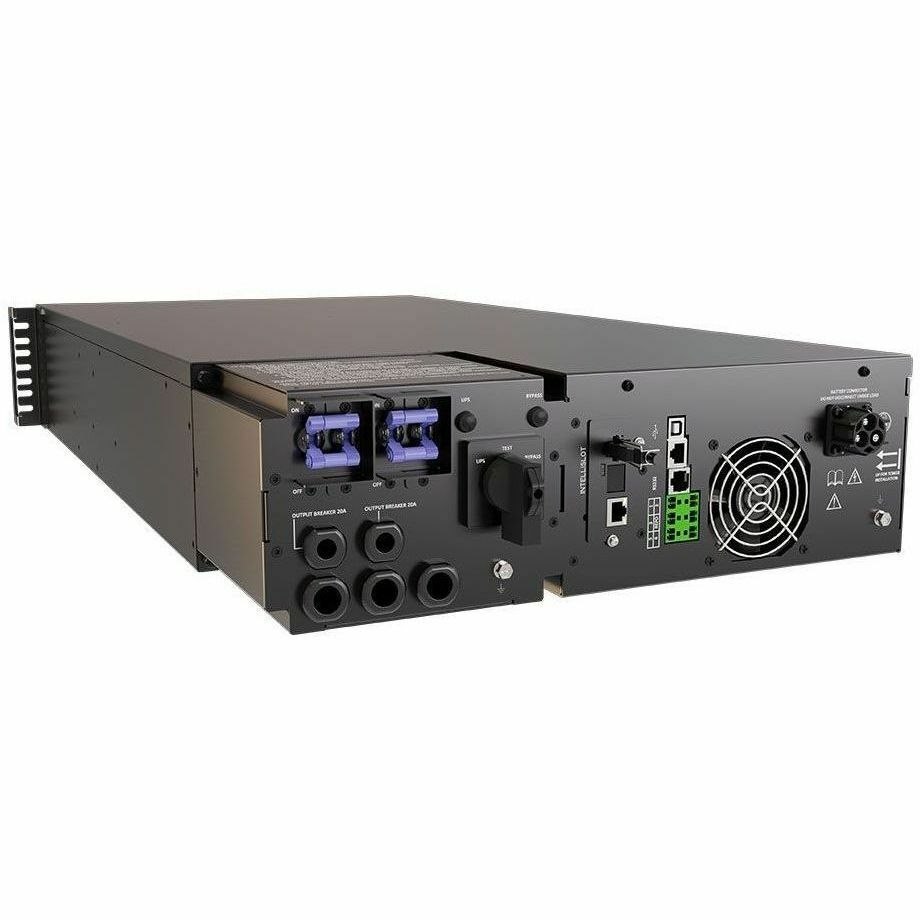

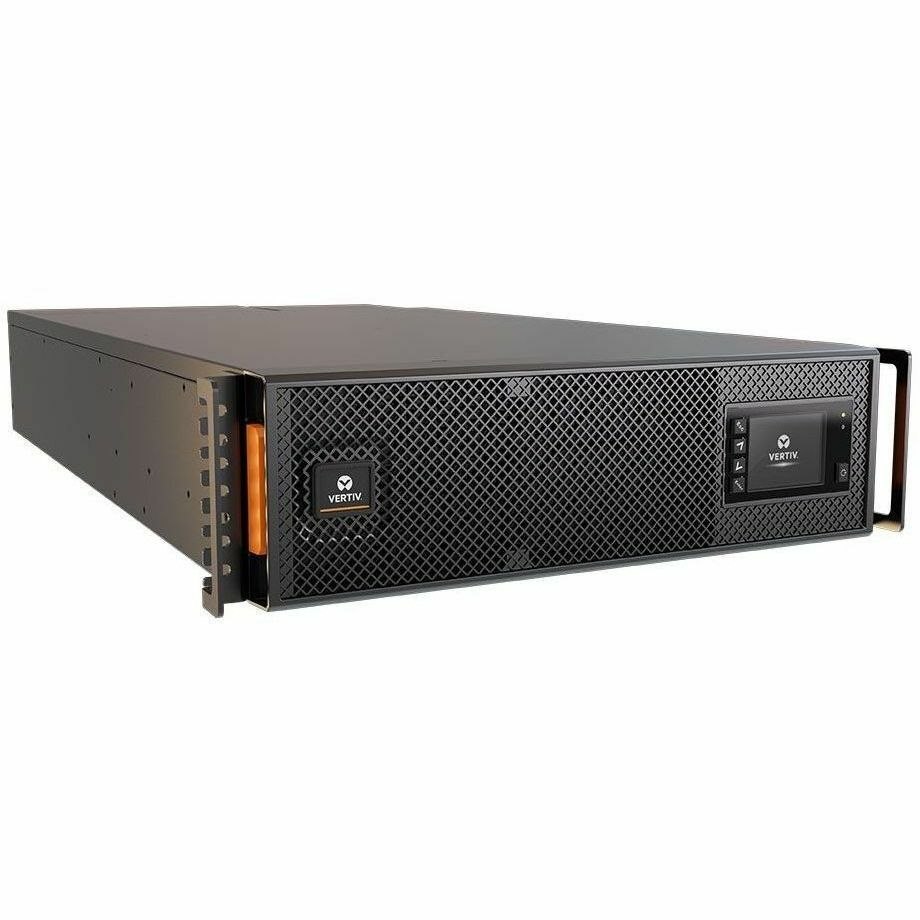

The Vertiv™ Liebert® GXT5 Online Double Conversion UPS family offers the highest level of power conditioning and power protection for critical business IT systems. Continuous power conditioning, zero transfer time, pure sinewave output, and scalable runtime make it ideally suited to protect critical infrastructure in both centralized and edge network applications.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Vertiv Liebert
- Product Series
- GXT5
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
3-year warranty Complete coverage on UPS including batteries.
- Directly Connected Equipment Guarantee
- $500000
- Technical Information
- Plug/Connector Type
- NEMA L6-30P
- Receptacle Type
- NEMA L6-20R
- NEMA L6-30R
- Receptacle Detail
- 2 x NEMA L6-20R
- 2 x NEMA L6-30R
- Overload Protection
- Yes
- Phase
- Single Phase
- Efficiency Detail
- 98% (ECO Mode)
- 95% (Online Mode)
- Application/Usage
- Critical System
- Business
- IT System
- Infrastructure
- Network
- Banking
- Financial
- Insurance
- Education
- Healthcare
- Retail and Wholesale
- Generator
- Surge Suppression
- Yes
- Features
- Built-in Bypass Switch
- Power Description
- Load Capacity (VA)
- 4900 VA
- Load Capacity (Watt)
- 4600 W
- Input Voltage
- 230 V AC
- Input Voltage Range
- 175 V AC - 280 V AC
- Output Voltage
- 200 V AC
- 208 V AC
- 220 V AC
- 230 V AC
- 240 V AC
- Waveform Type
- Pure Sine Wave
- Circuit Breaker
- Yes
- Output Power Factor
- 0.9
- Display & Graphics
- Display
- LCD
- Management
- Network Management
- SNMP/Webcard
- RS232/RS485/USB (Modbus)
- Network Interface Card
- Intelligent Card Slot
- BACnet/Modbus
- Alarm
- Alarm
- Controls/Indicators
- Status Indicators
LCD Display:
- UPS status
- Power metrics
- Configuration options
- Alarms
- Fault codes to manage the UPS
- Interfaces/Ports
- Serial Port
- Yes
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- Battery Characteristics
- External Battery System
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Physical Characteristics
- Form Factor
- Rack/Tower
- Miscellaneous
- Certifications & Standards
- UL1778
- c-UL listed
- Energy Star
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
