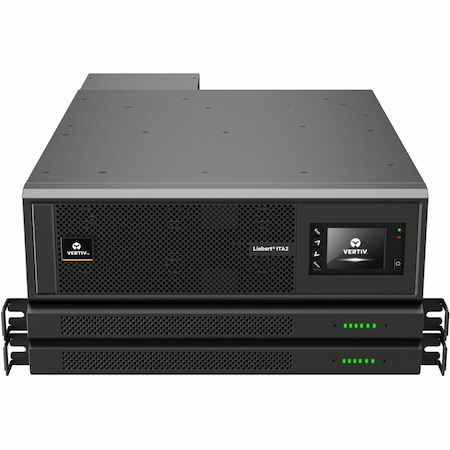

The Vertiv Liebert ITA2 is a compact, rack-tower convertible uninterruptible power system (UPS) that employs true online, double-conversion technology that continuously conditions and regulates its output voltage. The Liebert ITA2 is designed to supply microcomputers, servers, networking, and other sensitive equipment with clean sine wave input power. It offers economical, efficient, and reliable three-phase power for critical loads up to 10kVA. In rackmount or tower configuration, this intelligent UPS has scalable battery runtimes, output distribution options, a high power factor and an optional maintenance bypass cabinet. It is easy to install and operate. It has a 2-year warranty. The Vertiv MPL for Liebert ITA2 External Battery Cabinet System has a rackmount or tower configuration. The EBC System consists of (2) 1U cabinets per string (total 2U per string) and provides the Liebert ITA2 UPS with extended battery runtimes. It is easy to install and operate. It has a 5-year warranty.
- General Information
- Manufacturer
- Vertiv
- Manufacturer Website Address
- http://www.vertiv.com/
- Brand Name
- Liebert
- Product Series
- ITA2
- Product Condition
- New
- Packaged Quantity
- 1
- Product Type
- Double Conversion Online UPS
- Warranty
- Limited Warranty
- 2 Year
- Additional Warranty Information
2 year standard; 1 & 3 Additional years optional
- Technical Information
- Receptacle Type
- Hardwired
- Overload Protection
- Yes
- Transfer Time
- 0 ns
- EMI/RFI Noise Filter
- Yes
- Phase
- Three Phase
- Application/Usage
- Server
- Network Workstation
- Network Closet
- VoIP Device
- Large Network Peripheral
- IOT Device
- Electronic
- Surge Suppression
- Yes
- Features
- Built-in Bypass Switch
- Power Description
- Load Capacity (VA)
- 10000 VA
- Load Capacity (Watt)
- 10 kW
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 166 V AC - 249 V AC
- Input Current
- 37 A
- Output Voltage
- 208 V AC
- 120 V AC
- 220 V AC
- 127 V AC
- Waveform Type
- Pure Sine Wave
- Surge Energy Rating
- 80 J
- Circuit Breaker
- Yes
- Output Power Factor
- 0.9
- Management
- Network Management
- SNMP
- Modbus TCP
- Network Card
- Alarm
- Alarm
- Interfaces/Ports
- Serial Port
- Yes
- Network (RJ-45)
- Yes
- USB
- Yes
- EPO Port
- Yes
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Backup/Run Time (Full Load)
- 10 Minute
- Backup/Run Time (Half Load)
- 22 Minute
- Typical Battery Recharge Time
- 2 Hour
- Hot Swappable
- Yes
- Replaceable Battery
- Yes
- Environmental Conditions
- Minimum Operating Temperature
- 32°F (0°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Sound Emission (A-Weighted)
- 58 dB(A)
- Thermal Dissipation
- 749.38 W
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Black
- Gray
- Height
- 5.1"
- Width
- 16.9"
- Depth
- 19.7"
- Rack Height
- 3U
- Form Factor
- Rack/Tower
- Weight (Approximate)
- 50.70 lb
- Miscellaneous
- Package Contents
- ITA2LI-10KRT2085UN UPS
- USB Cable
- Rack Handles & Associated Hardware
- Rack Rail Kit & Associated Hardware
- Wiring Boxes with Knockouts Installed on Back of Module
- 4 x Support Base ends for Tower Mount Application
- 2 x Support Base Extension
- Quick Start Guide (install & Start-up)/Safety Instruction Booklet
- IS-Unity-DP Intellislot Communication Card Installed
- Power Cable Kit - UPS to 1st Battery String
- Communication Cable - UPS to 1st Battery String
- 1 x string Li-ion Battery Cabinets
- Certifications & Standards
- UL/cUL listed to UL 1778, 5th Ed.; CSA 22.2 No. 107.3
- FCC Part 15, Class A
- ANSI C62.41
- Cat. A Level 3
- IEC 62040-1
- IEC6240-3
- ISTA 1A
- Energy Star
- Yes
- Country of Origin
- China
- TAA Compliant
- No
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- ENERGY STAR 2.0
- Environmental Compliance
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS) 2
