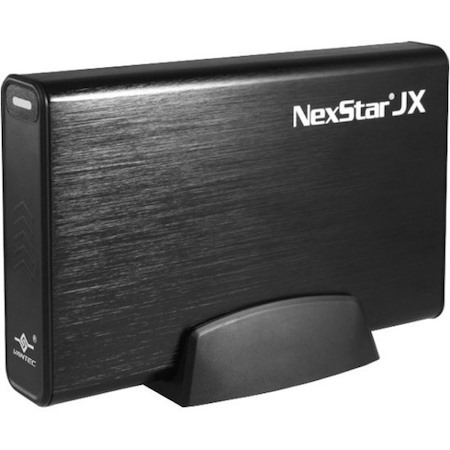

The NexStar JX, USB 3.2 Gen1x1, 3.5" or 2.5" SATA III HDD/SSD Drive Green Enclosure with eSATA is a redesigned enclosure for easy removal of the drive. It features a hard aluminum case that effectively draws away the heat to keep your hard drive running at optimal temperature. This NexStar JX comes with smart and green features to extend the life of the drive by spinning down when the system goes to sleep thus saving energy when it is not in use. The latest UASP protocol and SATA III 6Gbps support faster transfer and backup of files. We at VantecUSA, built this NexStar JX series to continue the same tradition of the legacy NexStar 3 series that is designed to last and grow with you.
- Design For Large Capacity Drive
- Support 3.5" or 2.5" SATA III HDD/SSD Drive
- SATA III specification max 6Gbps (Backwards Compatible With SATA II/I)
- Adopt UASP to Enhance Maximum Performance of Hard Drive for Windows 10/11
- Aluminum Casing Cools Down Your Hard Drive
- Vents To Exhaust Hot Air To Let In Cool Air
- Maximum Transfer Rates Up to 5 Gbps w/USB 3.2 Gen1x1
- Maximum Transfer Rates Upto 6 Gbps for eSATA
- Easily Add Storage to Any System/Appliance with USB or eSATA
- Hi-Quality Shielded USB and eSATA Cable Ensures Data Integrity and Speed
- Hot-Swappable: Plug & Play Without Rebooting for USB and eSATA (with system support)
- No Drivers Needed (NDN) for Windows OS and OSX
- General Information
- Manufacturer
- Vantec Thermal Technologies
- Manufacturer Website Address
- http://www.vantecusa.com
- Brand Name
- Vantec
- Product Line
- NexStar JX
- Packaged Quantity
- 1
- Product Type
- Drive Enclosure
- Technical Information
- Number of Hard Drives Supported
- 1
- Total Hard Drive Capacity Supported
- 20 TB
- Number of Solid State Drive Supported
- 1
- I/O Expansions
- Number of Total Expansion Bays
- 1
- Number of 2.5"/3.5" Bays
- 1
- Hot Swappable Bays
- Yes
- Network & Communication
- Wireless LAN
- No
- UASP Support
- Yes
- Interfaces/Ports
- Drive Interface
- SATA/600
- Host Interface
- eSATA
- USB 3.0 (3.1 Gen 1) Type B
- Number of USB Ports
- 1
- Software
- Operating System Supported
- Windows 7
- Windows 8
- Windows 8.1
- Windows 10
- Windows 11
- Mac OS X 10.6 Snow Leopard
- Linux
- Physical Characteristics
- Product Material
- Plastic
- Aluminum
- Cooling Fan
- Yes
- Form Factor
- External
- Height
- 4.8"
- Width
- 1.3"
- Depth
- 7.9"
- Weight (Approximate)
- 14.32 oz
- Miscellaneous
- Package Contents
- NexStar JX, 3.5" SATA III Hard Drive Enclosure
- 1 x Ac Adapter
- 1 x Screw Set
- 1 x USB Cable
- 1 x eSATA Cable
- 1 x Enclosure Stand
- 1 x Quick Install Guide
- Country of Origin
- Taiwan
