- General Information
- Manufacturer
- U.S. Robotics
- Manufacturer Website Address
- http://www.usr.com
- Brand Name
- USRobotics
- Product Type
- Data Modem

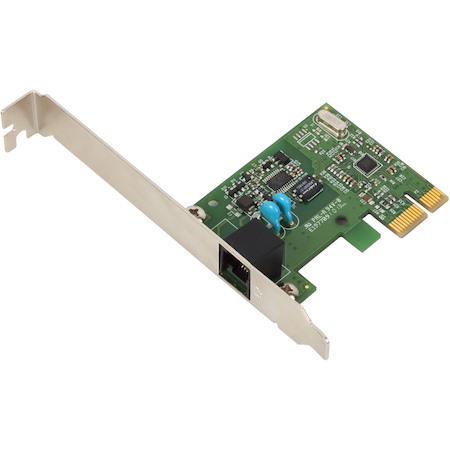

USRobotics now offers another form factor for internal modems, PCI Express. The USRobotics 56K* PCI Express Faxmodem (PCIe 1.1) is a single lane (x1) express card with both full height and low profle brackets and will ft into any available PCI Express slot. It is also broadly compatible with Windows including 64 bit and server systems, using the CPU of the host computer for high compression throughput due to direct parallel access. The PCI Express Faxmodem is fully compatible with V.92 and lower rates, making it ideal for compact POS solutions that only require V.34.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Modulation
- ITU-T V.92
- Interfaces/Ports
- Host Interface
- PCI Express x1
- Number of Phone Line (RJ-11) Ports
- 1
- Media & Performance
- Modem Transmission Data Rate
- 56 kbit/s
- Physical Characteristics
- Form Factor
- Plug-in Card
- Height
- 0.5"
- Width
- 2"
- Depth
- 2.8"
- Weight (Approximate)
- 1.28 oz
- Miscellaneous
- Package Contents
- USR5638 Data Modem
- Low profile bracket
- Phone cord
- Quick Installation Guide
- Installation Essentials CD-ROM: drivers for Windows, Command Reference
- System Requirements
- Windows XP/XP 64 bit/POSReady/2003/2003 64 bit/Vista/Vista 64 bit/Server 2008/Server 2008 64 bit/ Win 7/Win 7 64 bit/Win 8/Win 8 64 bit/Server 2011/Server 2012 operating system (Unimodem TSP/TAPI compliant)
- Available PCI Express slot: full height or low profile
- 2x or better CD-ROM drive
- Analog phone line
- Country of Origin
- China
