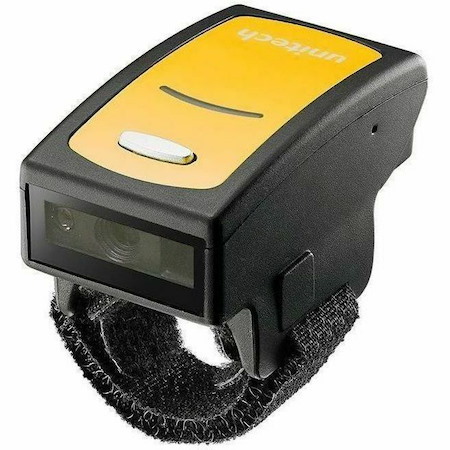

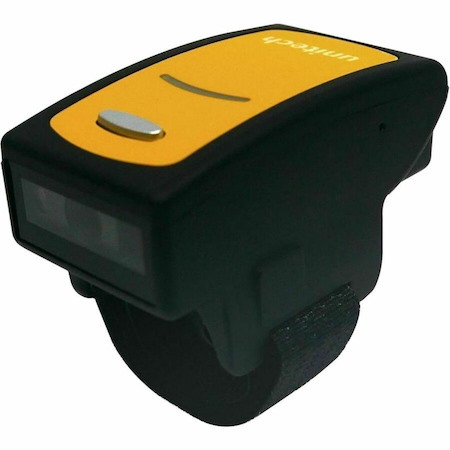

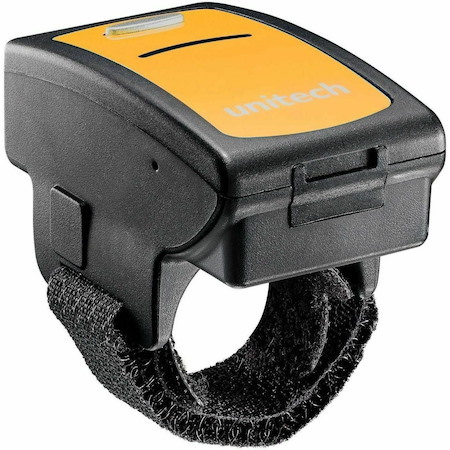

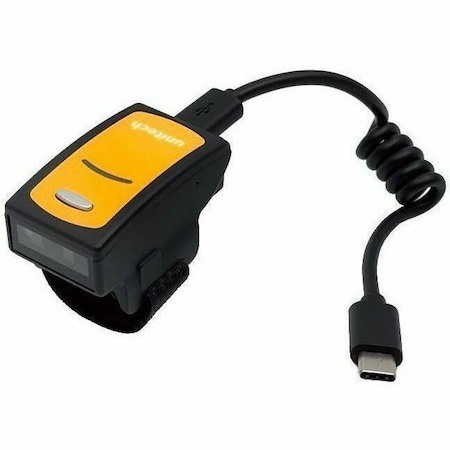

Unitech MS622 Wired 2D Ring Scanner

  • Part: 1364589
$146.00

Availability

Out of Stock

The MS622 is a single finger wearable scanner, combining lightweight design with superior 2D scanning performance that transforms the way you work and empowers you to verify tasks accuracy with hands-free scanning. It streamlines the workflow for a wide range of applications such as retail, pharmacy, transportation and warehouse.

Single Finger Wearable design

Featuring flexible and lightweight wearable design, the MS622 ring scanner gives users freedom of movement to perform barcode scanning tasks comfortably while keeping both hands free. It's suitable for left and right hands, which is not only suitable for the operation of right hands, but also meets the handedness requirement on left-handers and fully embodies people orientation.

Superior 2D Scanning Performance

Built in the high-speed decoder paired with an aggressive scanning engine, the MS622 ring scanner delivers great performance up to 60 fps per second as well as capturing high density with a 5 mil resolution and a scanning width up to 146mm. The MS622 increased scan speed and operational effectiveness even while moving and also supports most 1D / 2D barcodes on mobile screens.

Lightweight, Convenient to Use

It is ergonomic and lightweight design, only about 14g that provides users with all-day superior comfort. By wearing the MS622 ring scanner on fingers and combining it with a WD200 wearable mobile computer, warehouse and retail workers are available to keep their hands on the items they are moving, increasing their productivity.

Compatible with Gloves

Featuring sensitive touch-activated trigger Key, the MS622 is compatible with gloves that allows users to wear glove to operate it.

Durable

Furthermore, it has an IP42 rating for dust and water resistance as well as a 1.5 meter drop spec that provides superior durability and reliability. Combining high performance and compact design, MS622 gives mobile worker conveniently and safely while on the go.

  • General Information
    • Manufacturer
    • Unitech Electronics Co., Ltd
    • Manufacturer Website Address
    • http://www.ute.com
    • Brand Name
    • Unitech
    • Product Type
    • Barcode Scanner
  • Warranty
    • Limited Warranty
    • 15 Month
    • Additional Warranty Information
      • This product is warranted against defects in workmanship and materials for a period of fifteen months from the date of shipment. Accessories are warranted for three months to one year. Our different regions have varying warranty terms, and offer extended and comprehensive warranties, so please contact your local representative for more information

  • Technical Information
    • Connectivity Technology
    • Cable
    • Scanning Capability
    • 1D
    • 2D
    • Barcode Symbology Supported
    • 1D:

      • UPC-A/UPC-E
      • EAN-8/EAN-13
      • Industrial 2 of 5
      • Codabar
      • Matrix 2 of 5
      • Code 11
      • Code 93
      • Code 32,
      • Code 128
      • Standard Code 39
      • Full ASCII Code 39
      • Interleaved 2 of 5
      • China Postal Code
      • MSI Plessey Code
      • UK Plessey Code
      • EAN/UCC 128
      • Telepen Code
      • IATA Code
      • GS1 Databar

      2D:

      • QR Code
      • Micro QR Code
      • PDF417
      • Data Matrix
      • Aztec
    • Light Source
    • LED
    • Image Sensor Type
    • Imager
    • Scan Mode
    • Trigger
    • Scan Pattern
    • Area
    • Scanning Distance
    • 13.58"
    • Features
    • Vibration
    • Notification LED
    • Ergonomic Design
    • Cable Type Included
    • USB
    • Reading Angle (Skew)
    • 60°
    • Reading Angle (Pitch)
    • 60°
    • Reading Angle (Roll)
    • 360°
    • Maximum Ambient Light
    • 100000 lux
    • Drop Specification
      • 1.5M onto concrete (scanner only)
    • Minimum Print Contrast
    • 40%
    • Minimum Element Resolution (Code 39)
    • 5 mil
    • Minimum Element Resolution (DataMatrix)
    • 10 mil
    • Minimum Element Resolution (PDF417)
    • 6.7 mil
    • Image Sensor Resolution
    • 640 x 480
    • Air Electrostatic Discharge (+/-)
    • 8kV
    • Contact Electrostatic Discharge (+/-)
    • 4kV
  • Interfaces/Ports
    • Host Interface
    • USB
  • Environmental Conditions
    • Operating Temperature
    • -4°F (-20°C) to 131°F (55°C)
    • Storage Temperature
    • -40°F (-40°C) to 158°F (70°C)
    • Humidity (Non-condensing)
    • 0% to 95%
  • Physical Characteristics
    • Form Factor
    • Wearable
    • Rugged
    • Yes
    • Color Family
    • Dual Color
    • Product Color
    • Gray
    • Yellow
    • Durability
    • Dust Resistant
    • Water Resistant
    • Shock Resistant
    • Weight (Approximate)
    • 0.49 oz
  • Miscellaneous
    • Package Contents
      • MS622 Wired 2D Ring Scanner
      • Ring Strap
      • USB Cable
    • Ingress Protection (IP) Rating
    • IP42
    • Application/Usage
    • Retail
    • Warehouse
    • Hospitality
    • Transportation
    • Pharmacy
    • TAA Compliant
    • Yes
