- General Information
- Manufacturer
- Tyan Computer Corp
- Manufacturer Website Address
- http://www.tyan.com
- Brand Name
- Tyan
- Product Line
- Tempest HX
- Product Type
- Server Motherboard
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C741
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-4677
- Processor Generation Supported
- 4th Gen
- 5th Gen
- Processor Supported
- Xeon
- Memory
- Number of Memory Slots
- 8
- Memory Form Factor
- DIMM
- RDIMM
- Maximum Memory Supported
- 2 TB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 5600 MHz
- 4800 MHz
- 4400 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 10
- 5
- Video
- Onboard Video
- CPU Dependent Video
- Graphics Controller Manufacturer
- ASPEED
- Graphics Controller Model
- AST2600
- Audio
- Audio Channels
- 2.1
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 5.0
- PCI Express Standard
- PCI Express 5.0
- Total Number of PCI Express Slots
- 5
- Number of PCI Express x8 Slots
- 1
- Number of PCI Express x16 Slots
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 2
- Number of USB 2.0 Ports
- 2
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 4
- Onboard Interfaces
- Number of SATA Interfaces
- 6
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 3
- Physical Characteristics
- Form Factor
- SSI CEB
- Width
- 12"
- Depth
- 10.5"
- Miscellaneous
- Package Contents

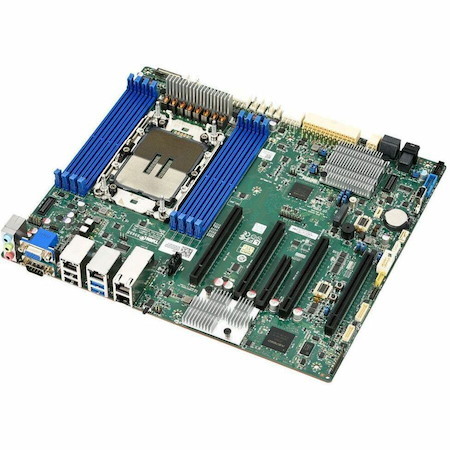

- Tempest HX S5652 Server Motherboard
- 1 x Quick Installation Guide
- 1 x I/O Shield
- 2 x SATA signal cables
- 1 x M.2 Card Latch
- 2 x MCC Carrier
- 2 x XCC Carrier
- Brand Compatibility
- Intel
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
