Tripp Lite by Eaton HDBaseT Class B (HDBaseT-Lite) HDMI Over Cat5e/6/6a Extender Kit, Serial & IR Control, 4K x 2K 30 Hz UHD / 1080p 60 Hz, Up to 230 ft. (70 m), TAA

  • Part: 1045239
$168.00

Availability

In Stock

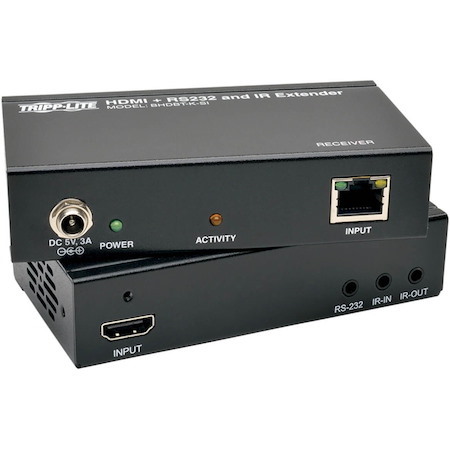

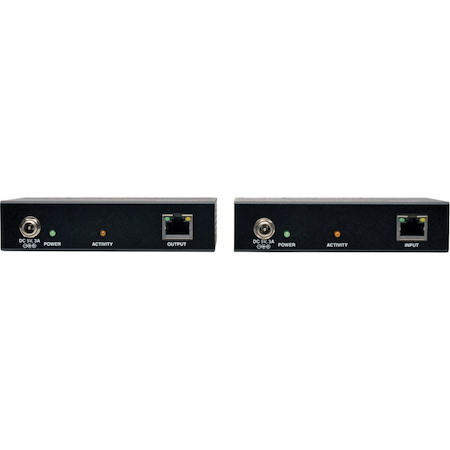

The BHDBT-K-SI HDBaseT Class B(HDBaseT-Lite) Extender Kit allows you to transmit HDMI audio and video, RS-232 serial and IR Remote Control signals up to 230 feet(70 m) over a single Cat5e/6/6a cable, including a 1920 x 1080(1080p) signal @ 60 Hz. Or you can extend an Ultra High Definition(UHD) 3840 x 2160(4K x 2K) @ 24/30Hz video signal up to 130 feet(40 m). Add up to five Tripp Lite BHDBT-TR-SI transceivers(sold separately) between the transmitter and receiver units to further expand the range up to 780 feet(3840 x 2160 @ 24/30Hz) or 1,380 feet(1080p @ 60Hz) with a monitor connected via HDMI port to each transceiver.You can also control RS-232 serial devices, such as touchscreen displays or scanners, at baud rates up to 115 Kbps. The BHDBT-K-SI's 2-way IR Remote Control feature (@ 39 KHz) lets you control your Blu-ray player using its remote when at the remote monitor or control your remote monitor using its remote when at the Blu-ray player. Locking HDMI ports(ideal for use with Tripp Lite's High-Speed HDMI cables with locking connectors, such as P569-006-LOCK) on both the transmitter and receiver prevent cables from coming loose or undone, ensuring an intact signal.The BHDBT-K-SI supports 7.1-channel surround sound, DTS-HD and Dolby TrueHD audio, as well as 3D video, EDID and HDCP. Included mounting hardware lets you attach each unit to a wall, rack or pole. There's no software to download or install, and you can have the BHDBT-K-SI Extender Kit set up and ready to go quickly. Compliant with the Federal Trade Agreements Act(TAA) for GSA Schedule purchases.

More from the Manufacturer

  • General Information
    • Manufacturer
    • Tripp Lite by Eaton
    • Manufacturer Website Address
    • https://tripplite.eaton.com/
    • Brand Name
    • Tripp Lite by Eaton
    • Product Type
    • Video Extender Transmitter/Receiver
  • Warranty
    • Limited Warranty
    • 1 Year

  • Technical Information
    • Connectivity Technology
    • Wired
    • Number of Input Devices Supported
    • 1
    • Number of Output Devices Supported
    • 1
    • Maximum Operating Distance
    • 230 ft
  • Video
    • Graphics Modes
    • 4K
    • Maximum Video Resolution
    • 3840 x 2160
  • Interfaces/Ports
    • Network (RJ-45)
    • Yes
    • HDMI In
    • Yes
    • HDMI Out
    • Yes
    • Number of Network (RJ-45) Ports
    • 2
    • Number of HDMI Inputs
    • 1
    • Number of HDMI Outputs
    • 1
  • Media & Performance
    • Media Type Supported
    • Twisted Pair
    • Twisted Pair Cable Standard
    • Category 6a
  • Power Description
    • Input Voltage
    • 5 V DC
    • 120 V AC
    • 230 V AC
  • Physical Characteristics
    • Color Family
    • Black
    • Product Color
    • Black
    • Form Factor
    • Pole-mountable
    • Wall Mountable
    • Rack-mountable
    • Transmitter Weight (Approximate)
    • 1.05 lb
  • Miscellaneous
    • Package Contents
      • Transmitter
      • Receiver
      • IR-IN and IR-OUT Cables
      • 3.5 mm Male to DB9 Female Adapter Cable
      • 3.5 mm Male to DB9 Male Adapter Cable
      • 2 x  External Power Supplies (Input: 100-240V, 50/60 Hz, 0.5A Output: 5V, 3A)
      • Mounting Hardware
      • Owner's Manual
    • Certifications & Standards
      • TAA
      • CE
      • FCC
    • Country of Origin
    • Taiwan
    • TAA Compliant
    • Yes
    • Environmentally Friendly
    • Yes
