- General Information
- Manufacturer
- TRENDnet
- Manufacturer Website Address
- http://www.trendnet.com
- Brand Name
- TRENDnet
- Product Type
- Ethernet Switch

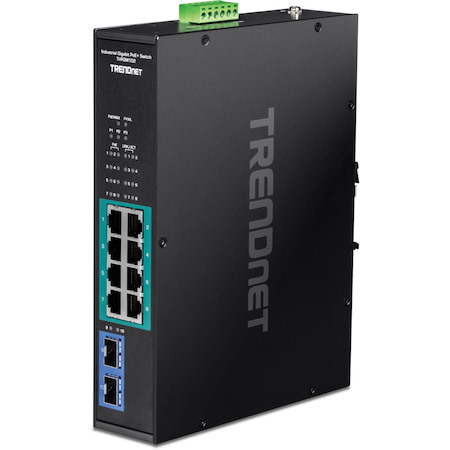

TRENDnet's 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F), model TI-PGM102, has eight gigabit PoE+ ports with a 240W PoE power budget, plus two gigabit SFP slots for long distance fiber applications. Users are able to connect eight PoE+ devices to the switch, while still providing two gigabit SFP slots for additional network connections. This switch is equipped with an IP30 rated metal enclosure, designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F) for harsh, industrial environments.
- 8 x Gigabit PoE+ ports
- 2 x Gigabit SFP slots
- 240W PoE power budget
- 20Gbps switching capacity
- Hardened IP30 rated metal switch
- Includes DIN-Rail and wall mounts
- Wide operating temperature range of -20° - 65°C (-4° - 149°F)
- Redundant power inputs with overload current protection
- Alarm output triggered by power failure
- Power supply sold separately (models: TI-S24052, TI-S24048)
- NDAA / TAA compliant
- Lifetime Warranty
A 240W PoE+ power budget supplies up to eight Power over Ethernet devices with PoE+ power.
Fault ToleranceFeatures redundant power inputs with overload current protection and output alarm relay.
Industrial Hardened DesignRugged IP30 rated housing is designed to operate within a wide temperature range of -20° - 65°C (-4° - 149°F).
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Network Ports
- 8
- Network (RJ-45)
- Yes
- Port/Expansion Slot Details
- 8 x Gigabit Ethernet PoE+
- 2 x Gigabit Ethernet Expansion Slot
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- Ethernet Technology
- Gigabit Ethernet
- Network Technology
- 1000Base-FX
- 1000Base-T
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP (mini-GBIC)
- Number of SFP Slots
- 2
- Network & Communication
- Layer Supported
- 2
- Networking Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3z
- IEEE 802.3x
- IEEE 802.3af
- IEEE 802.3at
- Power Description
- PoE (RJ-45) Port
- Yes
- PoE Budget
- 240 W
- Frequency
- 50 Hz
- 60 Hz
- Power Source
- AC/DC
- Power Consumption
- 6.30 W
- Plug/Connector Type
- Terminal Block
- Physical Characteristics
- Product Material
- Metal
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 1.8"
- Width
- 8.3"
- Depth
- 6.3"
- Weight (Approximate)
- 2.43 lb
- Miscellaneous
- Package Contents
- 10-Port Industrial Gigabit PoE+ DIN-Rail Switch -20° - 65°C (-4° - 149°F)
- Quick Installation Guide
- Removable Terminal Block
- Country of Origin
- Taiwan
- TAA Compliant
- Yes
