- General Information
- Manufacturer
- TREND Networks
- Manufacturer Website Address
- http://www.trend-networks.com
- Brand Name
- TREND Networks
- Product Line
- SecuriTEST
- Packaged Quantity
- 1
- Product Type
- Video Testing Device

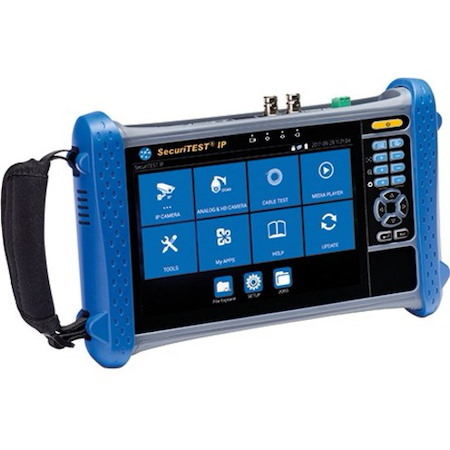

SecuriTEST IP is an installation and troubleshooting tester for digital/IP, HD coax and analog CCTV camera systems. With a single tester that can power, configure and document, SecuriTEST IP increases productivity from start to finish.
- Connect to various cameras using RJ45, Wi-Fi or BNC ports
- Power the camera with 12V from the Li-Ion battery or PoE/PoE+
- Faster camera login using the unique QuickIP™ function
- Comprehensive camera setup with aim, focus, PTZ, presets and network settings
- Provide proof of installation with PDF reports that show camera parameters and multiple video screen-shots
- Eliminate guess work with data cable and network troubleshooting tools
- Technical Information
- Device Function
- Camera Testing
- Analog Camera Testing
- IP Camera Testing
- Cable Testing
- Cable Tracing
- Coaxial Cable Testing
- Video Testing
- IP Scan
- IP Testing
- Twisted Pair Cable Testing
- Crossed Pair Testing
- PoE Testing
- PTZ Control
- Interfaces/Ports
- HDMI
- Yes
- USB
- Yes
- Serial Port
- Yes
- Audio Line Out
- Yes
- Network (RJ-45)
- Yes
- Wireless Specifications
- Wireless LAN
- Yes
- Media & Performance
- Media Type Supported
- Twisted Pair
- Battery Information
- Battery Size Supported
- Proprietary Battery Size
- Battery Built-in
- No
- Battery Included
- No
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Power Description
- Input Voltage
- 12 V DC
- Physical Characteristics
- Height
- 6.3"
- Width
- 9.9"
- Depth
- 1.9"
- Weight (Approximate)
- 2.20 lb
- Miscellaneous
- Package Contents
- SecuriTEST IP - Digital/Analog/HD Coax CCTV Tester
- 1 x Carry Case
- 1 x Neck Strap
- 1 x PSU EU/UK/US/AU Adapters
- 1 x Cable Tracer/remote
- 1 x 3m Cat. 5e UTP Patch Cable
- 1 x 3m Coax Cable with Two End BNC (m) Connectors
- 1 x 3m DC12V 3.5(f) to 2.5(f) Power Cable
- 2 x RS485 Female Green Plugs
- 1 x 0.5m RS485 Cable with Female Green Plug and Two Clips
- 1 x 0.5m Audio Male Jack with Other End Two Clips
- 1 x Quick Reference Guide
- 1 x 8GB MicroSD Card and Reader with USB Adapter
- Country of Origin
- China
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
