- General Information
- Manufacturer
- Transition Networks, Inc
- Manufacturer Website Address
- http://www.transition.com
- Brand Name
- Transition Networks
- Product Type
- PoE Injector

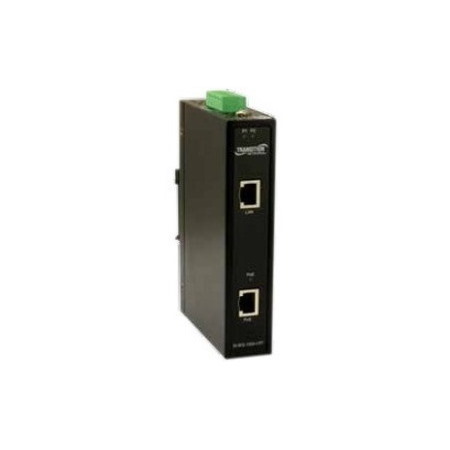

The SI-IES-1200-LRT is a industrial grade 1-port 10/100/1000Base-T PoE+ Mid-span Injector which provides a simple solution to enabling the existing infrastructure with IEEE802.3at PoE+ capability. Transition Networks' Industrial Mid-span Injectors are designed to reliably operate in harsh environments such as those found on factory floors, out-door enclosures or other hazardous environments.
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 24 V DC
- 48 V DC
- Maximum Output Power
- 30 W
- Interfaces/Ports
- Input Ports
- 1 x 10/100/1000Base-T
- Output Ports
- 1 x 10/100/1000Base-T
- Physical Characteristics
- Form Factor
- External
- Mount Type
- DIN Rail/Wall Mountable
- Height
- 5.5"
- Width
- 1.2"
- Depth
- 3.7"
- Miscellaneous
- Compatibility
- Wireless Access Point
- Camera
- Certifications & Standards
- IEEE 802.3
- IEEE 802.3u
- IEEE 802.3ab
- IEEE 802.3at
- UL508
- IP30
- FCC Class A
- CE Mark
- EN61000-6-4
- EN61000-6-2; EN61000-4-2 (ESD)
- EN61000-4-3 (RS)
- EN61000- 4-4 (EFT)
- EN61000-4-5 (Surge)
- EN61000-4-6(CS) EN61000-4-8 (Magnetic Field)
- IEC60068-2-27 (Shock)
- IEC60068-2-32 (Free fall)
- IEC60068-2-6 (Vibration)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- Taiwan
