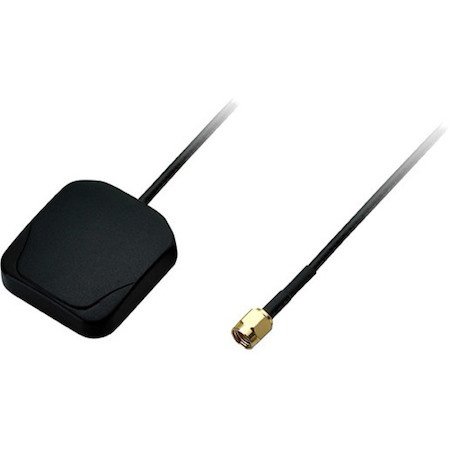

The Ulysses miniature super low profile (only 10mm in height) GNSS antenna is designed for applications which require high positioning accuracy by combining signals from GPS, GALILEO and GLONASS systems. A high gain wide-band patch antenna on an integral ground delivers reliable performance. Fully IP67 waterproof rating allows use in outdoors environments. Front end SAW filter configuration eliminates potential LNA burn-out from nearby out of band radiated power bursts from other antennas that may be co-located nearby.
The antenna is manufactured to strict first tier Automotive quality controlled manufacturing process in TS16949 approved facility.
- General Information
- Manufacturer
- Taoglas
- Manufacturer Website Address
- http://www.taoglas.com
- Brand Name
- Taoglas
- Product Line
- Ulysses
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Bulk
- Technical Information
- Frequency Band Type
- UHF
- Operating Frequency Range
- 1575 MHz to 1610 MHz
- Antenna Gain (Isotropic)
- 27 dBi
- Interfaces/Ports
- Connector Type
- SMA
- Physical Characteristics
- Product Color
- Black
- Height
- 0.39"
- Width
- 1.49"
- Form Factor
- Magnetic Mount
- Weight (Approximate)
- 2.08 oz
- Miscellaneous
- Application/Usage
- GLONASS
- GPS
- Outdoor
- Environmentally Friendly
- Yes
- Country of Origin
- Taiwan
