- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Packaged Quantity
- 1
- Package Type
- Retail
- Product Type
- Server Motherboard
- Warranty
- Limited Warranty
- 1 Year
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C621A
- Total Processor Supported
- 1
- Processor Socket
- Socket P
- Processor Generation Supported
- 3rd Gen
- Processor Supported
- Xeon Gold
- Xeon Silver
- Xeon Bronze
- Xeon Platinum
- Memory
- Number of Memory Slots
- 8
- Memory Form Factor
- DIMM
- RDIMM
- LRDIMM
- Maximum Memory Supported
- 2 TB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 3200 MHz
- 2933 MHz
- 2666 MHz
- Intel Optane Memory Ready
- Yes
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- On-board Video Chipset
- Graphics Controller Model
- AST2600
- Network & Communication
- Gigabit Ethernet
- Yes
- I/O Expansions
- Total Number of Expansion Slots
- 7
- Total Number of PCI Express Slots
- 7
- Number of PCI Express x8 Slots
- 5
- Number of PCI Express x16 Slots
- 2
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 2.0 Ports
- 2
- Number of USB 3.2 Gen 1 Ports
- 2
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2
- Onboard Interfaces
- Number of SATA Interfaces
- 10
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 7
- Number of Onboard USB 2.0 Ports
- 4
- Number of Onboard USB 3.2 Ports
- 3
- Physical Characteristics
- Form Factor
- ATX
- Width
- 12.1"
- Depth
- 10"
- Miscellaneous
- Package Contents

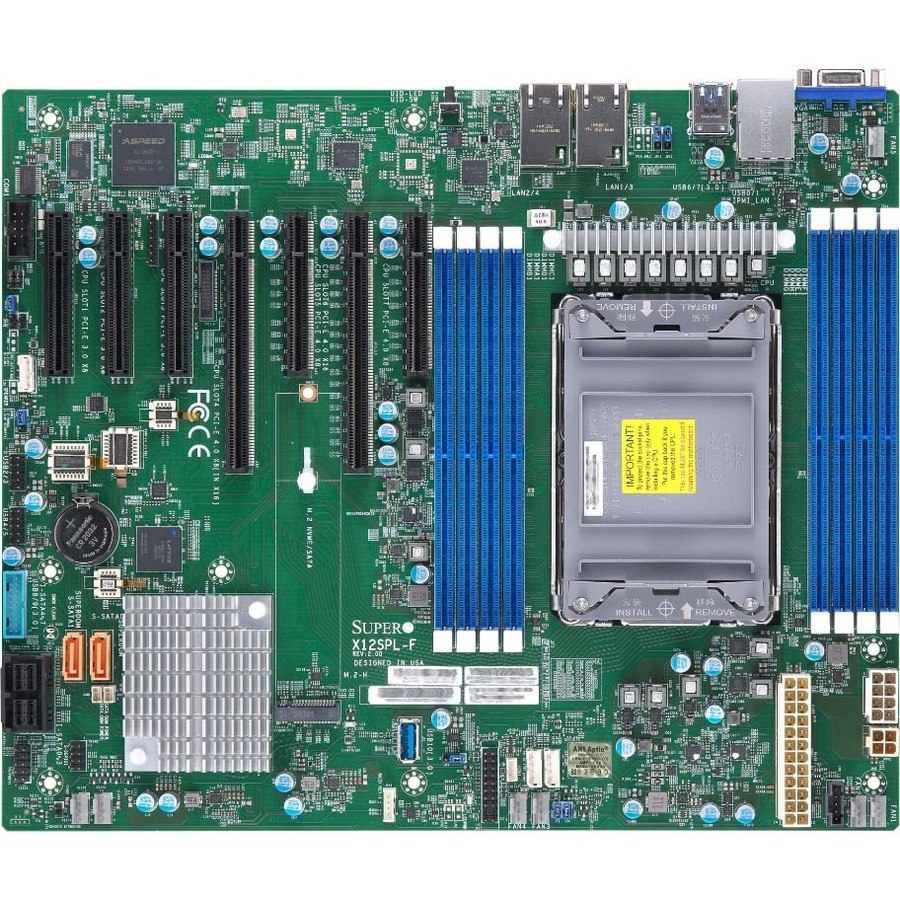

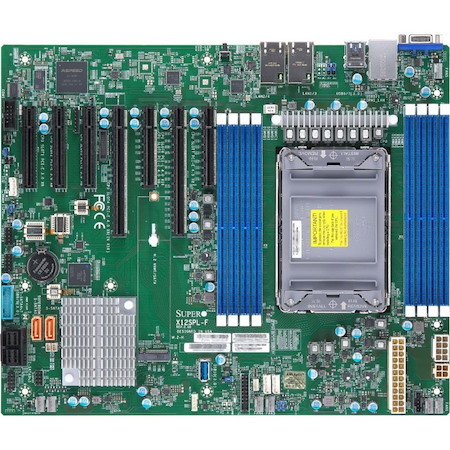

- X12SPL-F Server Motherboard
- 2 x I/O Cables
- 1 x I/O Shield
- 1 x Motherboard Quick Reference Guide
- Compatibility
1U Chassis:
- SC813MF2TQC4-R407CB
- SC813MF2TQC-505CB
- SC113MFAC2-605CB
- SC113MFAC2-R804CB
- SC514-505
2U Chassis:
- SCLA26E1C4-R609LP
- SC213LT-600LPB
- SC825MBTQC-R802LPB
- SC825TQC-R802LPB
- SCLA25TQC-R609LP
3U Chassis:
- SC835TQC-R802B
4U/Tower Chassis:
- SC842TQC-668B
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
