- General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Product Line
- SuperServer
- Product Type
- Barebone System
GPU Systems
Best GPU Servers for Modern Data Centers. The Most Comprehensive AI Systems Featuring the Latest NVIDIA Ampere based GPU Platforms
Highly Optimized GPU-to-GPU Interconnect Architectures
Choose from a broad range of Supermicro GPU optimized SuperServers supporting NVIDIA® NVLink™, Dual-Root Complex or Single Root Complex PCI-E interconnect architectures for target applications and the best AI / Deep Learning performance.
Accelerated Deployment and Peace of Mind
Risk-free investments for guaranteed quality and system performance with our Qualified GPU and Supermicro Server Platform List.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Processor Socket
- Socket LGA-4189
- Processor Supported
- Xeon Platinum
- Xeon Gold
- Xeon Silver
- Xeon Bronze
- 64-bit Processing
- Yes
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C621A
- Memory
- Maximum Memory Supported
- 6 TB
- Memory Technology
- DDR4 SDRAM
- Memory Standard
- DDR4-3200/PC4-25600
- Total Number of Memory Slots
- 16.0
- Intel Optane Memory Ready
- Yes
- Storage
- Supported Storage Drive Interfaces
- SAS
- Serial ATA III
- M.2
- Controllers
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- Display & Graphics
- Graphics Controller Manufacturer
- ASPEED
- Graphics Controller Model
- AST2600
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- I/O Expansions
- Number of Total Expansion Bays
- 8
- Number of 3.5" Bays
- 8
- Total Number of Expansion Slots
- 7.0
- Number of PCI Express x8 Slots
- 1
- Number of PCI Express x16 Slots
- 6
- Interfaces/Ports
- Number of VGA Ports
- 1
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Installed
- 2
- Maximum Power Supply Wattage
- 2200 W
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Form Factor
- Rack-mountable
- Rack Height
- 4U
- Height
- 18.1"
- Width
- 7"
- Depth
- 26.5"
- Weight (Approximate)
- 52.91 lb
- Miscellaneous
- Package Contents

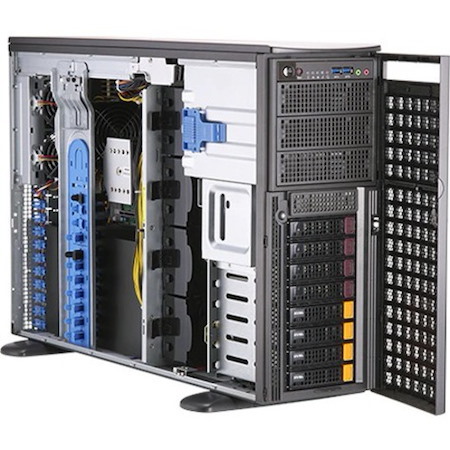

- SuperServer SYS-740GP-TNRT (black)
- 1 x Super X12DPG-QT Motherboard
- 1 x Full-Tower Chassis
- 1 x 8-port 3.5" HDD/NVMe backplane for 4U Tower chassis, all 8 ports support NVMe Gen4 / SAS / SATA devices.,RoHS
- 2 x PWCD,US/EU/Canada/China/Australia,IEC60320 C14 TO C13,4FT,17
- 4 x PWYCB,GPU,2x4M/CPU to two (2x3F+2x1F)/PCIe,P4.2, 5CM,16/20AW
- 2 x Slimline x4 (LE) to Slimline x4 (STR),INT,30CM,100 OHM,
- 2 x Slimline x8 (LE) to Slimline x8 (RE),INT,30CM,85 OHm,R
- 4 x NVMe Panetone 159C on Latch
- 1 x STD I/O Shield for X12DPG-QT with EMI Gasket
- 2 x 4U Active CPU Heat Sink for X12 Generation DP Workstations and 4U Servers
- 2 x 1U 2200W Redundant, Titanium, 76(W) X 40(H) X 336(L) mm
- 1 x Power Distributor Board is for 4U GPU solution using regular
- 1 x ROUND 16 TO 16 PIN RIBBON FP CABLE 30"L, LF
- 2 x US POWER CORD 16AWG, PB FREE
- 4 x 4 TO 4 PIN FAN POWER CABLE, 210MM
- 2 x 4 TO 4 PIN REAR FAN PWR EXT W/ SQUARE HEADER, 30CM (PWM)

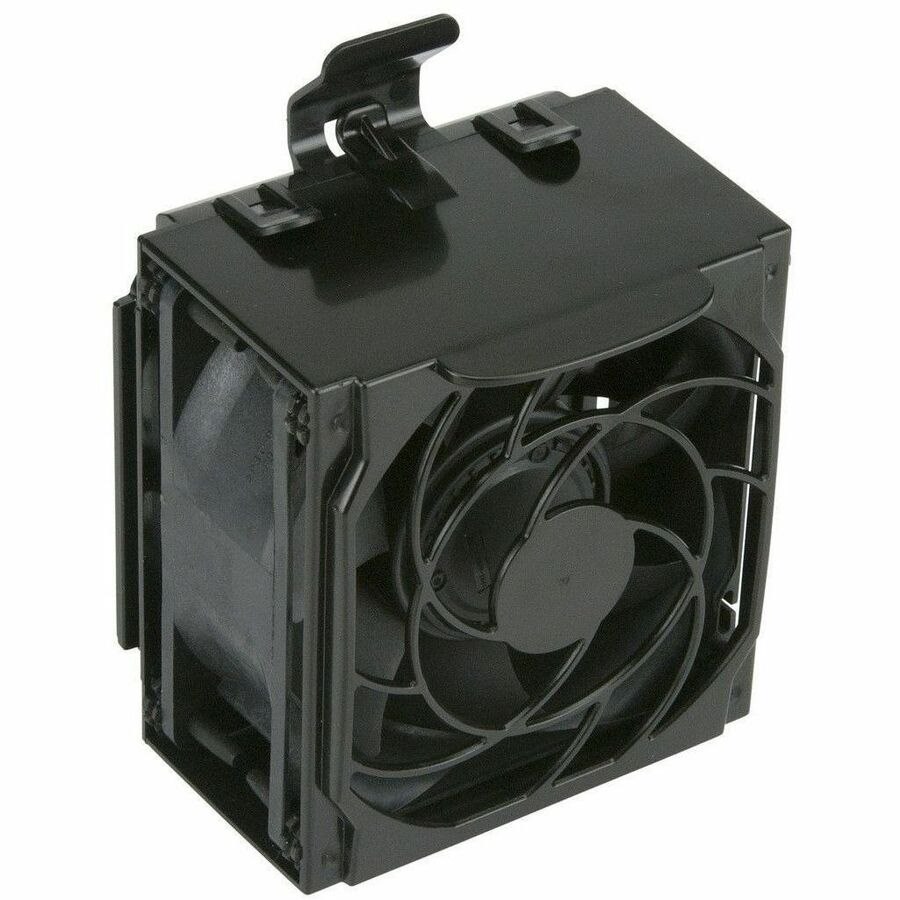

- 2 x 80x80x38 mm 4-pin PWM Fan Assembly for SC743, SC745
- 2 x 92x38mm 4-PIN PWM FAN W/ HUS for SC747
- 2 x 92x92x38 mm, 7.5K RPM, SC747 Middle Fan for Passive Cooling GPU
- 1 x SC747 plastic front bezel
- 3 x Black 5.25 drive tray w/o rail (SC747)
- 8 x Black gen 6.5 hot-swap 3.5 inch HDD Tray
- 1 x SC747BTQ-R2K04B Front Control Panel PCB (2x USB3.0, Audio)
- 1 x Black plastic top cover for SC747
- 1 x GPU Card Holder (11 slots) for SC747TQ, SC842
- 1 x fixed 3.5" dummy cover for SC747
- 1 xPlastic feet (2 pcs/set) for 4U tower chassis, black color
