Buy Supermicro X11SPA-T Workstation Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX

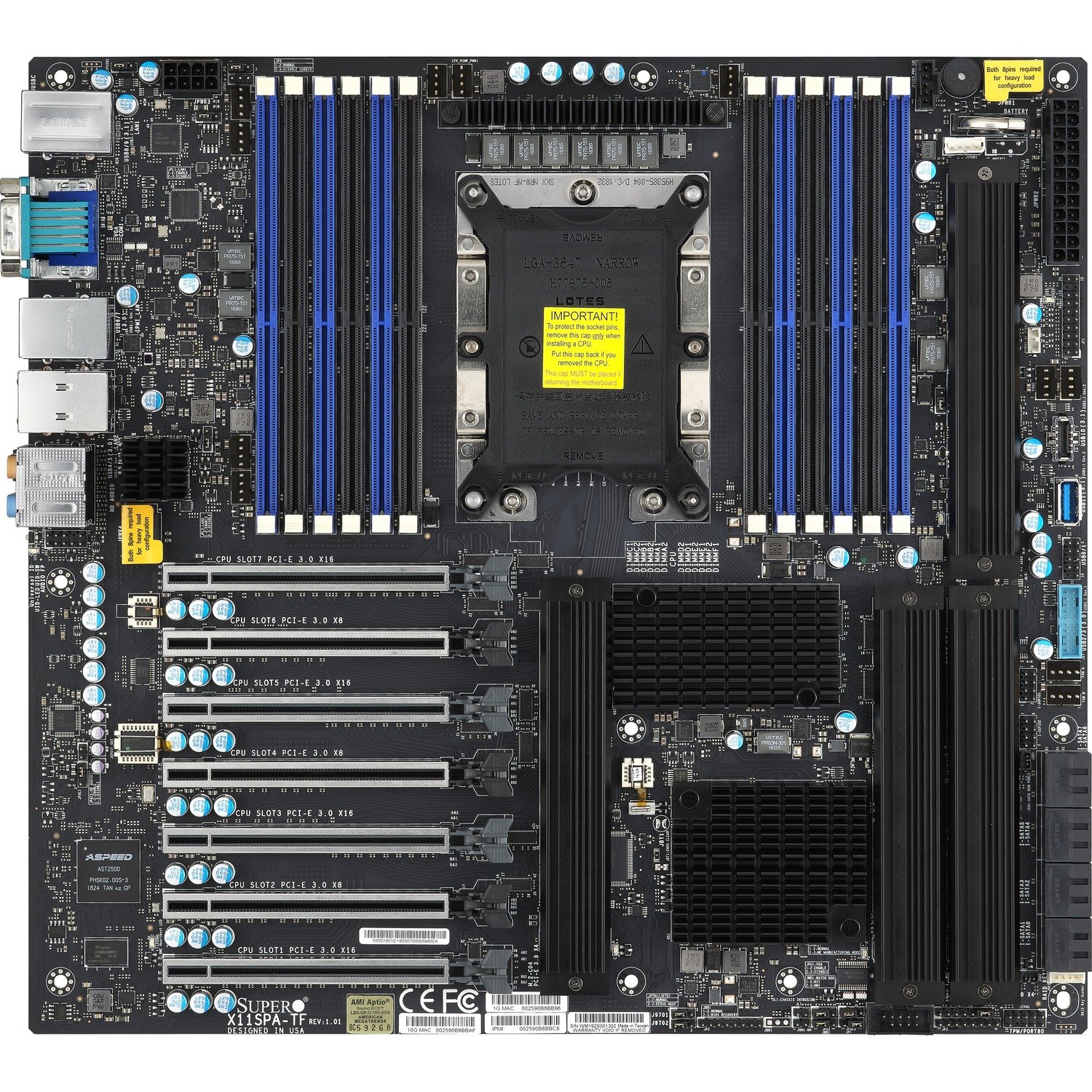

Supermicro X11SPA-T Workstation Motherboard - Intel C621 Chipset - Socket P LGA-3647 - Extended ATX

Part: 1197295

$807.00

Availability

Out of Stock

General Information
- Manufacturer
- Supermicro Computer, Inc
- Manufacturer Website Address
- http://www.supermicro.com
- Brand Name
- Supermicro
- Packaged Quantity
- 1
- Package Type
- Retail
- Product Type
- Workstation Motherboard

BOARDS supporting Intel® Xeon® Scalable Processors / Socket P (LGA 3647)

Supermicro's new generation X11 UP serverboards offer the highest levels of performance, efficiency, security and scalability in the industry with up to: 2TB DDR4 2933MHz in 8 DIMM slots with support for Intel® Optane™ DC Persistent Memory per node, 7 PCI-E slots, SAS 3.0/SATA 3.0/NVMe hot-swap HDD/SSD support, 1GbE/10GBase-T/10G SFP+ networking options, SATA Disk-on-Module (DOM), and IPMI 2.0 plus KVM with dedicated LAN.

Warranty
- Limited Warranty
- 3 Year

Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C621
- Total Processor Supported
- 1
- Processor Socket
- Socket P LGA-3647
- Processor Supported
- Xeon

Memory
- Number of Memory Slots
- 12
- Memory Form Factor
- RDIMM
- LRDIMM
- DIMM
- Maximum Memory Supported
- 3 TB
- Memory Technology
- DDR4 SDRAM
- Memory Speed Supported
- 2933 MHz
- 2666 MHz

I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10

Video
- Onboard Video
- On-board Video Chipset
- Graphics Controller Manufacturer
- ASPEED
- Graphics Controller Model
- AST2500

Network & Communication
- Gigabit Ethernet
- Yes
- 10Gigabit Ethernet
- Yes

I/O Expansions
- Total Number of Expansion Slots
- 7.0
- Total Number of PCI Express Slots
- 7
- Number of PCI Express x16 Slots
- 7

Interfaces/Ports
- Total Number of USB Ports
- 6
- Number of USB 3.1 Ports
- 6
- VGA
- Yes
- Number of Network (RJ-45) Ports
- 2

Onboard Interfaces
- Number of SATA Interfaces
- 8
- Number of M.2 Interfaces
- 1
- Total Number of Onboard USB Ports
- 6
- Number of Onboard USB 2.0 Ports
- 2
- Number of Onboard USB 3.1 Ports
- 4

Physical Characteristics
- Form Factor
- Extended ATX
- Width
- 12"
- Depth
- 13"

Miscellaneous
- Compatibility
- Supermicro Chassis:

  3U
  - SC835BTQC-R1K23B
  - SC835BTQC-R1K23B
  - SC835TQC-R1K03B
  Mid/Mini-Tower
  - SC732D3-1200B
  - SC732D3-903B
  4U/Tower
  - SC743AC-1200B-SQ
  - SC743TQ-1200B-SQ
  - SC743AC-668B
  - SC745BAC-R1K28B2
  - SC745BTQ-R1K28B-SQ
  - SC747BTQ-R1K62B
  - SC842XTQC-R804B
  - SC842XTQ-R606B
  - SC842TQC-668B
  - SC842TQ-865B
- Country of Origin
- China
