- General Information
- Manufacturer
- Smart Audio Video Innovation
- Manufacturer Website Address
- http://www.smartavi.com
- Brand Name
- SmartAVI
- Product Type
- Video Extender Transmitter

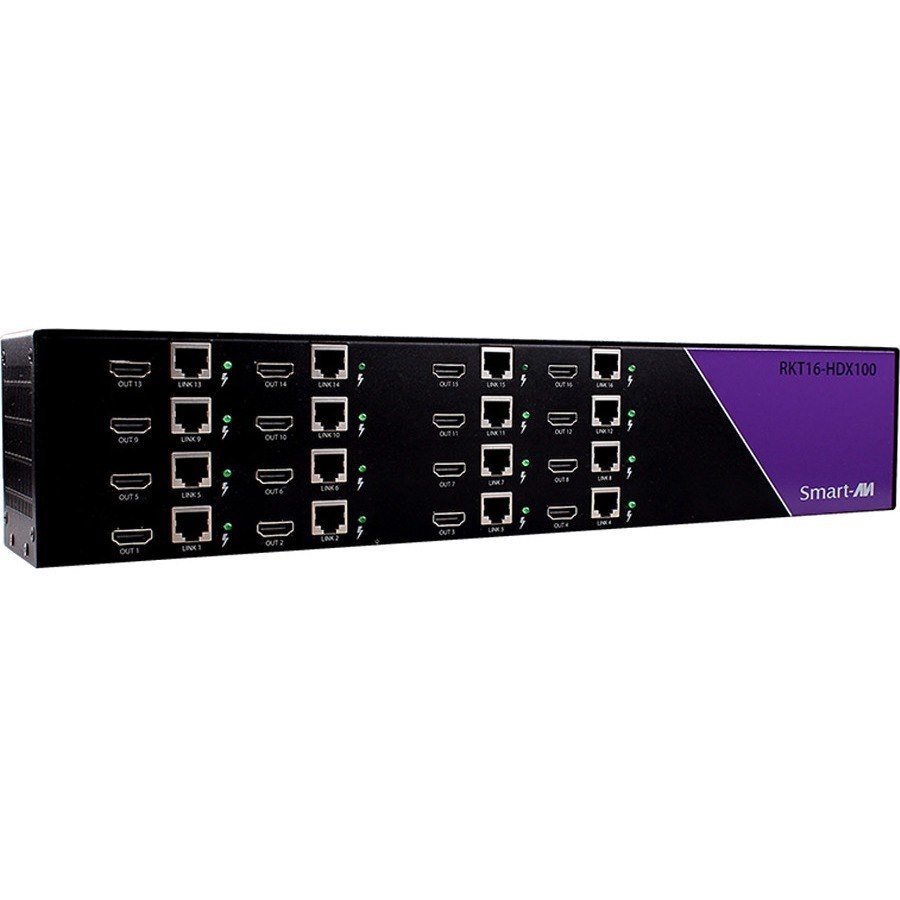

The RKT16-HDX100 is the perfect solution for extending HDMI signals to a remote location up to 150 feet away. It is the ideal way to consolidate up to 16 workstation computers into one location. It is fully compatible with MAC, PC and LINUX HDMI standards. Up to 16 displays can be extended easily from a rack without the mess or expense of multiple extenders. Rather than buy multiple extenders for your rack components, and having to find power strips or numerous power outlets for the adapters, our rack series of extenders allows for up to 16 inputs and 16 outputs and one power supply.
FEATURES:
- Supports up to 16 HDMI sources
- Supports High Resolution 1920x1200 60Hz WUXGA
- Extends up to 150 feet with CAT5e/CAT6 STP cables
- Zero pixel loss with TMDS signal correction
- DDC from internal table
- Compatible with all operating systems
- Local HDMI output for each port
- HDMI 1.3 and HDCP compliance
- Compatible with all major DVD players
- Rack Mountable Solution
- Data recovery for digital video
- Plug-and-play ready
- Uncompressed Video
- Warranty
- Limited Warranty
- 1 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Input Devices Supported
- 16
- Maximum Operating Distance
- 150 ft
- Video
- Maximum Video Resolution
- 1920 x 1200
- Interfaces/Ports
- Network (RJ-45)
- Yes
- HDMI In
- Yes
- HDMI Out
- Yes
- Number of Network (RJ-45) Ports
- 16
- Number of HDMI Inputs
- 16
- Number of HDMI Outputs
- 16
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6
- Physical Characteristics
- Transmitter Height
- 3.50"
- Transmitter Width
- 17"
- Transmitter Depth
- 3.25"
- Form Factor
- Rack-mountable
- Transmitter Weight (Approximate)
- 10 lb
- Miscellaneous
- Country of Origin
- United States
