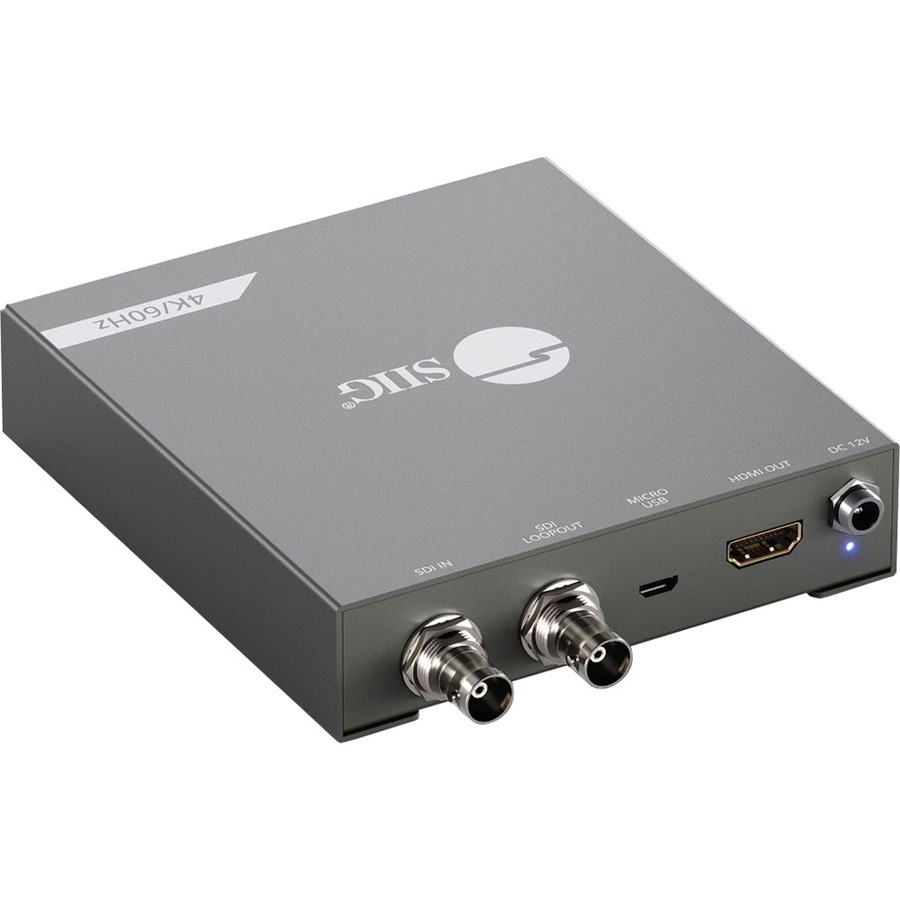

Converts a single 12G-SDI source signal into one HDMI and one SDI Loopout simultaneously
- Lossless Conversion - Converts 12G/6G/3G/HD/SD SDI signal to HDMI with resolution up to 4K@60Hz
- SDI Loop-out - An additional 12G/6G/3G/HD/SD-SDI monitor/display connection. Bit rate support: 11.88 Gbps, 11.88/1.001 Gbps, 5.94 Gbps, 5.94/1.001 Gbps, 2.97 Gbps, 2.97/1.001 Gbps, 1.485 Gbps, 1.485/1.001 Gbps, 270 Mbps
- Audio extraction - Supports audio extraction to stereo audio output, PCM 7.1
- Long cable distance - Supports 12G-SDI up to 264ft, 6G/-SDI up to 363ft, and 3G-SDI up to 726ft
- Future compatibility - USB firmware upgradable for expanding compatibility
- Wall-mountable design - For easy and convenient installation
- High quality components - FCC, CE, RoHS, and TAA compliant
- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- Signal Converter
- Warranty
- Limited Warranty
- 3 Year
- Technical Information
- Functions
- Signal Conversion
- Audio Extraction
- Video Signal Format
- PAL
- NTSC
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- SDI
- Yes
- Number of SDI Inputs
- 1
- Number of SDI Outputs
- 1
- Physical Characteristics
- Form Factor
- Wall Mountable
- Height
- 1.1"
- Width
- 4.5"
- Depth
- 5.5"
- Weight (Approximate)
- 0.51 lb
- Miscellaneous
- Package Contents
- 12G-SDI to HDMI 2.0 Converter
- Power Adapter
- Power Cord
- 2 x Mounting Ears
- 4 xScrew kit (3x6mm)
- 2 x Screw kit (4x20mm)
- User Reference Guide
- Country of Origin
- China
- TAA Compliant
- Yes
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
