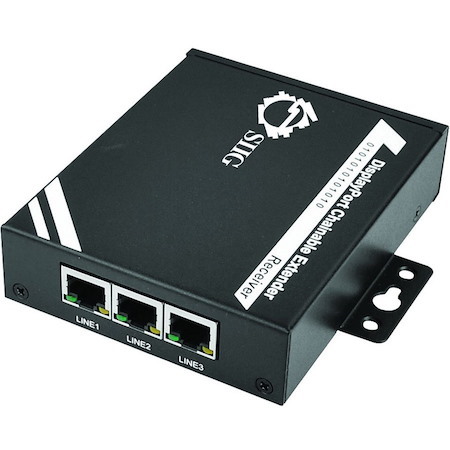

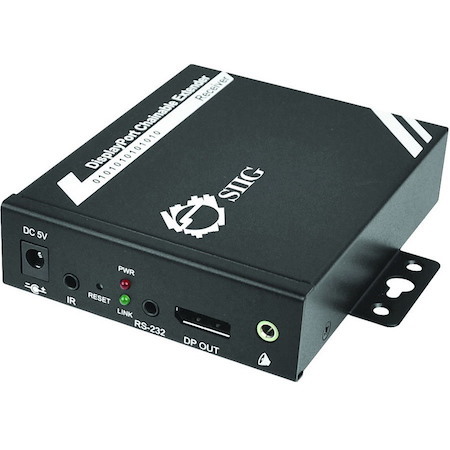

SIIG's DisplayPort to CAT5e Daisy Chain HD Extender Kit with RS-232 & IR - Repeater is designed to receive and extend DisplayPortTM signal from a transmitter to a display at greater distance using economical CAT5/6 cable. This repeater offers RS-232 communication and IR control to execute commands conveniently. And it enables cascade connection to allow for an extensive network of displays setup. Fully HD 1080p resolution is supported, no software or driver is required to install, and the built-in mounting mechanism makes integration convenient and tidy. It is a cost-effective DisplayPort to CAT5e extender solution to extend and broadcast high quality video and audio signal to the remote display(s) utilizing inexpensive network cable.
- General Information
- Manufacturer
- SIIG, Inc
- Manufacturer Website Address
- http://www.siig.com
- Brand Name
- SIIG
- Product Type
- Video Extender Receiver
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wired
- Number of Output Devices Supported
- 1
- Daisy Chain
- Yes
- Maximum Operating Distance
- 328.08 ft
- Video
- Graphics Modes
- Full HD
- Maximum Video Resolution
- 1920 x 1080
- Interfaces/Ports
- Network (RJ-45)
- Yes
- DisplayPort
- Yes
- Serial Port
- Yes
- Number of Network (RJ-45) Ports
- 3
- Media & Performance
- Media Type Supported
- Twisted Pair
- Twisted Pair Cable Standard
- Category 6
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Physical Characteristics
- Product Color
- Black
- Product Material
- Metal
- Receiver Height
- 3.58"
- Receiver Width
- 4.53"
- Receiver Depth
- 1.10"
- Receiver Weight (Approximate)
- 13.76 oz
- Miscellaneous
- Package Contents
- 1 x Video Console
- Power Adapter 5V/2A
- 3.5mm to RS-232 Cable
- IR Rceiver Cable
- Installation Guide
- Additional Information
- Extend DisplayPort signals up to 100m over Cat5e/6 cabling
- Cascade receivers up to 10 layers
- Supports video high resolution Full HD 1080p, 1920x1080@60Hz
- Supports local DisplayPort and audio output
- Supports RS-232 (Serial) and IR (Infrared remote)
- Hot pluggable
- Metal housing with mounting mechanism
- Country of Origin
- Taiwan
- Environmentally Friendly
- Yes
