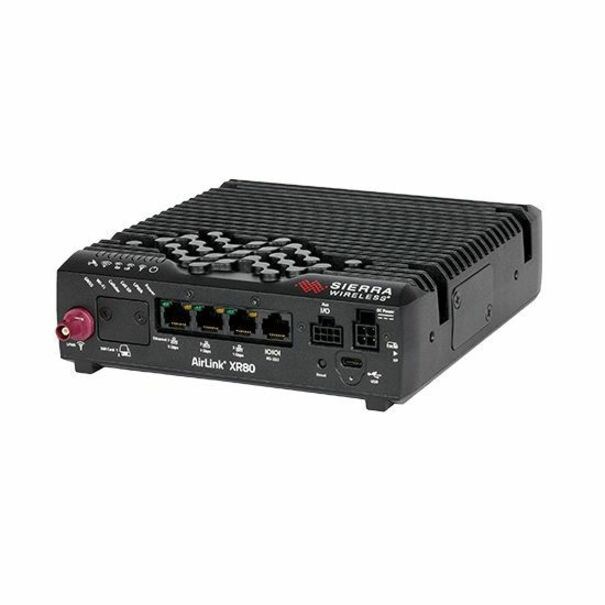

The supercharged AirLink XR80 is optimized for fixed and mobile applications. The available dual-5G cellular radio and 5×4 MU MIMO Wi-Fi 6 delivers flexibility for customized configurations. The AirLink XR80 supports complete device-to-cloud security, reduces your total cost of ownership with ALMS Out-of-Band management, and with the cartridge-based design, enables long-term expandability and upgradability.
- Single or Dual 5G
- Single 5×4 MU-MIMO Wi-Fi 6
- Single 5G: 3x Ethernet
- (2×1 Gbps + 1×5 Gbps)
- Dual 5G: 4x Ethernet
- (3×1 Gbps + 1×5 Gbps)
- Single/Dual Serial
- GNSS with Dead Reckoning
- IP64 Rated
- AirLink OS with AirLink Complete
- General Information
- Manufacturer
- Sierra Wireless
- Manufacturer Website Address
- http://www.sierrawireless.com
- Brand Name
- Sierra Wireless
- Product Line
- AirLink
- Product Type
- Modem/Wireless Router
- Warranty
- Limited Warranty
- 1 Year
- Additional Warranty Information
Extended hardware warranty up to 5 years with current subscription
- Technical Information
- Wi-Fi Generation
- Wi-Fi 6
- Network Band
- Dual Band
- MU-MIMO Technology
- Yes
- Processor Core
- Quad-core (4 Core)
- Standard Memory
- 200 MB
- Wireless Specifications
- Broadband Transmission Technology
- Ethernet
- Cellular
- Wireless LAN Standard
- IEEE 802.11ax
- ISM Band
- Yes
- UNII Band
- Yes
- ISM Maximum Frequency
- 2.40 GHz
- UNII Maximum Frequency
- 5 GHz
- Cellular Generation
- 5G
- Cellular Data Connectivity Technology
- LTE
- HSDPA+
- LTE Cat 20
- HSPA+
- Total Wireless Transmission Speed
- 300 MB/s
- Encryption Standard
- AES (128-bit)
- AES (192-bit)
- AES (256-bit)
- SHA-256
- SHA-384
- SHA-512
- WPA3-Personal
- WPA3-ENT
- WPA2-ENT
- WPA2-Personal
- Firewall Type
- NAT
- Interfaces/Ports
- Total Number of Network Ports
- 4
- Number of Network (RJ-45) Ports
- 3
- USB
- Yes
- Number of Broadband (RJ-45) Ports
- 1
- USB Standard
- USB 3.1 Type C
- Network & Communication
- Ethernet Technology
- 5 Gigabit Ethernet
- VPN Supported
- Yes
- Multi-SIM Supported
- Yes
- Number of SIM Card Supported
- 2
- SIM Size Supported
- Mini
- Storage
- Flash Memory Capacity
- 750 MB
- Physical Characteristics
- Product Material
- Aluminum
- Form Factor
- DIN Rail Mountable
- Height
- 2.1"
- Width
- 8.7"
- Depth
- 6.7"
- Weight (Approximate)
- 4.41 lb
- Miscellaneous
- Package Contents
- AirLink XR80 Modem/Wireless Router
- DC Power Cable
- LPWA Antenna
- Quick Start Guide
- AirLink Complete Leaflet
- Certifications & Standards
- FCC
- IC/ISED
- PTCRB
- AT&T
- T-Mobile, Verizon, Rogers
- Telus
- Bell
- CBRS
- C-Band
- IECEE Certification Bodies Scheme (CB Scheme)
- UL 60950
- E-Mark (72/245/EEC, 2009/19/EC)
- ISO7637- 2
- SAE J1455 (Shock & Vibration, Electrical)
- EN50155/EN45545
- MIL-STD-810G
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS) 2
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
