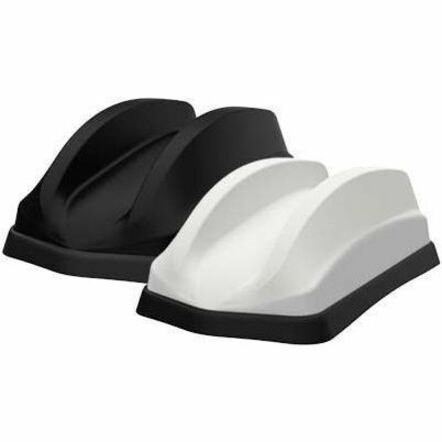

The 9-in-1 Dual Sharkfin is a specialized antenna solution engineered and certified for AirLink XR90 mobility applications. The antenna has a sleek sharkfin-style housing featuring a 4x4 MiMo for 4G/5G (617-6000MHz), dual-band 2.5/5GHz Wi-Fi, and GNSS with an integrated gain 26dB LNA for optimized performance.
- General Information
- Manufacturer
- Sierra Wireless
- Manufacturer Website Address
- http://www.sierrawireless.com
- Brand Name
- Sierra
- Product Type
- Antenna
- Technical Information
- Directivity
- Omni-directional
- Operating Frequency Range
- 617MHz - 960MHz
- 1427MHz - 6000MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 6.7 dBi
- Voltage Standing Wave Ratio (VSWR)
- <2.1 ± 4MHz
- Interfaces/Ports
- Connector Type
- FAKRA D
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Height
- 3.23"
- Width
- 5.59"
- Depth
- 9.96"
- Form Factor
- Bolt Mount
- Miscellaneous
- Application/Usage
- Cellular Network
- Package Contents
- Wireless Antenna - 9-in-1 Dual Sharkfin
- Extension Cables
- Foam Pad
- Mounting Bolt
- Centre Sealing Pad
- Compatibility
- Airlink XR90 Series 5G Router
