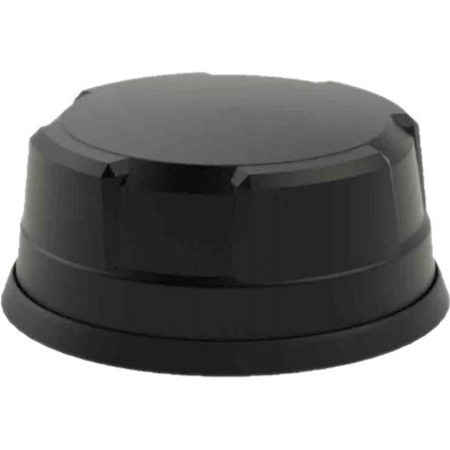

The 5-in-1 Dome is a custom single antenna solution for the RV55 Dual Wi-Fi, tested and certified for mobile application.
The antenna has a low-profile design that contains five isolated high performance antenna elements in a single housing for optimal coverage; two ultra-wideband elements spanning 617-6000MHz; a high performance GNSS antenna with an integrated 26dB gain LNA; and two dual band 2.4/5GHz omni-directional Wi-Fi elements.
- General Information
- Manufacturer
- Sierra Wireless
- Manufacturer Website Address
- http://www.sierrawireless.com
- Brand Name
- Sierra Wireless
- Product Line
- AirLink
- Product Type
- Antenna
- Technical Information
- Directivity
- Omni-directional
- Operating Frequency Range
- 617 MHz to 960 MHz
- 1710 MHz to 3800 MHz
- 2.4 GHz
- 4.9 GHz to 6 GHz
- Antenna Gain
- 26 dB
- Physical Characteristics
- Product Color
- Black
- Height
- 3.15"
- Diameter
- 7.09"
- Form Factor
- Screw Mount
- Miscellaneous
- Application/Usage
- Wireless Data Network
- Cellular Network
- GPS
- Wireless Router
- Compatibility
- Sierra Wireless AirLink RV55 Rugged LTE-Advanced Pro Router
