- General Information
- Manufacturer
- Sierra Wireless
- Manufacturer Website Address
- http://www.sierrawireless.com
- Brand Name
- Sierra Wireless
- Packaged Quantity
- 1
- Product Type
- Antenna
- Package Type
- Retail

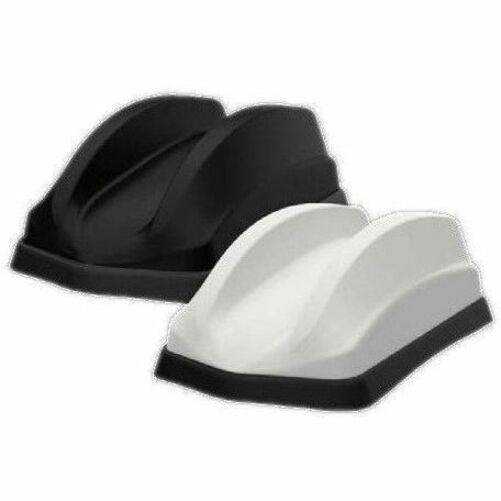

Sierra Wireless Antenna - 10-in-1 Dual Sharkfin The 10-in-1 Dual Sharkfin is a specialized antenna solution engineered and certified for AirLink XR80 mobility applications. The antenna has a sleek sharkfin-style housing featuring a 4x4 MiMo for 4G/5G (617-6000MHz), dual-band 2.5/5GHz Wi-Fi, and GNSS with an integrated gain 26dB LNA for optimized performance.
- Technical Information
- Directivity
- Omni-directional
- Maximum Antenna Range
- 6.6 ft
- Frequency Band Type
- RF
- Operating Frequency Range
- 617 MHz to 960 MHz
- 1427 MHz to 6000 MHz
- Antenna Gain
- 26 dB
- Antenna Gain (Isotropic)
- 7.2 dBi
- Antenna Type
- Panel
- Voltage Standing Wave Ratio (VSWR)
- <0.2
- Interfaces/Ports
- Connector Type
- FAKRA
- Physical Characteristics
- Color Family
- White
- Product Color
- White
- Mast Material
- Plastic
- Height
- 3.23"
- Width
- 5.59"
- Form Factor
- Adhesive Mount
- Bolt Mount
- Miscellaneous
- Application/Usage
- Router
- Cellular Network
- GPS
- Gateway
- Package Contents
- Dual Sharkfin Antenna with pigtails
- Extension Cables
- Foam Pad
- Mounting Bolt
- Center Sealing Pad
