- General Information
- Manufacturer
- Shure, Inc
- Manufacturer Website Address
- http://www.shure.com
- Brand Name
- Shure
- Product Type
- Wireless Access Point

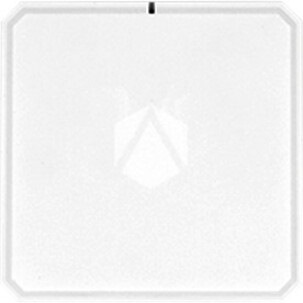

The AD610 ShowLink® access point enables real-time remote control of all ShowLink-enabled Axient® transmitters, including both ADX and AXT series models. The access point allows comprehensive management of transmitter parameters from the receiver or Wireless Workbench® using 2.4 GHz (IEEE 802.15.4) wireless communication. All parameter changes occur without interruption to the performer
FEATURES
- Wireless network connectivity between all linked transmitters and access points
- Enables real-time wireless remote control of up to 24 transmitters per access point
- ShowLink offers ability to adjust gain, change frequencies, mute signals and more
- True Diversity antenna scheme maintains a robust link in the 2.4 GHz frequency range
- Automatic channel selection scans the 2.4 GHz range for the best channel. Scans can be saved for future analysis in Wireless Workbench
- Automatic frequency agility moves he network to the best available channel if signal degrades
- Is compatible with Axient Digital ADX series and Axient analog (AXT series) systems.
- Technical Information
- Network Band
- Single Band
- Frequency Band
- 2.40 GHz
- Total Number of Antennas
- 2
- Number of External Antennas
- 2
- Indoor/Outdoor
- Outdoor
- Interfaces/Ports
- Ethernet Technology
- Fast Ethernet
- Number of Network (RJ-45) Ports
- 1
- Physical Characteristics
- Antenna Form Factor
- External
- Height
- 7.5"
- Width
- 4"
- Depth
- 1.9"
- Weight (Approximate)
- 1.02 lb
- Miscellaneous
- Package Contents
- AD610 Showlink Wireless Access Point
- WA371 Wireless Microphone Clip for Mounting on a Microphone Stand
- 31A1856 Euro Thread Adapter for WA371
- C825 Shielded 25-foot Ethernet Cable for ShowLink Access Point, RJ45-to-EtherCon Connection
- PS43 Power Supply
