- General Information
- Manufacturer
- Sharp Electronics
- Manufacturer Website Address
- http://www.sharpusa.com
- Brand Name
- Sharp
- Product Series
- LD-AF
- Product Type
- Digital Signage Display
Sharp's new LD-AF Series of direct view LED displays offer a streamlined, user-friendly solution that differs from standard LED walls. Unlike traditional direct view LED displays, which often require additional components like external controllers or speakers, Sharp's LD-AF Series features built-in speakers, remote control functionality, and an intuitive interface for easy setup and operation. Designed for simplicity and convenience, these displays provide a unified user experience across Sharp's line of system-on-chip (SoC) displays, and a streamlined installation process. Available in 138" and 165" diagonal sizes, they deliver Full HD (1920x1080) imagery, making them perfect for environments like conference rooms and meeting spaces that need a high-quality, hassle-free display.
- Full HD (1920x1080) native resolutionwith a 138" class diagonal for crystal clear and immersive imagery
- Quick and easy installation processwith a single power cable and a hassle-free installation process, the Sharp LD-AF Series can be implemented in as little as two hours

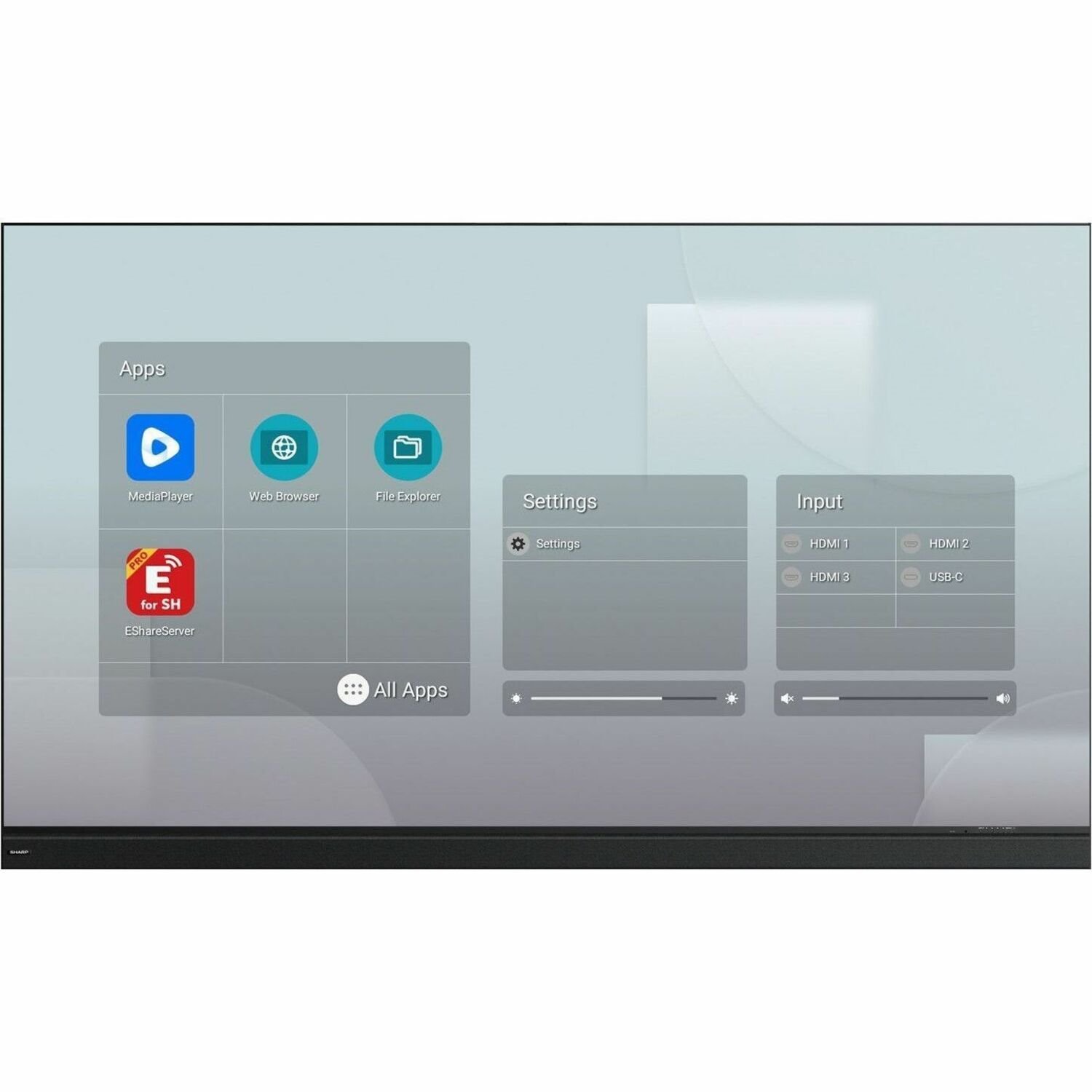

- Powerful System-on-Chip for versatile functionalitypowered by Android 13 with a high-end integrated media player, as well as support for third-party applications (APKs) as needed
- Integrated USB-C connectionthat not only allows for DP-Alt mode, but also upstream cababilities for controlling peripherals through the separate USB-A downstream connection
- NaViSet Administratoris Sharp's proprietary software solution that greatly eases administration and management of larger disply device installations. Control your entire Sharp display ecosystem through this optional software
- Fully compatiblewith Crestron Connected software as well as Crestron XiO Cloud Service
- To learn more about Sharp's LD-AF Series,
- Please contact Sharp or your local AV dealer for information on pricing including installation.
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Video Wall Compatible
- Yes
- Ingress Protection (IP) Rating
- IP20
- Minimum Color Temperature
- 4940.3°F (2726.8°C)
- Maximum Color Temperature
- 16640.3°F (9226.8°C)
- Processor & Chipset
- Processor Manufacturer
- ARM
- Processor Type
- Cortex A55
- Processor Speed
- 1.50 GHz
- Processor Core
- Quad-core (4 Core)
- Memory
- Standard Memory
- 4 GB
- Display & Graphics
- Number of Screens
- 1
- Viewable Screen Size
- 11.50 ft
- Screen Size Class
- 11.50 ft
- Display Screen Type
- LCD
- Display Resolution
- 1920 x 1080
- Pixel Pitch
- 59.1 mil
- Aspect Ratio
- 16:9
- Backlight Technology
- Direct View LED
- Orientation
- Landscape
- Module Resolution
- 384 x 216
- Maximum LED Life
- 11.4 Year
- Pixel Configuration
- 3-in-1 SMD
- Video
- Scan Format
- 1080p
- Dynamic Contrast Ratio
- 6,500:1
- Color Depth
- 16-bit
- Brightness
- 500 Nit
- Network & Communication
- Ethernet
- Yes
- Interfaces/Ports
- USB
- Yes
- HDMI
- Yes
- Serial
- Yes
- Number of USB 2.0 Ports
- 1
- Number of USB 3.0 Ports
- 2
- Number of HDMI Inputs
- 3
- USB Type-C
- Yes
- RS-232C Input
- Yes
- Digital Audio Optical Output
- Yes
- Number of HDMI 2.0 Ports
- 3
- Software
- Operating System
- Android 13
- Environmental Conditions
- Minimum Operating Temperature
- -4°F (-20°C)
- Maximum Operating Temperature
- 104°F (40°C)
- Minimum Storage Temperature
- -4°F (-20°C)
- Maximum Storage Temperature
- 113°F (45°C)
- Minimum Operating Humidity
- 10%
- Maximum Operating Humidity
- 80%
- Minimum Storage Humidity
- 10%
- Maximum Storage Humidity
- 85%
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black
- Mount Type
- Wall Mountable
- Mount Surface
- Wall
- Height
- 72.2"
- Width
- 10 ft
- Depth
- 3"
- Weight (Approximate)
- 304.20 lb
- Miscellaneous
- Package Contents
- LD-A1381F Digital Signage Display
- Wall Mount
- Wireless remote control
- Power cord
- Indoor/Outdoor
- Indoor
- Application/Usage
- Conference Room
- Meeting Room
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
