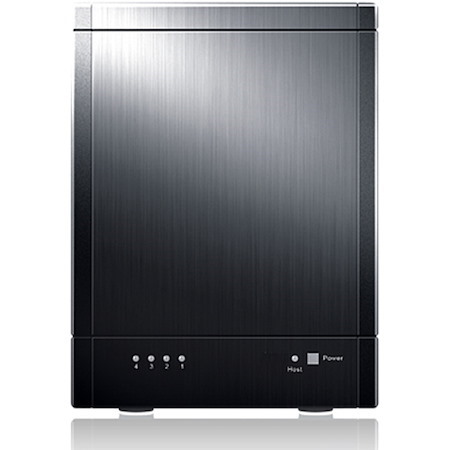

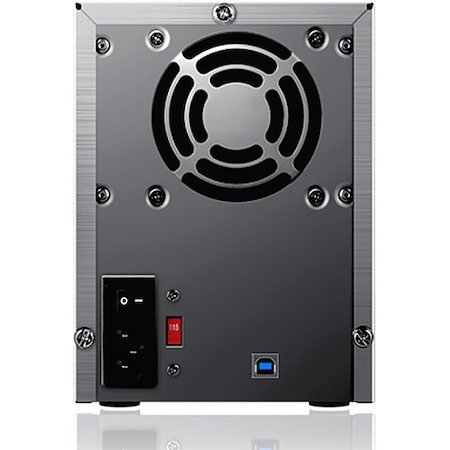

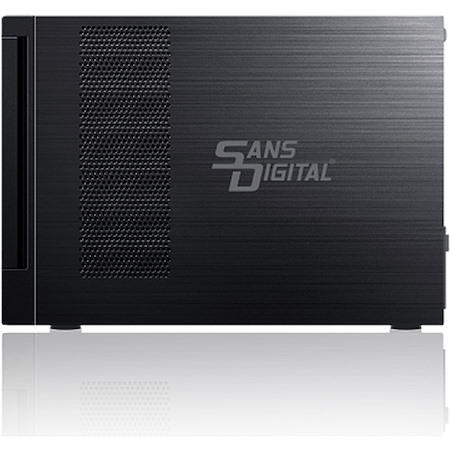

The TowerRAID TR4U+B is an 4-bay storage enclosure for high capacity storage needs. With a built-in ventilating protective screen front panel, both units utilize a cable-less backplane-design to support up to four hard drives. Connecting to the USB 3.0 slot for 5Gb/s performance, 4 hard drives can be accessed at the same time using a single USB 3.0 cable. Backwards compatible with USB 2.0, the TR4U+B provides expandable storage with ease. Hard drives are installed on easy access hard drive trays for simple insertion and removal. With support of the latest 3TB hard drives, the TR4U+B is capable of having a total of 16TB in a single tower. Hard drive cooling is provided by a large 3.15" cooling fan located on the back of the unit. Supported in PC, MAC and Linux, the TR4U+B is an ideal solution for your storage needs.
- General Information
- Manufacturer
- Sans Digital
- Manufacturer Website Address
- http://www.sansdigital.com
- Brand Name
- Sans Digital
- Product Line
- TowerRAID
- Product Type
- DAS Storage System
- Warranty
- Limited Warranty
- 1 Year
- Storage
- Number of Hard Drives Supported
- 4
- Total Hard Drive Capacity Supported
- 16 TB
- I/O Expansions
- Number of Total Expansion Bays
- 4
- Number of 3.5" Bays
- 4
- Controllers
- RAID Supported
- Yes
- RAID Levels
- JBOD
- Interfaces/Ports
- Drive Interface
- Serial ATA
- Host Interface
- USB 3.0
- Power Description
- Input Voltage
- 110 V AC
- 220 V AC
- Maximum Power Supply Wattage
- 150 W
- Physical Characteristics
- Height
- 7.1"
- Width
- 5.3"
- Depth
- 10"
- Form Factor
- Tower
- Weight (Approximate)
- 5.90 lb
- Miscellaneous
- Package Contents
- TowerRAID TR4U+B - 4 Bay SATA to USB 3.0 JBOD Enclosure (Black)
- 1 x Power Cord
- 1 x USB 3.0 Cable
- 1 x Screws
- 1 x Quick Installation Manual & CD
- Certifications & Standards
- FCC
- CE
- UL
- Platform Supported
- PC
- Mac
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
