- General Information
- Manufacturer
- Premier Mounts
- Manufacturer Website Address
- http://www.premiermounts.com
- Brand Name
- Premier Mounts
- Packaged Quantity
- 1
- Product Type
- Mounting Arm

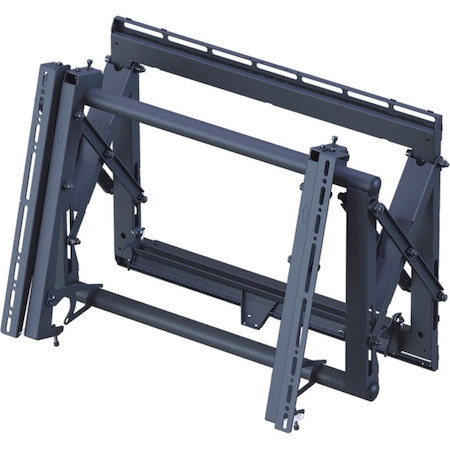

The LMV is a customizable video wall framing system for flat-panels weighing up to 160 lb./72 kg with a mounting pattern of 200 x 200 to 600 x 400mm. It features multi-monitor stacking, spring-loaded release, open design, custom spacers, top adjustable mounting brackets and straight scissor-style extension.
- Warranty
- Limited Warranty
- Lifetime
- Product Information
- Device Supported
- Flat Panel Display
- Number of Displays Supported
- 1
- Maximum Load Capacity
- 160 lb
- Minimum Screen Size Supported
- 37"
- Maximum Screen Size Supported
- 63"
- Maximum Adjustable Depth
- 12"
- Features
- Cable Management
- Tilt
- Rotate
- Locking System
- Physical Characteristics
- Product Color
- Black
- VESA Mount Compatible
- Yes
- Mounting Pattern
- 200 x 200
- 600 x 400
- Height
- 19"
- Width
- 28.49"
- Depth
- 4.88"
- Weight (Approximate)
- 45 lb
- Miscellaneous
- Package Contents
- 1 x Wall Plate
- 2 x Mounting Bracket
- 1 x Security Barrel
- 1 x Thread Depth Indicator
- 6 x M6 Steel Stud Anchors
- 6 x 5/16" Concrete Wedge Anchors
- Mounting Hardware
- Additional Information
- Extension: 12.03 inch (306 mm)
- Spring loaded locking mechanism provides quick release from locked position, press in and the mount will push the display forward
- Model-specific spacers are available for most video wall style flat-panel displays to dramatically cut down the installation time
- Scissor design and compact mounting arms allow the LMV to be pushed in and pulled out in a straight, smooth motion
- Patent pending, top-adjustable display mounting brackets provide alignment along the x, y and z axis to ensure displays line up and remain level
- Click-It locking feature makes an audible sound when a display is locked in its home position
- Compatibility
- LCD TV
- Plasma TV
- Country of Origin
- Taiwan
