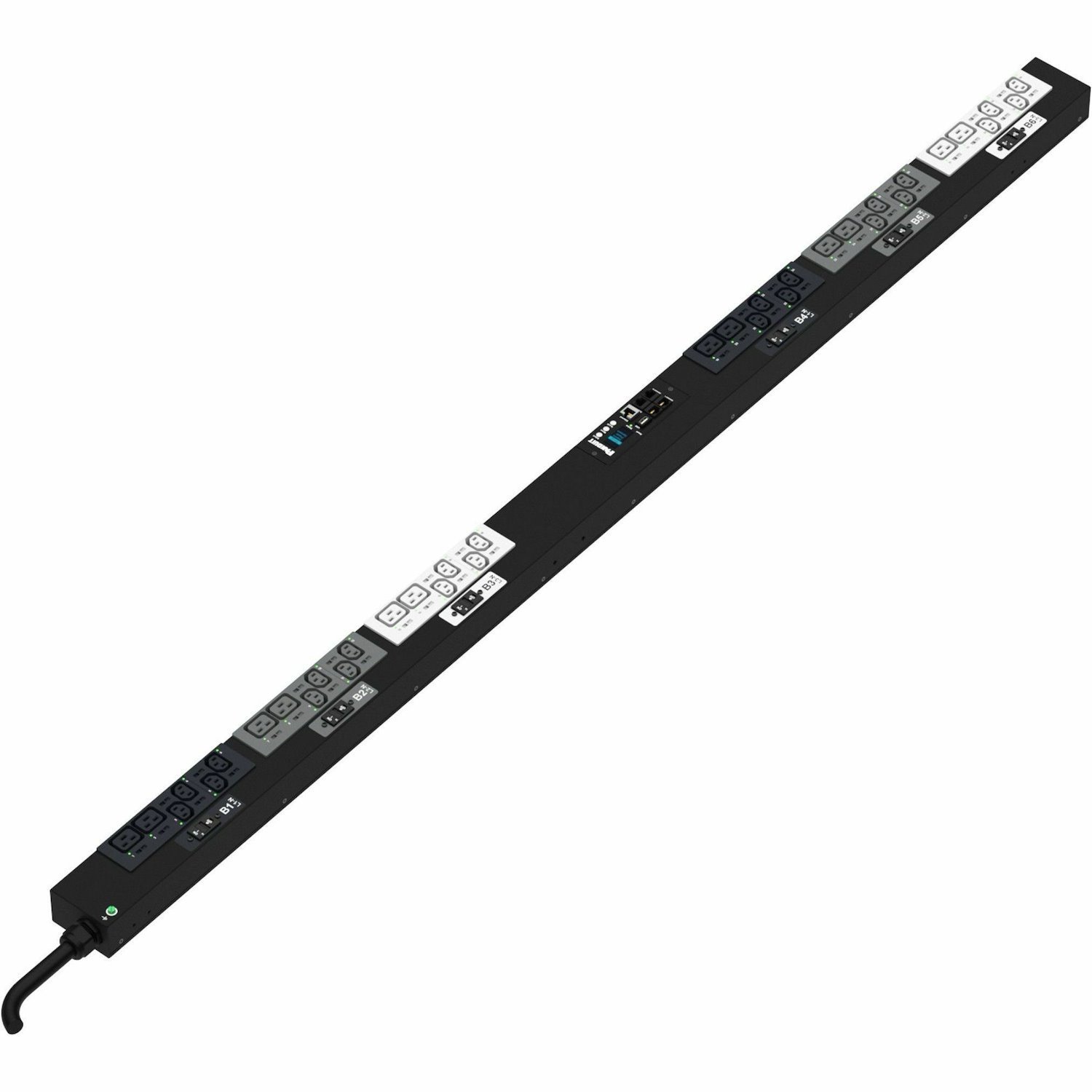

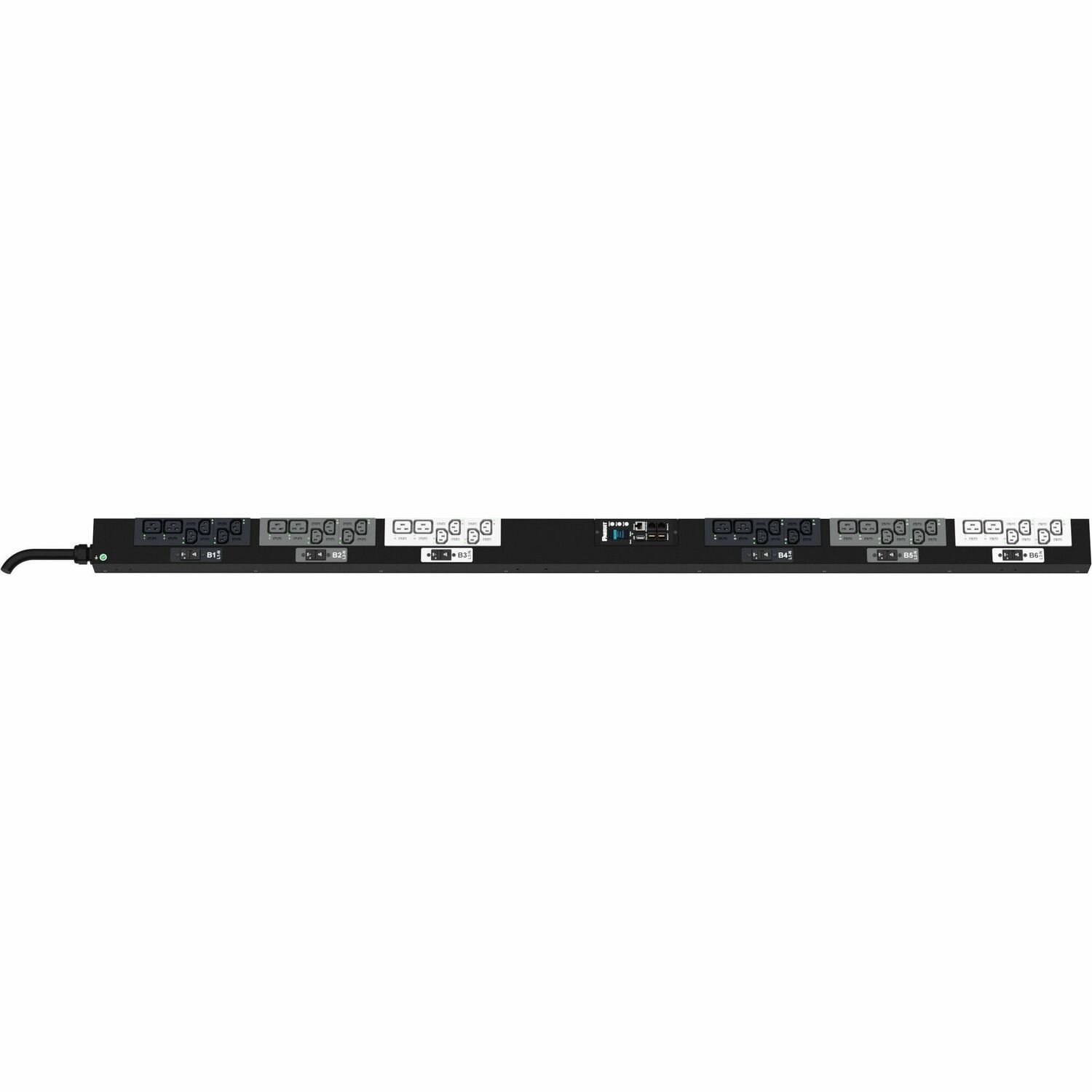

This Panduit™ G5 Monitored Switched PDU features (24) C13 and (12) C19 outlets. It is a 32 amp, 400 V, three phase PDU with an IEC 60309 3P+N+E 6h 32A (IP44) input plug and a 10 foot (3m) power cord.
- General Information
- Manufacturer
- PANDUIT CORP
- Manufacturer Website Address
- http://www.panduit.com
- Brand Name
- Panduit
- Product Series
- G5
- Packaged Quantity
- 1
- Product Type
- PDU
- Technical Information
- PDU Type
- Monitored
- Switched
- Phase
- Three Phase
- Plug/Connector Type
- IEC 60309 3P+N+E 6h 32A (IP44)
- Receptacle Type
- IEC 60320 C13
- IEC 60320 C19
- Receptacle Detail
- 24 x IEC 60320 C13
- 12 x IEC 60320 C19
- Features
- Onboard Display
- Load Capacity (Watt)
- 22 kW
- Power Description
- Input Voltage
- 415 V AC
- Output Voltage
- 230 V AC
- Power Rating (Watt)
- 22 kW
- Input Current
- 32 A
- Input Frequency
- 60 Hz
- Circuit Breaker
- Yes
- Management
- Management
- SNMP
- Network Card
- Remote Outlet Switching
- Yes
- Interfaces/Ports
- Network (RJ-45)
- Yes
- Physical Characteristics
- Color Family
- Black
- Product Color
- Black Powder Coat
- Mounting Orientation
- Vertical
- Rack Height
- 40U
- Cord Length
- 10 ft
- Height
- 69"
- Width
- 3.3"
- Depth
- 2.1"
- Environmental Conditions
- Minimum Operating Temperature
- 50°F (10°C)
- Maximum Operating Temperature
- 140°F (60°C)
- Minimum Storage Temperature
- -4°F (-20°C)
- Maximum Storage Temperature
- 140°F (60°C)
