- General Information
- Manufacturer
- Opticon Sensors Europe
- Manufacturer Website Address
- http://www.opticon.com
- Brand Name
- Opticon
- Product Type
- Barcode Scanner
CCD Bluetooth Barcode Scanner

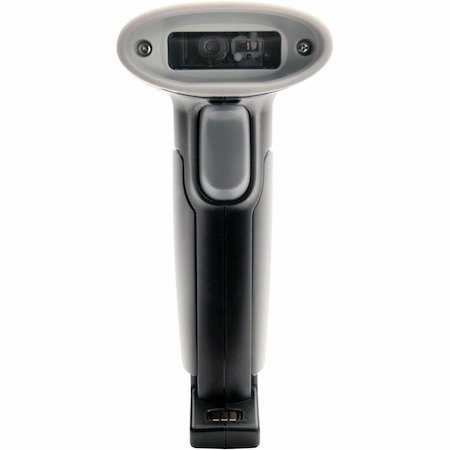

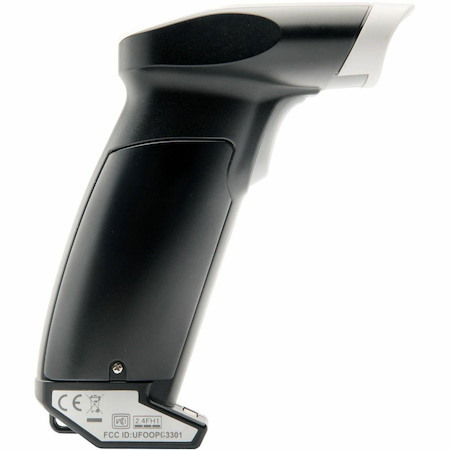

The Opticon OPC-3301i features a high speed, CCD barcode scanner and a lightweight, ergonomic design that is perfect for all day, everyday use in a wide variety of industries including retail, healthcare, warehousing and distribution, and transportation and logistics. The cordless, cable-free freedom of Bluetooth® wireless communication offers the ability to roam away from the host device, which improves productivity and scanning convenience. The OPC-3301i is built to survive and thrive due to its IP42 sealing rating against dust and moisture and 5 foot drop specification. The scanner is also Apple MFI certified for the added ease of connecting and communicating with iOS host devices.
Product highlights include:
- Wireless CCD barcode scanner with enhanced decoding algorithms for ultra-fast (300 scans/second) barcode scanning
- Reads 1D barcodes from LCD screens and mobile phones and capable of scanning negative barcodes (white bars on black spaces)
- Supports Apple MFi, SPP and HID Bluetooth profiles for added flexibility
- Memory: 1MB SDRAM, 1MB Flash ROM
- Small form factor: 2.20" x 5.20" x 4.45" (WxHxD) and 4.3 ounces including battery
- Extremely durable: IP42 rating against dust and moisture and survives 5 foot drop to concrete
- Charges via cradle (CHG-3201-sold separately), Bluetooth dongle available (OPA-3201)
- Backed by a two year warranty
- Warranty
- Limited Warranty
- 2 Year
- Technical Information
- Connectivity Technology
- Wireless
- Scanning Capability
- 1D
- Barcode Symbology Supported
Barcode (1D):
- JAN/UPC/EAN incl. add on
- Codabar/NW-7
- Code 11
- Code 39
- Code 93
- Code 128
- GS1-128 (EAN-128)
- GS1 DataBar (RSS)
- IATA
- Industrial 2of5
- Interleaved 2of5
- ISBN-ISSN -ISMN
- Matrix 2of5
- MSI/Plessey
- S-Code
- Telepen
- Tri-Optic
- UK/Plessey
Postal Code:
- Chinese Post
- Korean Postal Authority code
- Light Source
- LED
- Image Sensor Type
- CCD
- Linear
- Scan Rate
- 300 scan/s
- Scan Mode
- Trigger
- Scanning Distance
- 19.69"
- Features
- Vibration
- Ergonomic Design
- Number of Keys
- 1
- Reading Angle (Skew)
- 65°
- Reading Angle (Pitch)
- 50°
- Reading Angle (Roll)
- 25°
- Maximum Ambient Light
- 100000 lux
- Drop Specification
5 ft (1.5 m) drop onto concrete surface
- Minimum Element Resolution (Code 39)
- 5 mil
- Maximum Element Resolution (Code 39)
- 40 mil
- Memory
- Standard Memory
- 1 MB
- Flash Memory
- 1 MB
- Network & Communication
- Bluetooth
- Yes
- Power Description
- Standby Current
- 15 mA
- Battery Information
- Battery Chemistry
- Lithium Ion (Li-Ion)
- Battery Capacity
- 1100 mAh
- Maximum Battery Recharge Time
- 3 Hour
- Environmental Conditions
- Operating Temperature
- 32°F (0°C) to 122°F (50°C)
- Storage Temperature
- -4°F (-20°C) to 140°F (60°C)
- Humidity (Non-condensing)
- 20% to 85%
- Physical Characteristics
- Form Factor
- Handheld
- Color Family
- Black
- Product Color
- Black
- Product Material
- Acrylonitrile Butadiene Styrene (ABS)
- Durability
- Dust Resistant
- Height
- 5.2"
- Width
- 4.4"
- Depth
- 2.2"
- Weight (Approximate)
- 4.48 oz
- Miscellaneous
- Compatibility
Apple iPhone, iPod, iPad
- Ingress Protection (IP) Rating
- IP42
- Application/Usage
- Industrial
- Retail
- Healthcare
- Warehouse
- Distribution
- Transportation
- Logistics
- Country of Origin
- Japan
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
