Opengear OM appliances are NetOps Console Servers - Network Management appliances that combine the capabilities of a SmartOOB™ Console Server with the flexibility of NetOps Automation.
The compact OM1200 appliance is designed specifically for secure edge deployments, used in combination with Lighthouse Management Software. As a key component of Opengear's Network Resilience Platform, it provides the Presence & Proximity at every location that supports emerging requirements in Network Management and Automation.
- General Information
- Manufacturer
- Opengear
- Manufacturer Website Address
- http://www.opengear.com
- Brand Name
- Opengear
- Product Series
- OM1200
- Product Type
- Device Server
- Warranty
- Limited Warranty
- 4 Year
- Memory
- Memory Technology
- DDR3 SDRAM
- Maximum Memory Supported
- 4 GB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 10/100/1000Base-T
- 1000Base-X
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- Serial Port
- Yes
- Management Port
- Yes
- Number of Network (RJ-45) Ports
- 8
- Number of USB Ports
- 4
- Number of Serial Ports
- 8
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Power Consumption
- 25 W
- Physical Characteristics
- Form Factor
- Rack-mountable
- Desktop
- Height
- 1.7"
- Width
- 8.7"
- Depth
- 6.7"
- Weight (Approximate)
- 2.20 lb
- Miscellaneous
- Package Contents

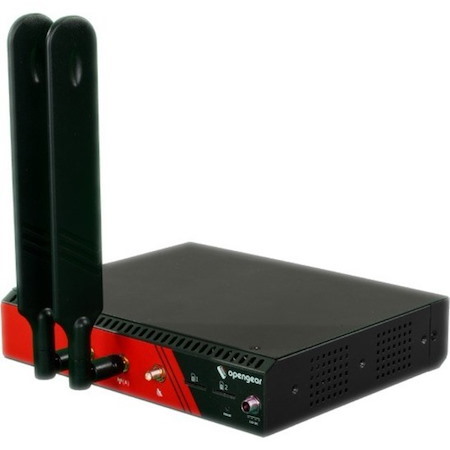

- OM1208-8E-L Device Server
- 1 x Rack Mount Kit
- 1 x DB9F-RJ45 Crossover
- 4 x Rubber Feet
- 1 x 12V Global Power Supply
- Quick Start Flyer
- 2 x Cellular Antennas
- 1 x Cellular Antenna Extender with Magnetic Base
- Additional Information
- Remote Access: Integrated 4G LTE Cellular Card, Dual Ethernet, aggregation & redundancy, Automatic Network Failover, Easy browser UI, IPv6
- CPU: AMD GX-412TC (1.0/1.4GHz 64-bit x86 SoC)
- Boot ROM: 16 MB SPI with password protection
- Internal Storage: 16 GB m.SATA III SSD
- Operating Temperature: 5°C to 50°C, 41°F to 122°F
- Storage Temperature: -40°C to +75°C, -40°F to +167°F
- Humidity: 5% to 90%
- Environmental Monitoring: Internal temperature sensor and external serial EMD5000 device supports physical, smoke, water leak, vibration sensors
- MTBF: 100,000 Hours (Power Supply)
- Certifications & Standards
- Cellular:
- PTCRB
- GCF
- Verizon and AT&T
- EN 55022:2010
- CISPR 22:2008
- FCC Part 15 Subpart B:2015
- ICES-003 Issue 5 (2014)
- AS/NZS CISPR 22:2009+A1:2010
- EN 61000-3-2:2006/A2:2009,
- EN 61000-3-3:2008
- EN 55024:2010
- CISPR 24:2010
- EN 61000-4-2:2009
- EN 61000-4-3:2006+A2:2010
- EN 61000-4-4:2004+A1:2010,
- EN 61000-4-5:2006
- EN 61000-4-6:2009
- EN 61000-4-8:2010
- EN 61000-4-11:2004
- CE
- UL 1950
- TUV
- C-Tick
- Security features to support NERC CIP standards
- FIPS 140-2 validated module Certificate #2473
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- United States
