Opengear OM appliances combine the capabilities of a SmartOOB™ Console Server with the flexibility of Automation.

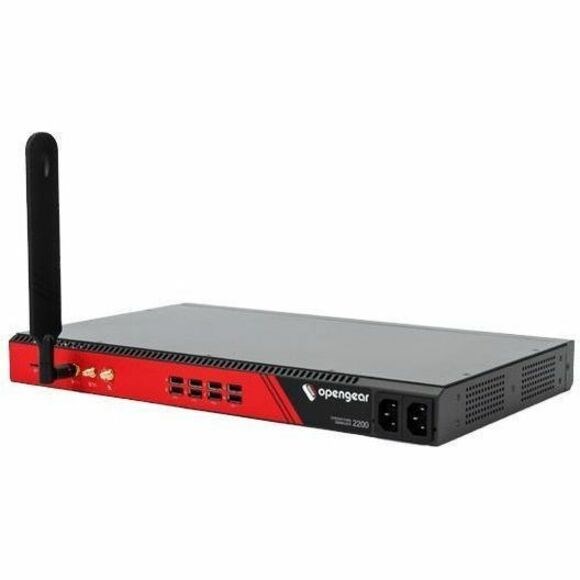

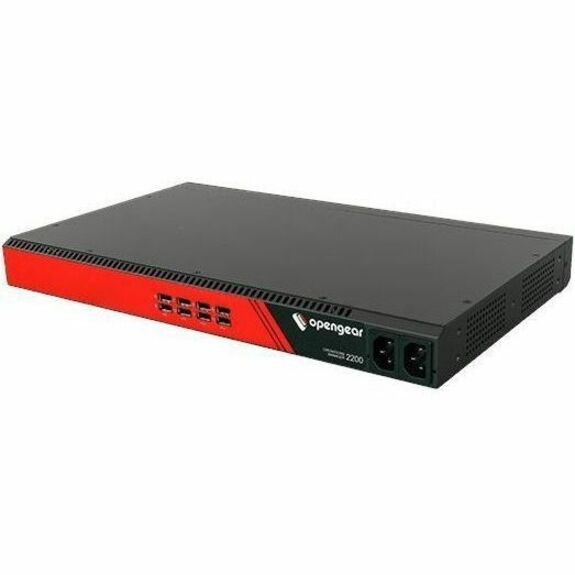

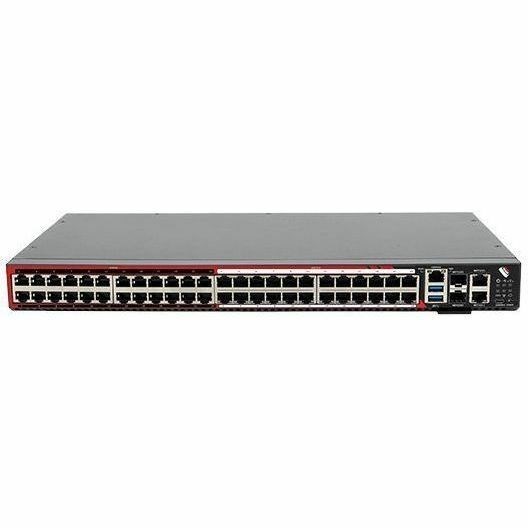

The OM2200 Console Server, managed through our Lighthouse Software, is configured for data centers and high-density locations. As part of Opengear's Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.
- 16, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
- x86 platform supporting Docker and Python
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
- All appliances now ship with two C14 power cables standard
- General Information
- Manufacturer
- Opengear
- Manufacturer Website Address
- http://www.opengear.com
- Brand Name
- Opengear
- Product Series
- OM22xx
- Product Type
- Device Server
- Technical Information
- Device Type
- Console Server
- Connectivity Technology
- Wireless
- Processor & Chipset
- Processor Manufacturer
- AMD
- Processor Speed
- 1.40 GHz
- Memory
- Standard Memory
- 7.81 GB
- Memory Technology
- DDR3 SDRAM
- Maximum Memory Supported
- 64 GB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Network Standard
- 10/100/1000Base-T
- 1000Base-X
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- Serial Port
- Yes
- Management Port
- Yes
- Total Number of Network Ports
- 2
- Number of Network (RJ-45) Ports
- 2
- Number of USB Ports
- 10
- Number of Serial Ports
- 24
- Environmental Conditions
- Minimum Operating Temperature
- 41°F (5°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC - 240 V AC
- Plug/Connector Type
- IEC 60320 C14
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Rack-mountable
- Height
- 1.8"
- Width
- 17.3"
- Depth
- 10.3"
- Weight (Approximate)
- 7.72 lb
- Miscellaneous
- TCO Certified
- Yes
