Opengear OM appliances combine the capabilities of a Smart OOB™ Console Server with the flexibility of Automation.

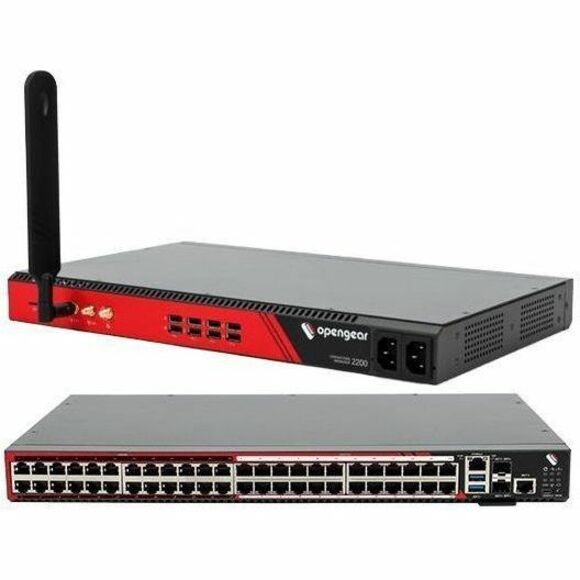

The OM2200 Console Server, managed through our Lighthouse Software, is configured for data centers and high-density locations. As part of Opengear's Network Resilience Platform, it provides a separate, secure management plane that supports advanced automation applications.
- 6, 32, 48 Serial port and 24 Serial/24 Ethernet mixed port models with optional global LTE-A Pro cellular module
- x86 platform supporting Docker and Python
- Smart OOB includes automated port discovery and VLAN support on the OM appliances
- All appliances now ship with two C14 power cables standard
- General Information
- Manufacturer
- Opengear
- Manufacturer Website Address
- http://www.opengear.com
- Brand Name
- Opengear
- Product Series
- OM2200
- Product Type
- Infrastructure Management Equipment
- Physical Characteristics
- Form Factor
- Rack Mount
- Height
- 1.8"
- Width
- 17.3"
- Depth
- 10.3"
- Weight (Approximate)
- 7.70 lb
- Miscellaneous
- Additional Information
- 24 selectable serial ports + 24x 1GbE switch
- x86 4-core CPU
- 8G RAM
- 64G SSD
- 10GbE SFP+
- Docker Support
- TPM 2.0
- 4G LTE-A Pro Global
- C14 Power Cord
- 1 x micro USB 2.0 Console Port and 1 x RJ45 Serial
- 8 x USB 2.0 ports for device console management
- 2 x USB 3.0 Host Ports for storage
- 2 x 10/100/1000 Ethernet/SFP Fiber port
Environmental:
- Ambient Operating Temperature: 5°C to 50°C, 41°F to 122°F
- Storage Temperature: -30°C to +60°C, -22°F to +140°F
- Humidity: 5% to 90%
Security and Authentication:
- Trusted Platform Module 2.0
- AAA - TACACS+
- SSH
- Embedded Firewall
- OpenVPN - Lighthouse Connection
Cellular Specifications:
- SIM Slot: Dual Push Click 2FF SIM slots
- Modem Device: These models utilize the Sierra Wireless EM7565. This a global cellular module certified CE, FCC, GCF, IC, JRF/JPA, NCC, PTCRB
- Connectors: 2 x SMA connectors for cellular with diversity and 1 x SMA connector for GPS
- Air Interface: LTE-A Pro (LTE-LAA), HSPA+
- Frequency Bands:4G LTE B1, B2, B3, B4, B5, B7, B8, B9, B12, B13, B18, B19, B20, B26, B28, B29, B30, B32, B41, B42, B43, B46, B48, B66 3G HSPA+ B1, B2, B4, B5, B6, B8, B9, B19
- Data Services: Transfer rate (peak): Download 600 Mbps/Upload 150 Mbps CAT-12
