- General Information
- Manufacturer
- Opengear
- Manufacturer Website Address
- http://www.opengear.com
- Brand Name
- Opengear
- Product Series
- CM8100
- Product Type
- Device Server

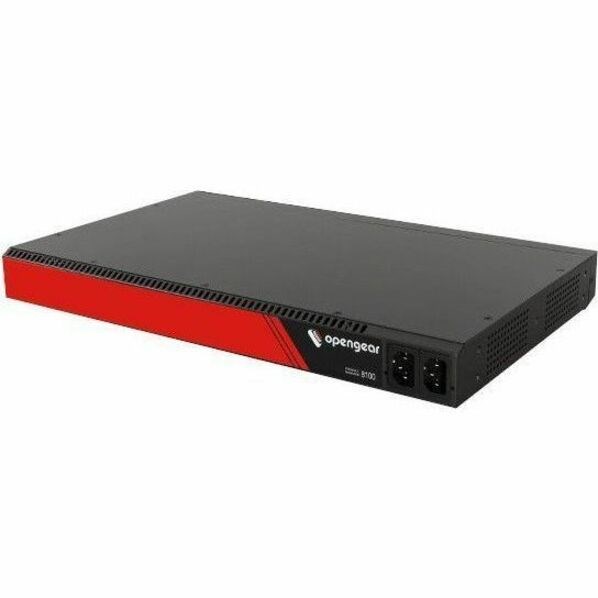

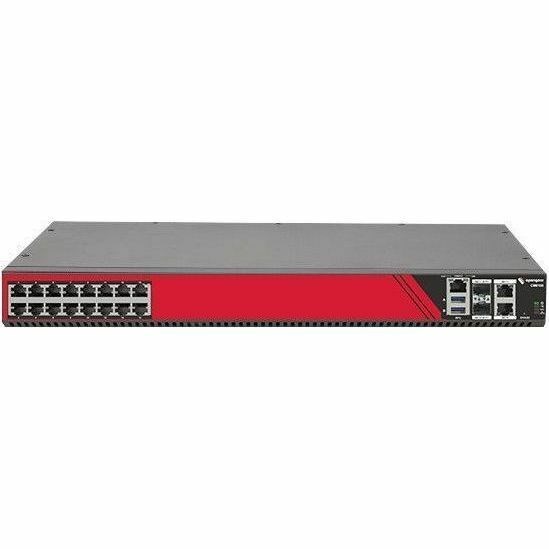

The CM8100 series is Opengear's latest console manager, specifically designed for data centers, enterprise networks, and edge locations. It offers options for 1GbE, 10GbE, and 10GbE-5G, enhancing out-of-band management capabilities. This series includes select models equipped with 5G cellular technology and supports up to 96 serial ports. With a TPM 2.0 module, it ensures enterprise-grade security.
Host containerized applications to run across any platform or automation tools providing more agility and efficiency. Manage at scale through Opengear's Lighthouse® Software.
- 16, 32, 48, and 96 port serial console server with Smart Out-of-Band™
- REST API support for automation tools, Docker, and Python scripting
- 5G cellular modem for enhanced bandwidth, lower latency, and reliability
- Hardware-based TPM 2.0 provides secure boot
- Dual power supplies with independent monitoring
- 10Gb SFP+ uplinks connect directly to high-speed networks in select models
- Port auto-discovery simplifies configuration of serial settings and port labels
- Eliminates the need for serial adapters with selectable software serial ports in select models
- Warranty
- Limited Warranty
- 4 Year
- Technical Information
- Device Type
- Console Server
- Connectivity Technology
- Wired
- Processor & Chipset
- Processor Manufacturer
- ARM
- Processor Speed
- 1.60 MHz
- Memory
- Standard Memory
- 1.95 GB
- Memory Technology
- DDR4 SDRAM
- Maximum Memory Supported
- 32 GB
- Media & Performance
- Media Type Supported
- Twisted Pair
- Optical Fiber
- I/O Expansions
- Total Number of Expansion Slots
- 2
- Expansion Slot Type
- SFP+
- Network & Communication
- Ethernet Technology
- 10 Gigabit Ethernet
- Network Standard
- 10GBase-X
- 1000Base-T
- Interfaces/Ports
- Network (RJ-45)
- Yes
- USB
- Yes
- Serial Port
- Yes
- Management Port
- Yes
- Total Number of Network Ports
- 2
- Number of Network (RJ-45) Ports
- 2
- Number of USB Ports
- 2
- Number of Serial Ports
- 16
- Environmental Conditions
- Minimum Operating Temperature
- 41°F (5°C)
- Maximum Operating Temperature
- 122°F (50°C)
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Input Voltage Range
- 100 V AC -240 V AC
- Plug/Connector Type
- IEC 60320 C14
- Frequency
- 50 Hz
- 60 Hz
- Physical Characteristics
- Form Factor
- Rack-mountable
- Miscellaneous
- Certifications & Standards
Emissions:
- FCC Part 15 Subpart B:2021 Class A
- ICES-003 Issue 7
- AS/NZS CISPR 32:2015
- EN 55035:2017
- EN 55032:2017
- VCCI-CISPR 32:2016
- CNS 13438:2006-6
Immunity:
- EN 61000-3-2-2019
- IEC 61000-3-2:2018
- EN/IEC 61000-3-3:2013
- EN 61000-4-2:2009
- IEC 61000-4-2:2008
- EN 61000-4-3:2006:+ A1:2008 +A2:2010
- IEC 61000-4-3:2006 + A1:2007 + A2:2010
- EN/IEC 61000-4-4:2012
- IEC 61000-4-8:2009
- EN/IEC 61000-4-11:2004
- CE
- IEC 1950
- IEC 62368
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
