- General Information
- Manufacturer
- Omnitron Systems
- Manufacturer Website Address
- http://www.omnitron-systems.com
- Brand Name
- Omnitron Systems
- Product Line
- OmniConverter
- Package Type
- Retail
- Product Type
- Transceiver/Media Converter

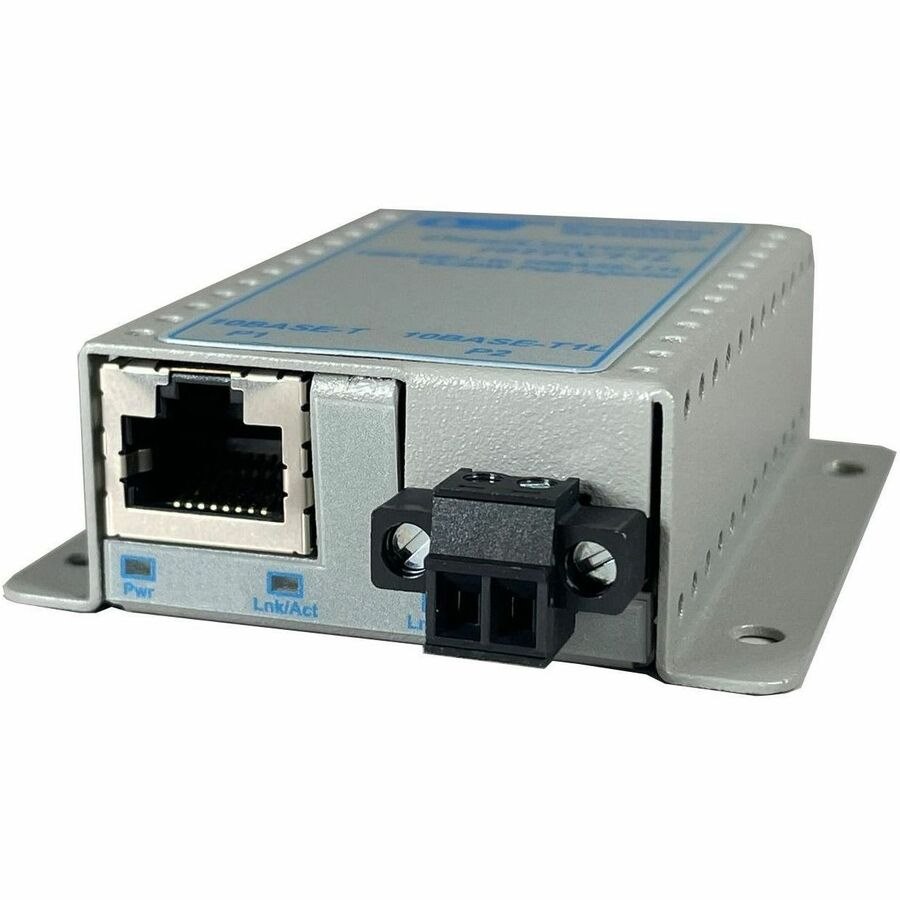

The OmniConverter 10T/T1L is a family of IEEE 802.3cg compliant products that converts 10BASE-T Ethernet to single-pair 10BASE-T1L Ethernet. They use single-pair Ethernet cabling (SPE) to extend the Ethernet link distance up to 1km.
The OmniConverter 10T/T1L features one 2-pin terminal block 10BASE-T1L IEEE 802.3cg compliant port and one 10BASE-T RJ-45 port supporting 10Mbps full-duplex data rates. The 10TPS/T1L supports IEEE 802.3at (PoE+) on the 10BASE-T RJ-45 port.
The OmniConverter 10T/T1L achieves seamless Ethernet connectivity to IEEE 802.3cg compliant devices, such as field transmitters, building controllers or cameras.
The modules are plug-and-play devices that support 10Mbps data rates and full duplex for simple in-line installation to instantly extend network distances for industrial and inbuilding automation applications.
They are available as a standalone unit with or without integrated mounting brackets. It can be DIN-rail mounted using the optional DIN-rail mounting clip kit (8252-0). Models are available with an external 100 to 240VAC power adapter or with a 2-Pin DC terminal connector.
- Warranty
- Limited Warranty
- Lifetime
- Interfaces/Ports
- Total Number of Ports
- 2
- Network (RJ-45)
- Yes
- Number of Network (RJ-45) Ports
- 1
- Media & Performance
- Media Type Supported
- Twisted Pair
- Maximum Distance Supported
- 1 km
- Network & Communication
- Ethernet Technology
- Ethernet
- Network Technology
- 10Base-T
- 10Base-T1L
- Power Description
- Power Source
- AC Adapter
- Physical Characteristics
- Form Factor
- DIN Rail Mountable
- Wall Mountable
- Height
- 0.8"
- Width
- 2.1"
- Depth
- 2.5"
- Weight (Approximate)
- 12 oz
- Miscellaneous
- Package Contents
- OmniConverter 10T/T1L 10Base-T to 10Base-T1L Media Converter RJ-45 T1L 2-Pin Terminal
- US Power Supply
- User Manual
- Application/Usage
- Industrial
- Camera
- Network
- Field Transmitter
- Certifications & Standards
Safety:
- UL 62368-1
- UL 60950-1
- IEC 62368-1
- IEC 60950-1
- CUL CSA C22.2 No. 60950-1
- EN 60950-1:2006
- CE Mark
- UKCA
EMI:
- FCC 47CFR, Part 15 Class A
- AS/NZS 3548
- AS/NZS 4417.1 and AS/NZS 4417.2
- ICES-003 Issue 3
- EN 55032/CISPR 22 and EN55035
- EN61000-3-2
- VCCI V3/2001.04 (CISPR 22A:1997, Class A)
EMC:
- IEC/EN61000-4-2
- IEC/EN61000-4-3
- IEC/EN61000-4-4
- IEC/EN61000-4-5
- IEC/EN61000-4-6
- IEC/EN61000-4-8
- IEC/EN61000-4-11
ACT:
- BAA
- NDAA
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
- Waste Electrical and Electronic Equipment Directive (WEEE)
- Country of Origin
- United States
- TAA Compliant
- Yes
