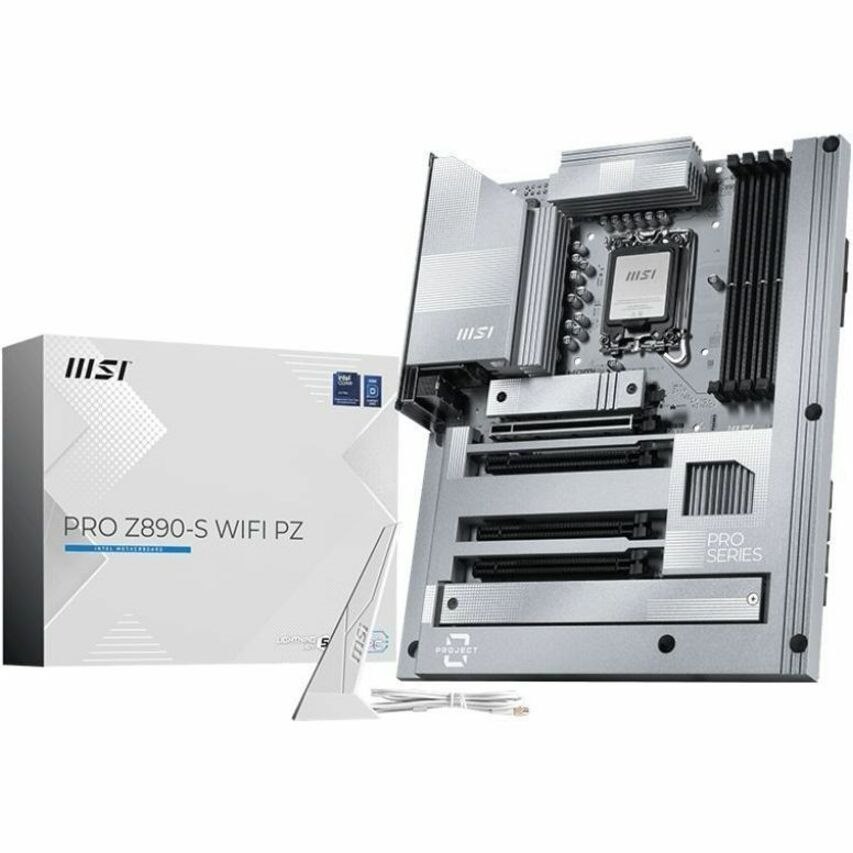

PRO Z890-S WIFI PZ
PRO Z890-S WIFI PZ offers a sleek design with a harmonious silver-white color scheme that perfectly matches white PC builds. Its innovative back-connect design reduces the complexity of cable management, resulting in an aesthetically pleasing appearance for the system. It is engineered with many exclusive features of MSI, a true Wi-Fi 7 with EZ Antenna, 2.5G LAN, Thunderbolt 4, PCIe 5.0 M.2, and Supplemental PCIe Power, ready for the Intel®Core™ Ultra processors.
ABSOLUTE SIMPLICITY
PRO Z890-S WIFI PZ moves the power connectors, fan connectors, and other pin headers to the back of the motherboard. This provides a cleaner and neater front view, allowing the motherboard, liquid cooler, and graphics card's aesthetic design to be fully displayed.
BUSINESS ELEGANCE
The PRO Series is tailored to professionals from all walks of life. The lineup features impressive performance and high quality, while aiming to provide users incredible experience. Users who care about productivity and efficiency can definitely count on the MSI PRO Series to assist you with multitasking and increasing efficiency.
MSI motherboards are designed with advanced hardware and technology, well-supporting the demanding computing usage of gaming and AI. Moreover, we also introduce AI to MSI Center and BIOS, making everything more effortless than before.
AI Engine
provides several categories for you to sync the applications you want to perform and automatically optimizing them to create a comfortable environment.
AI LAN MANAGER
optimizes networking performance and minimizes latency, providing a seamless online experience.
Frozr AI Cooling
automatically adjusts fan duty to make sure the system stays in cool, stable and high performance.
AI Boost
is an MSI exclusive feature. It overclocks NPU to improve higher AI performance.
Back-Connect Design
The PRO Z890-S WIFI PZ features a back-connect design, which relocates the motherboard power, CPU power, fan pins, SATA, and other interfaces to the back of the motherboard. This allows for simpler cable management, while also providing a cleaner and more aesthetically pleasing appearance for the system.
- General Information
- Manufacturer
- MSI
- Manufacturer Website Address
- http://www.msi.com
- Brand Name
- MSI
- Product Series
- PRO
- Product Type
- Gaming Desktop Motherboard
- Warranty
- Limited Warranty
- 3 Year
- Additional Warranty Information
3 Year Limited Warranty
- Technical Information
- AI-powered
- Yes
- Processor & Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- Z890
- Total Processor Supported
- 1
- Processor Socket
- Socket LGA-1851
- Processor Supported
- Core Ultra
- Core Ultra 5
- Core Ultra 7
- Core Ultra 9
- Memory
- Number of Memory Slots
- 4
- Memory Form Factor
- DIMM
- UDIMM
- Maximum Memory Supported
- 256 GB
- Memory Technology
- DDR5 SDRAM
- Memory Speed Supported
- 8800 MHz
- 7200 MHz
- 6400 MHz
- 5600 MHz
- 4800 MHz
- I/O Controller
- Controller Type
- Serial ATA/600
- RAID Supported
- Yes
- RAID Levels
- 0
- 1
- 5
- 10
- Video
- Onboard Video
- CPU Dependent Video
- Audio
- Audio Channels
- 7.1
- Network & Communication
- Bluetooth
- Yes
- Bluetooth Standard
- Bluetooth 5.4
- Gigabit Ethernet
- Yes
- 2.5Gigabit Ethernet
- Yes
- Wireless LAN
- Yes
- Wireless LAN Standard
- IEEE 802.11 a/b/g/n/ac/ax/be
- I/O Expansions
- Total Number of Expansion Slots
- 4
- PCI Express Standard
- PCI Express 5.0
- PCI Express 4.0
- PCI Express 3.0
- Total Number of PCI Express Slots
- 4
- Number of PCI Express x16 Slots
- 4
- Interfaces/Ports
- Total Number of USB Ports
- 7
- HDMI
- Yes
- HDMI Version
- 2.1
- DisplayPort
- Yes
- Number of Network (RJ-45) Ports
- 1
- Thunderbolt
- Yes
- Onboard Interfaces
- Number of SATA Interfaces
- 4
- Number of M.2 Interfaces
- 3
- Total Number of Onboard USB Ports
- 7
- Number of Onboard USB 2.0 Ports
- 4
- Physical Characteristics
- Color Family
- Dual Color
- Product Color
- Silver White
- Black
- Form Factor
- ATX
- Width
- 12"
- Depth
- 9.6"
- Weight (Approximate)
- 6 lb
- Miscellaneous
- Package Contents
- PRO Z890-S WIFI PZ Gaming Desktop Motherboard
- Quick Installation Guide
- 2 x SATA Cable
- Cable Stickers
- EZ Wi-FI Antenna
- European Union Regulatory Notice
- EZ M.2 Clip II Remover
- 3 x EZ M.2 Clip II
- 1 to 2 EZ Conn-Cable (V1)
- Brand Compatibility
- Intel
- Energy Star
- Yes
- Country of Origin
- China
- TAA Compliant
- No
- Environmentally Friendly
- Yes
- Environmental Certification
- Electronic Product Environmental Assessment Tool (EPEAT)
- Environmental Compliance
- China Restriction of Hazardous Substances (China RoHS)
- Restriction of Hazardous Substances (RoHS)
- Taiwan Restriction of Hazardous Substances (Taiwan RoHS)
- Waste Electrical and Electronic Equipment Directive (WEEE)
