- General Information
- Manufacturer
- Microchip Technology Inc.
 - Manufacturer Website Address
- http://www.microchip.com
 - Brand Name
- Microchip
 - Product Type
- PoE Injector

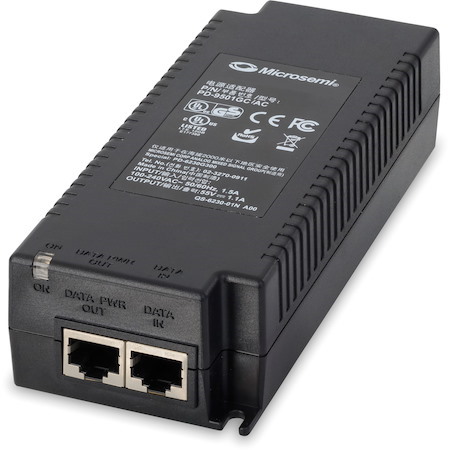

Microchip's PD-9501GC is a single-port solution for remote powering of current as well as emerging high-power applications. The PD-9501GC is designed specifically to power IEEE 802.11n and IEEE 802.3bt access points, Pan-Tilt-Zoom (PTZ) and dome cameras, IP videophones, thin clients and other high-power Ethernet end terminals with 60W of power and it is als backwards compatible and safe to use with any IEEE 802.3af/at terminals such as VoIP phones, IP cameras and wireless LAN access points. It can power both existing 10/100Base-T devices and Gigabit devices such as wireless IEEE 802.11n access points. The PD-9501GC provides power on all 4-pairs while being backwards compatible to IEEE 802.3af and IEEE 802.3at powered devices.
- Warranty
- Limited Warranty
- 1 Year

- Power Description
- Input Voltage
- 120 V AC
 - 230 V AC
 - Maximum Input Current
- 1.50 A
 - Minimum Frequency
- 50 Hz
 - Maximum Frequency
- 60 Hz
 - Maximum Output Power
- 60 W

- Interfaces/Ports
- Input Ports
- 1 x Ethernet
 - Output Ports
- 1 x RJ-45

- Physical Characteristics
- Height
- 1.5"
 - Width
- 2.4"
 - Length
- 5.9"
 - Weight (Approximate)
- 1.10 lb

- Miscellaneous
- Package Contents
- 1-Port, IEEE 802.3bt 60W PoE Midspan
- Power Cord

 - Certifications & Standards
- CE
- IEEE 802.3bt (PoE)

 - Environmentally Friendly
- Yes
 - Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
 - Waste Electrical and Electronic Equipment Directive (WEEE)
 - Registration, Evaluation, Authorization and Restriction of Chemicals (REACH)
 - Country of Origin
- China
