- General Information
- Manufacturer
- Microchip Technology Inc.
- Manufacturer Website Address
- http://www.microchip.com
- Brand Name
- Microchip
- Product Type
- PoE Injector

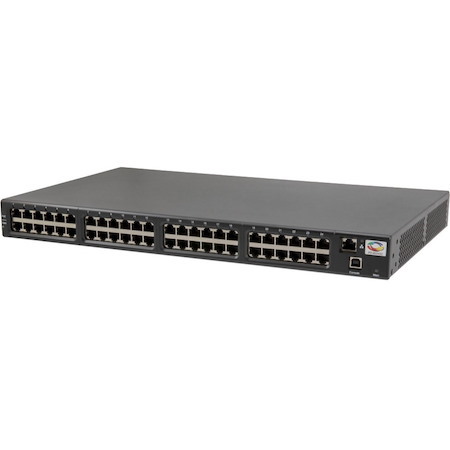

The twenty four ports PoE midspan provides up to 60 Watts of power over Ethernet and offers a IEEE 802.3bt-compliant solution for remote powering of current as well as emerging high power applications. The PD-9524GC is designed specifically to power IEEE 802.11 access points, pan-tilt-zoom (PTZ) and dome cameras, IP videophones, thin clients and other high power Ethernet end terminals with 60W of power.
- Warranty
- Limited Warranty
- Lifetime
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- 55 V DC
- Minimum Frequency
- 50 Hz
- Maximum Frequency
- 60 Hz
- Maximum Output Power
- 60 W
- Interfaces/Ports
- Input Ports
- 24 x 10/100/1000Base-T
- Output Ports
- 24 x Gigabit PoE
- Physical Characteristics
- Form Factor
- Rack Mountable
- Height
- 1.7"
- Width
- 17.2"
- Depth
- 10.7"
- Weight (Approximate)
- 9.25 lb
- Miscellaneous
- Package Contents
- PD-9524GC PoE Injector
- US Power Cord
- Additional Information
- Product Type |60W PoE
- PoE Systems Type | Midspan
- PoE Standard | IEEE 802.3bt
- Power Per Port | 60W
- Operating Environment | Indoor
- Data Rate | 1 Gbps
- Managed | Yes
- Input Power | AC and DC
- Operating Humidity (%) | 10 to 90
- Operating Temperature (°C) | 0 to 40
- Compatibility
- Access Points
- Pan-tilt-zoom (PTZ) and Dome Cameras
- IP Videophones
- Thin Clients
- High Power Ethernet end Terminals
- Certifications & Standards
- IEEE 802.3bt
- IEEE 802.3af
- IEEE 802.3at
- CE
- FCC Part 15, Class B
- EN 55032 Class B (emissions)
- EN 55024 (immunity)
- VCCI
- UL
- EN
- IEC 60950-1 (Ed.2)
- Environmentally Friendly
- Yes
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
- Country of Origin
- China
