- General Information
- Manufacturer
- Microchip Technology Inc.
 - Manufacturer Website Address
- http://www.microchip.com
 - Brand Name
- Microchip
 - Product Type
- PoE Injector

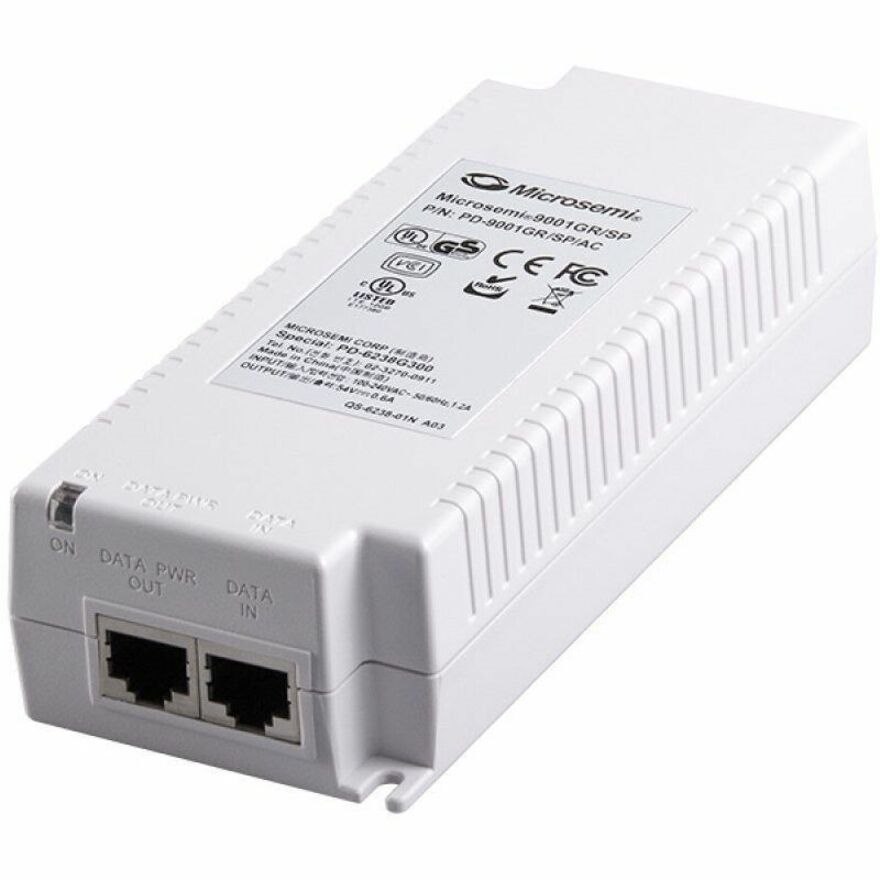

Microchip's PD-9001GR/SP is a single port, high-power solution for remote powering of current and emerging high power applications. The PD-9501GR/SP provides Surge Protection functionality optimal for the installation of outdoor PDs. Generating up to 30 W, the PD-9001GR/SP enables remote power for a new range of applications including 802.11n access points, pan-tiltzoom (PTZ) cameras, and video-phones. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both existing 10/100 Base-T network devices and emerging wireless 1000 Base-T devices such as WiMAX and wireless IEEE 802.11n access points.
- Warranty
- Limited Warranty
- 1 Year

- Technical Information
- Protection Type
- Surge Protection

- Power Description
- Input Voltage
- 120 V AC
 - 230 V AC
 - Maximum Output Voltage
- 55 V DC
 - Maximum Input Current
- 800 mA
 - Maximum Output Power
- 30 W

- Interfaces/Ports
- Input Ports
- 1 x 10/100/1000Base-T
 - Output Ports
- 1 x 10/100/1000Base-T

- Physical Characteristics
- Height
- 1.5"
 - Width
- 2.4"
 - Length
- 5.9"
 - Weight (Approximate)
- 13.40 oz

- Miscellaneous
- Package Contents
- Single Port, High Power Gigabit Midspan, 802.3at Compliant with Surge Protection
- Power Cord

 - Compatibility
- Access Points
- Pan-Tiltzoom (PTZ) Cameras
- Video-Phones
- Network Devices

 - Certifications & Standards
- FCC Part 15, Class B
- EN 55022 Class B (Emissions)
- EN 55024 (Immunity), VCCI
- EN 61000-4-5 (10/700 µsec, 4 KV)
- IEC-61643-21
- GR-1089-CORE
- ITU-T K.45
- UL/cUL Per IEC 60950-1
- CE
- IEEE 802.3at
- IEEE 802.3af

 - Environmentally Friendly
- Yes
 - Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
 - Waste Electrical and Electronic Equipment Directive (WEEE)
 - Country of Origin
- China
