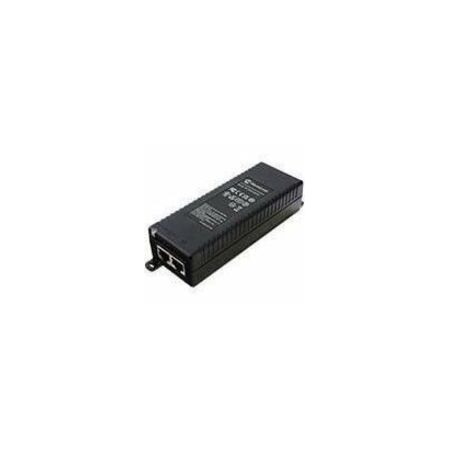

The single port PoE midspan provides up to 30 Watts of power over Ethernet and offers a IEEE 802.3at-compliant solution for remote powering of current and emerging high power applications. The PD-9001GS enables remote power for a new range of applications including 802.11n access points, pan-tilt zoom (PTZ) cameras and other IP terminals. It complies to IEEE 802.3at PoE standard and is backward compatible to IEEE 802.3af. It can power both 10/100Base-T network devices and 1000Base-T devices. The midspan is designed for industrial applications and outdoor applications from temperature point of view.
- General Information
- Manufacturer
- Microchip Technology Inc.
 - Manufacturer Website Address
- http://www.microchip.com
 - Brand Name
- Microchip
 - Product Type
- PoE Injector

- Warranty
- Limited Warranty
- 2 Year

- Power Description
- Input Voltage
- 120 V AC
 - 230 V AC
 - Maximum Output Voltage
- 55 V DC
 - Maximum Input Current
- 670 mA
 - Maximum Output Power
- 30 W

- Interfaces/Ports
- Input Ports
- 1 x RJ-45
 - Output Ports
- 1 x PoE

- Physical Characteristics
- Height
- 1.3"
 - Width
- 2"
 - Length
- 6.3"
 - Weight (Approximate)
- 7.20 oz

- Miscellaneous
- Package Contents
- PD-9001GS/AC 30W PoE Injector
- Power Cord

 - Compatibility
- Compatible Devices: - Access Points
- Pan-tilt Zoom (PTZ) Cameras
- IP Terminals
- IP Camera

 - Certifications & Standards
- IEEE 802.3at
- IEEE 802.3af
- CE
- EMI
- DOE Level VI and VII
- FCC
- UKCA
- FCC Part 15 Class B
- EN 55032 Class B (Emissions)
- EN 55035 (Immunity)
- VCCI
- UL 62368-1
- IEC 62368-1
- EN 62368-1

 - Energy Star
- Yes
 - Environmental Compliance
- Waste Electrical and Electronic Equipment Directive (WEEE)
 - Restriction of Hazardous Substances (RoHS)
 - China Restriction of Hazardous Substances (China RoHS)
 - Country of Origin
- China
