- General Information
- Manufacturer
- Lenovo Group Limited
- Manufacturer Website Address
- http://www.lenovo.com/us/en/
- Brand Name
- Lenovo
- Product Line
- ThinkSystem
- Product Series
- SR630
- Product Type
- Server

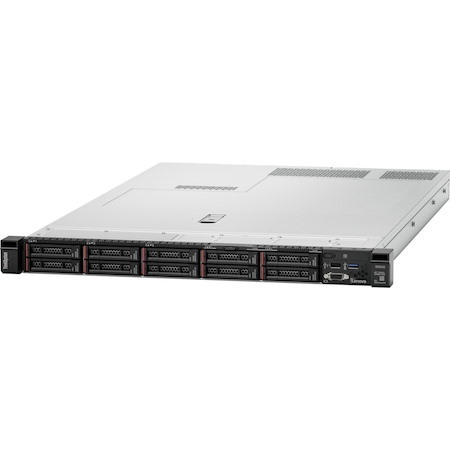

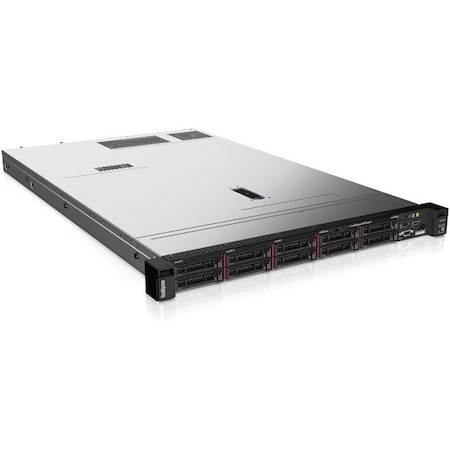

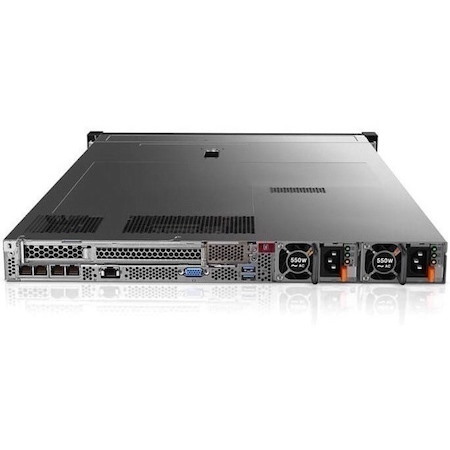

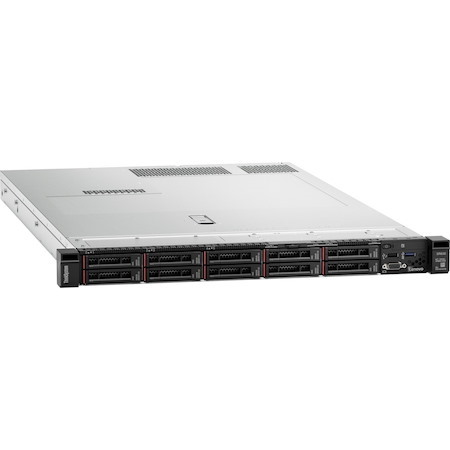

Lenovo ThinkSystem SR630 is an ideal 2-socket 1U rack server for small businesses up to large enterprises that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. The SR630 server is designed to handle a wide range of workloads, such as databases, virtualization and cloud computing, virtual desktop infrastructure (VDI), infrastructure security, systems management, enterprise applications, collaboration/email, streaming media, web, and HPC.
- Warranty
- Limited Warranty
- 3 Year
- Processor
- Number of Processors Supported
- 2
- Number of Processors Installed
- 1
- Processor Manufacturer
- Intel
- Processor Type
- Xeon Silver
- Processor Generation
- 2nd Gen
- Processor Model
- 4216
- Processor Core
- Hexadeca-core (16 Core)
- Processor Speed
- 2.10 GHz
- Cache
- 22 MB
- Chipset
- Chipset Manufacturer
- Intel
- Chipset Model
- C624
- Memory
- Standard Memory
- 32 GB
- Memory Technology
- TruDDR4
- Memory Clock Speed
- 2.93 GHz
- Error Checking
- ECC
- Total Number of Memory Slots
- 24.0
- Number of Occupied Memory Slots
- 1
- Intel Optane Memory Ready
- Yes
- Signal Processing
- Registered (Buffered)
- Storage
- Total Hard Drive Capacity
- No
- Optical Drive Type
- No
- Controllers
- Controller Type
- Serial ATA/600
- Display & Graphics
- Graphics Controller Manufacturer
- Matrox
- Graphics Controller Model
- G200e
- Graphics Memory Capacity
- 16 MB
- Network & Communication
- Ethernet Technology
- Gigabit Ethernet
- Interfaces/Ports
- Total Number of USB Ports
- 4
- Number of USB 2.0 Ports
- 1
- Number of USB 3.0 Ports
- 3
- Network (RJ-45)
- Yes
- VGA
- Yes
- Remote Management
- Yes
- Remote Management Controller
- XClarity Controller (XCC)
- Operating System
- Operating System Supported
- Windows Server 2016
- Windows Server 2019
- Windows Server 2022
- Red Hat Enterprise Linux 7.6
- Red Hat Enterprise Linux 7.7
- Red Hat Enterprise Linux 7.8
- Red Hat Enterprise Linux 7.9
- Red Hat Enterprise Linux 8
- Red Hat Enterprise Linux 8.1
- Red Hat Enterprise Linux 8.2
- Red Hat Enterprise Linux 8.3
- Red Hat Enterprise Linux 8.4
- Red Hat Enterprise Linux 8.5
- SUSE Linux Enterprise Server 12 SP4
- SUSE Linux Enterprise Server 12 SP5
- SuSE Linux Enterprise Server 15
- SUSE Linux Enterprise Server 15 SP1
- SUSE Linux Enterprise Server 15 SP2
- SUSE Linux Enterprise Server 15 SP3
- Operating System
- No
- Power Description
- Input Voltage
- 120 V AC
- 230 V AC
- Number of Power Supplies Supported
- 2
- Number of Power Supplies Installed
- 1
- Plug/Connector Type
- C13/C14
- Maximum Power Supply Wattage
- 750 W
- Hot Swappable Power Supply
- Yes
- Physical Characteristics
- Form Factor
- Rack
- Rack Height
- 1U
- Height
- 1.7"
- Width
- 17.1"
- Depth
- 29.5"
- Weight (Approximate)
- 41.45 lb
- Miscellaneous
- Package Contents
- ThinkSystem SR630 7X02A0GYNA Server
- Slide Rail Kit
- 2.8 m C13-C14 Rack Power Cable
- Security Features
- Power-on password
- Administrator's password
- Secure firmware updates
- Onboard Trusted Platform Module (TPM)
- Self-encrypting drives (SEDs) with support for enterprise key managers
- Energy Star
- Yes
- Environmentally Friendly
- Yes
- Energy Efficiency Certification
- ENERGY STAR 3.0
- Environmental Compliance
- Restriction of Hazardous Substances (RoHS)
